SMD LED is a type of LED package designed to be mounted directly onto the surface of a printed circuit board (PCB).

Here’s the simple truth: SMD LEDs changed the game by skipping drilled holes.

Unlike older LED packaging, where leads are required to be inserted into drilled holes on a PCB, SMDs are made to be mounted onto contact points and placed directly onto the board’s surface.

Yes, the magic is in the packaging. A typical SMD LED package is a sophisticated multi-material system:

This tiny semiconductor chip serves as a device’s primary component. This chip is made through:

• Indium gallium nitride produces green, blue, and white light.
• Aluminum gallium indium phosphide that produces yellow, red, and amber light.

It converts electricity directly into photons of light via electroluminescence.

This interior structure is composed of copper or copper alloy. It has two important functions:

• Provides the electricity connection to the chip.
• Serves as the primary path for thermal management.

Fine wires are required to complete the circuit board. These bond wires are typically made of gold and used to connect the upper part of the LED chip to the lead frame.

This dome isn’t just for protection. It’s a precision optical element, engineered to shape the raw light into a specific beam angle. The industry’s move from epoxy to silicone was a quiet game-changer, as silicones can handle the heat without yellowing and failing over time.

To create white light, a blue LED chip is coated with a phosphor layer. When the blue light excites this phosphor, it down-converts the energy to emit a broad spectrum of yellow light. The combination of the remaining blue and the emitted yellow light is perceived by the human eye as white. The exact blend of phosphors determines the Correlated Color Temperature (CCT).

Why do engineers and designers swear by SMD LEDs? Because their features unlock both efficiency and performance.

Because SMD LEDs are put directly onto the PCB board, their design requires fewer components. This reduces the overall cost and enables mass production.

They are designed in smaller sizes, which allows multiple LED chips to be mounted closely onto a single circuit board. Hence, they provide the high density that is needed for high-resolution displays and intense light sources.

A plastic lens is integrated directly into the package, covering the LED chip. This molded lens protects the LED chip from any physical damage, hence ensuring reliability and durability.

SMD LEDs are engineered to provide a viewing angle across 120-170 degrees, hence providing a broader beam pattern view. This enables a uniform illumination that does not require a need of any additional diffusers in high-end applications.

These LEDs can be configured with three or more semiconductor LED chips into a single package. This makes it possible to blend colors, which is very popular for decorative purposes.

They are made on a single solid chip with no moving parts, which makes them resistant to any external shock and vibration.

If you’re wondering where these LEDs shine—literally—it’s in almost every industry you can think of.

SMD LEDs are frequently found in everyday consumer devices, including:

Smart Phones for:

• Status notification lights.
• Flashlights.
• Backlighting displays.

Televisions & Monitors: From the backlight for LCD screens in high-end QLED models to low-cost TVs.

Wearables: Because SMD LED packages are tiny, they are utilized in;

• Indicator lights.
• Display backlighting in smartwatches.
• fitness trackers.

Gaming: Used in RGB lighting for:

• Keyboards.
• Mice.
• Consoles.
• PC components for aesthetic customization.

Horticulture: Some of the SMDs are customized and designed to produce the light spectra that are needed for plantations in indoor farms.

Medical:

• Surgical headlights.
• Examination lights
• Phototherapy devices for treating jaundice in newborns.

UV Curing: Ultraviolet (UV) SMD LEDs are used in industrial printing and manufacturing processes to cure:

• Inks
• Resins
• Adhesives

IR Illumination: Infrared (IR) SMD LEDs provide invisible light for:

• Night-vision security cameras.
• Remote controls.

The numbers on an SMD LED aren’t random—they’re the key to identifying its size and purpose.

SMD LEDs encompass a vast range of categories based on different package sizes, suitable for almost every application. These packages are shown by a four-digit number code that represents the length and width of LEDs.

Most SMD LEDs are named by their dimensions in millimeters. For example:

• 3528: This shows that the length of the package is 3.5mm and the width is 2.8mm.
• 5050: This shows that the package shape is square, measuring the same size on both length and width on all four sides.
• 2016: The LED package is a tiny rectangle that is 1.6 millimeters wide and 2.0 millimeters long.

This is the most common way to identify and categorize them.

Not all SMD LEDs are created equal. Each category is designed for a specific lighting challenge. Besides LED packages, SMD LEDs are divided into several categories on the basis of physical design and how they emit light.

Standard LED lamps are the most common types of SMD LEDs that are used for basic lighting purposes. Their body is made up of a built-in lens that lets the light pass upwards. An LED chip is mounted in a PLCC package, “The plastic leaded chip carrier”. This plastic body acts as a protective housing and contains a built-in lens for lighting.

The direction of a light is at the top view that is upward. This is designed to be placed flat on the PCB board, thus viewed from above.

Common Sizes & Types:

• 0201/0402/0603: Their extremely small sizes require precise manufacturing, making them best suited for status lights in phones and wearables.
• 0805/1206: Best for General-purpose PCB indicator lights. Since it is easy to handle, great for prototypes and basic status indicators.
• 3528: It is an older, widely available standard for simple applications used for Lower-cost LED strips & basic lighting.
• 5050: Contains 3 chips (red, green, blue) in one package for multi-color. It is Best for RGB color-changing strips.
• 5630: Higher power; good for task and accent lighting. Hence, it is best for bright, single-color strips & lighting.
• 5730: Best For: High-efficiency bright lighting. Improved version of the 5630; offers better lumens per watt.

Side View LEDs, as the name indicates, are designed in such a way that they emit light in a parallel direction to the PCB surface. The LED chip is placed vertically on the circuit board and and the lens has been built to direct light out of the side.

Direction of Light:

• 90 degrees from the board (side-view).
• Perfect for shining light into the edge of a light guide panel.

Common Sizes & Types:

• Standard Side-View: Very low profile (e.g., 1.0mm height). Sizes like 1506 or custom codes.

Used For:

• Backlighting LCD and TFT displays in smartphones.
• Calculators.
• Car dashboards.
• Consumer electronics.

These are designed to handle much more electrical current and produce significantly more light (and heat). They require a metal-core PCB and often a heatsink. These LED chips are bare and placed on the highly efficient thermal substrate to dissipate the heat quickly.

Direction of Light: Top-view (but requires external optics like lenses or reflectors).

Common Types:

High-Power SMD (e.g., 2835, 3030, 3535)

• A larger, single white chip LED. Often has a large thermal pad on the bottom.
• The efficient, reliable workhorse. Balances high output with excellent thermal management.
• Used for LED bulbs, downlights, panels, streetlights, and automotive lighting.

COB (Chip-on-Board)

• A single, uniform rectangular or circular module. Appears as a flat, yellow area of light.
• Extremely high intensity from a single source. Creates a uniform beam with no multiple shadows.
• Used for Floodlights, high-bay lights, automotive headlights, and grow lights.

MCOB (Multiple Chips-on-Board)

• Similar to COB, but chips are often arranged in a pattern across a larger surface.
• Even better heat dissipation and light distribution than standard COB, reducing glare.
• High-quality bulb replacements, area lighting, where smooth light is critical.

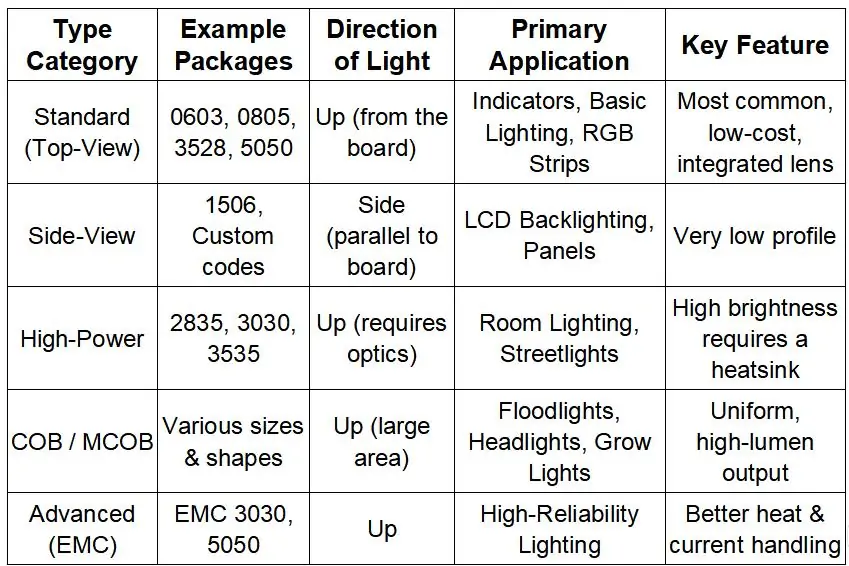

Summary Table for Quick Comparison

Choosing the right SMD LED is just like spending your money on a correct purchase. However, it depends on the following factors to consider according to your project’s needs:

• Brightness (Luminous Intensity): The brightness of the SMD’s LEDs decides you to choose between a simple indicator or a light source.
• Viewing Angle: Considering the viewing angle helps you to determine whether the light needs to be focused in a beam (narrow angle) or spread out (wide angle).
• Color Range: What color does your project require, RGB or advanced UV, or IR?
• Size / Footprint: How much space is on your circuit board?
• Power Requirements: You should consider the power requirements while choosing SMD LED’s such as a small battery, or does it need a dedicated driver and heatsink.

Looking for a trusted supplier? Eagerledscreen provides a variety of SMD LED packages. They are a leading manufacturer of LEDs in China with over 15 years of expertise. Just explore their products and find out the appropriate one. You can also get consultation and quotes free of cost from eager experts. So don’t be confused, get a free consultation right now!

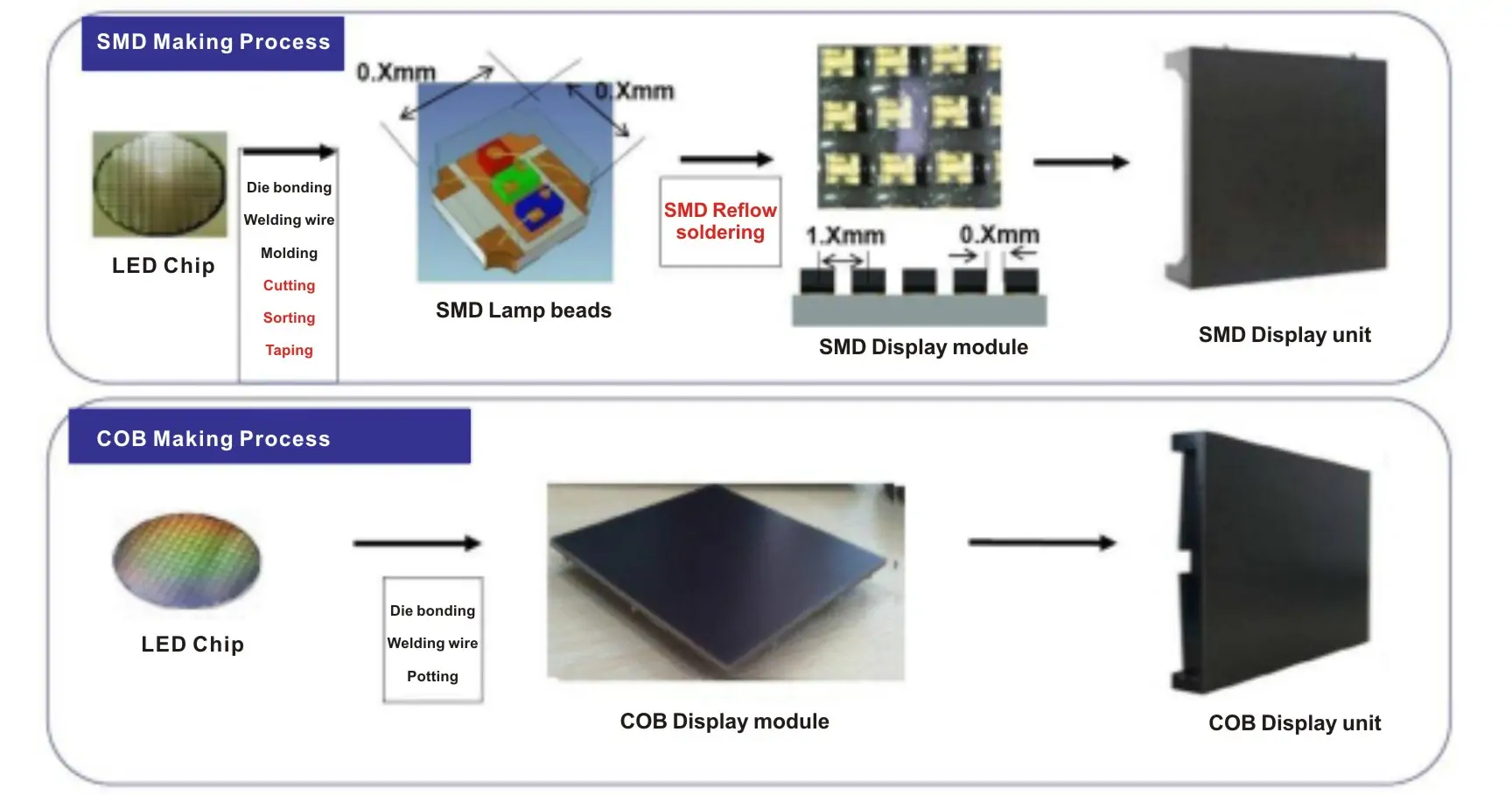

SMD (Surface-Mount Device) LEDs dominate the display market due to their superior design, manufacturing efficiency, and performance. Unlike older technologies, these tiny LEDs are soldered directly onto circuit boards, enabling smaller sizes and a drastically reduced pixel pitch. This allows for high-resolution, detailed images essential for modern HD and 4K screens.

A key advantage is their wide viewing angle (up to 160 degrees), ensuring consistent color and brightness even from side views, which is critical for televisions and indoor signage. The red, green, and blue chips are housed together in a single package, enabling perfect color mixing and superior image uniformity.

Furthermore, SMD LEDs are built for automated manufacturing. They are placed by high-speed machines, making production faster, more precise, and more cost-effective than with manual assembly. This automation also enhances reliability, as the lead-free design is less prone to damage from vibration.

Finally, their compact, surface-mount nature allows for incredibly slim and lightweight displays, forming the basis for sleek flat-panel TVs and digital signs. Combined with excellent energy efficiency and heat management, which extend their lifespan, SMD technology offers the ideal balance of performance, affordability, and reliability, solidifying its market dominance.

Compact, powerful, and versatile—they’re not just an option, they’re the future.

SMD LEDs are illuminating the future of LED display technology. From exterior lightning to the phone screens, it’s ideal for diverse applications due to their smaller sizes and high efficiency. Their advantages are the true reflection of their success in the modern and competitive display industry, but be careful about their handling. Make sure to gain complete knowledge of each SMD LED package so that you can make an informed decision.
