Novastar TCC160 Sending Card: Full Feature Review

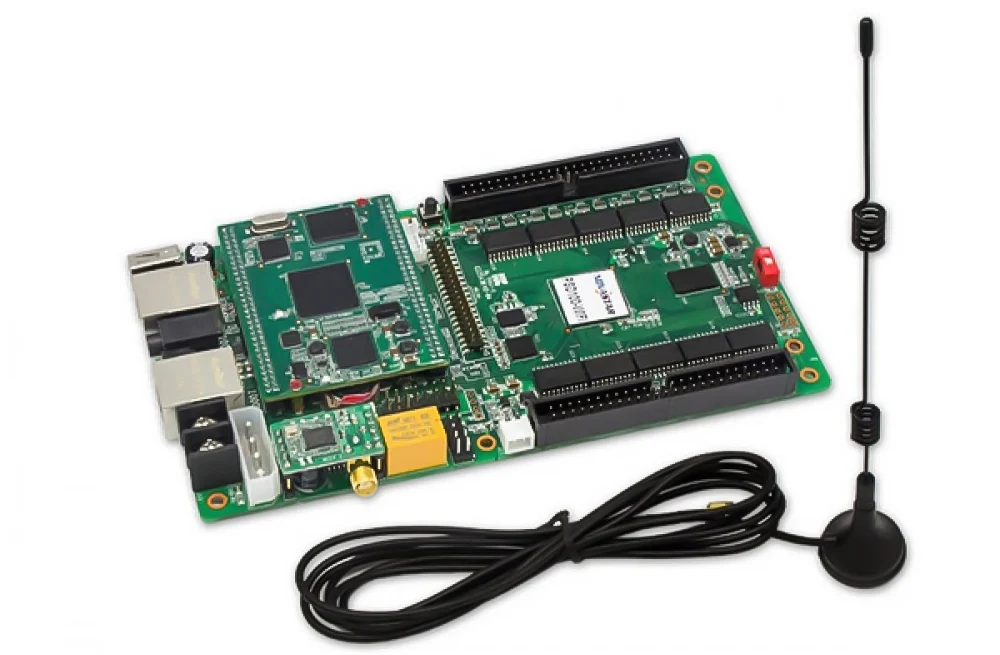

The Novastar TCC160 is an asynchronous full-color LED display control card that integrates sending and receiving capabilities into a single compact unit. This design simplifies installation and reduces cabling complexity, making it ideal for small-pixel applications such as storefront displays, vehicle-mounted screens, community billboards, and lamp-post advertisements.

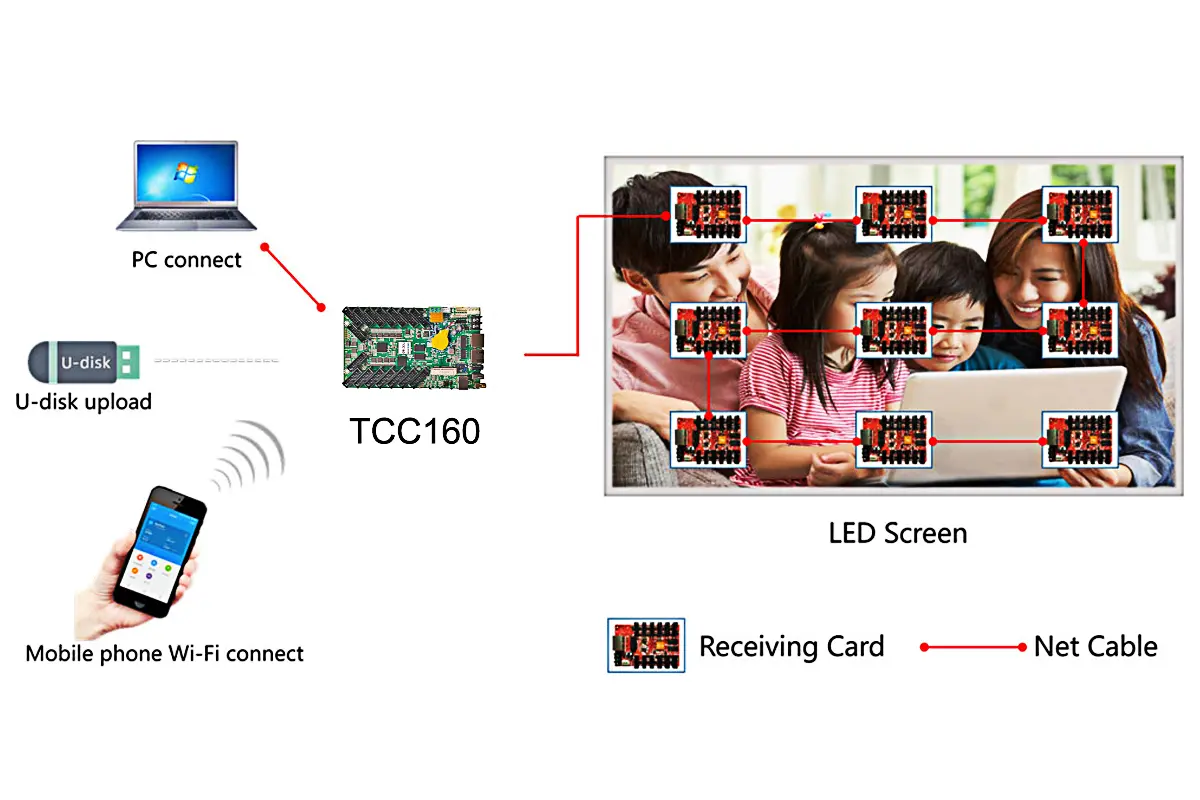

What sets the TCC160 apart is its ability to enable remote content publishing and screen management through cloud-based platforms. Users can publish content, monitor screen performance, and troubleshoot issues from anywhere using Internet-connected devices like computers, tablets, or smartphones. This flexibility is particularly valuable in today’s fast-paced digital environment, where real-time updates and remote accessibility are critical.

Moreover, the TCC160 supports advanced functionalities like Wi-Fi AP/STA modes, GPS time synchronization, and 4G module compatibility (optional), ensuring adaptability to various operational needs. With certifications such as CE, FCC, and RoHS, the TCC160 guarantees compliance with international safety and environmental standards, making it a reliable choice for global markets.

In short, the Novastar TCC160 matters because it bridges the gap between high-performance LED control and ease of use, empowering businesses to create dynamic, visually stunning displays without compromising on functionality or reliability.

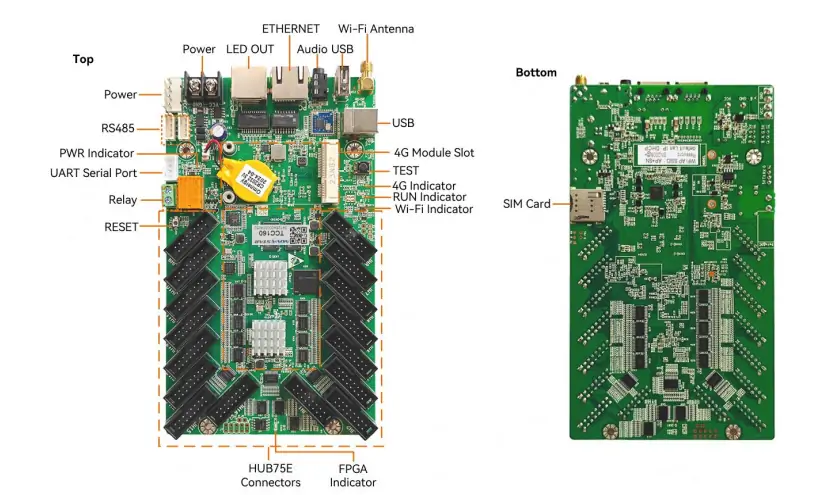

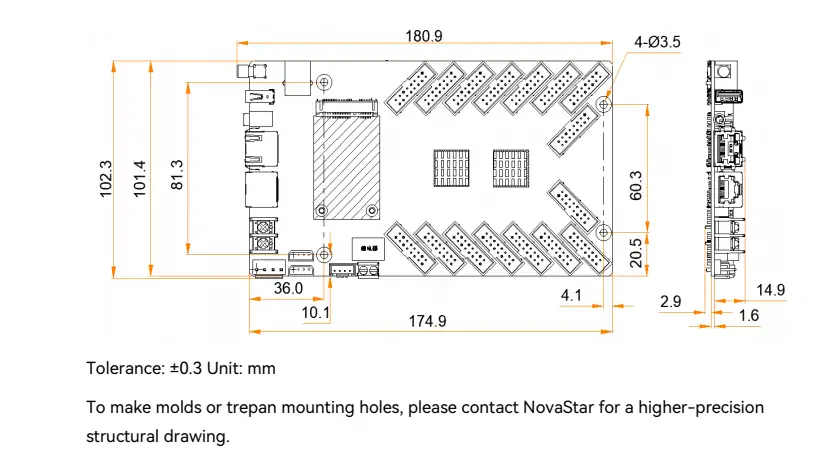

The TCC160 boasts a thoughtfully designed hardware structure optimized for efficiency and durability. Its compact dimensions (180.9 mm × 102.3 mm × 19.4 mm) and lightweight build (149.6 g) make it easy to install in tight spaces while maintaining robust performance.

Key Hardware Components:

• Power Input: Operates on DC 5V–12V, with a maximum power consumption of 12W.
• 16 HUB75E Connectors: Facilitate communication with LED modules, supporting up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups).
• LED OUT Port: A Gigabit Ethernet port for cascading receiving cards and connecting multifunctional accessories.
• ETHERNET Port: A Fast Ethernet port for network connectivity or direct connection to a control computer.
• Audio Output: A 3.5mm stereo audio jack for enhanced multimedia experiences.
• USB Ports:
• • Type A (USB 2.0): For firmware upgrades, USB playback, and storage expansion (up to 128GB).
  • Type B: For content publishing and screen control via a connected computer.
• Wi-Fi Antenna Connector: Supports 2.4GHz Wi-Fi for wireless networking.
• SIM Card Slot: Compatible with optional 4G modules for cellular connectivity.
• RS485 Ports: Enable integration with sensors (e.g., light, temperature, humidity) for additional functionality.

Indicators and Buttons:

The TCC160 includes intuitive indicators for monitoring system status:

• PWR Indicator: Red light indicates proper power supply.
• RUN Indicator: Green flashing light confirms normal system operation.
• WiFi Indicator: Shows Wi-Fi status (on/off/connected).
• RESET Button: Allows factory reset when pressed for 5 seconds.

This streamlined hardware design not only saves space but also enhances reliability, making the TCC160 suitable for both indoor and outdoor applications.

The Novastar TCC160 is packed with features that elevate it above other LED control cards in its class. Here’s a closer look at what makes it truly exceptional:

• Maximum pixel capacity per card: 512×512@60Hz (PWM driver ICs) or 512×384@60Hz (general driver ICs).
• Cascaded capacity: Up to 650,000 pixels per Ethernet port.
• Ultra-long screens: Supports widths up to 8192 pixels and heights up to 2048 pixels.

Equipped with a quad-core 1.4GHz industrial-grade processor, the TCC160 delivers flawless video playback:

• Hardware decoding of 4K videos.
• Supports playback of 1x 4K, 3x 1080p, 8x 720p, 10x 480p, or 16x 360p videos simultaneously.
• Compatible with mainstream codecs like H.265, H.264, MPEG-4, and VP9.

• Dual Wi-Fi modes (AP+STA): Enables simultaneous hotspot creation and network bridging.
• Optional 4G module support: Ideal for remote installations without wired internet access.
• GPS positioning and time synchronization: Enhances accuracy for time-sensitive applications.

• 18bit+ Grayscale: Improves image smoothness by quadrupling grayscale levels.
• Individual Gamma Adjustment: Fine-tunes red, green, and blue gamma values for precise color reproduction.
• Color Gamut Support: Includes Rec.709, DCI-P3, and Rec.2020 standards for vibrant, lifelike visuals.

• Dual Firmware Backup: Prevents system crashes during updates.
• Real-Time Monitoring: Tracks temperature, voltage, and network errors for proactive troubleshooting.
• Bit Error Detection: Identifies and logs erroneous packets to ensure stable communication.

These features collectively position the TCC160 as a versatile and future-proof solution for modern LED display requirements.

To fully appreciate the TCC160’s capabilities, let’s delve into its technical specifications:

• Input Voltage: DC 5V–12V
• Maximum Power Consumption: 12W

• RAM: 2GB
• Internal Storage: 32GB

• Operating Temperature: -40°C to +80°C
• Humidity Range: 0% RH to 80% RH (non-condensing)

• Image Formats: JPEG, BMP, GIF, PNG, WEBP
• Video Codecs: H.265, H.264, MPEG-4, VP9, MJPEG, AVS2, H.263, VP8, MPEG-2, MPEG-1, VC-1, CAVS
• Maximum Resolution: 4096×2304 pixels

• Product Dimensions: 180.9 mm × 102.3 mm × 19.4 mm
• Net Weight: 149.6g
• Gross Weight (Packaging): 348.6g

• 90° Image Rotation (0°/90°/180°/270°)
• Low Latency Mode (1 frame delay with compatible driver ICs)
• Relay Support (Maximum DC 30V, 3A)

These specs highlight the TCC160’s versatility and adaptability across a wide range of scenarios, from simple storefront displays to complex multi-screen setups.

While the exact price of the Novastar TCC160 may vary depending on region and supplier, its value proposition is undeniable. For integrators seeking a cost-effective yet feature-rich solution, the TCC160 offers unmatched ROI due to its:

• Compact Design: Saves space and reduces installation costs.
• Robust Performance: Ensures long-term reliability and minimal downtime.
• Versatile Applications: Suitable for diverse environments, from retail to public spaces.

When compared to similar products in the market, the TCC160 stands out for its balance of affordability and advanced functionality. Its dual firmware backup, real-time monitoring, and extensive media decoding support further enhance its appeal, making it a worthwhile investment for businesses aiming to stay ahead in the competitive LED display industry.

The Novastar TCC160 represents a significant leap forward in LED display control technology. Its combination of powerful hardware, advanced features, and user-friendly design makes it an excellent choice for integrators and end-users alike. Whether you’re managing a small storefront display or orchestrating a large-scale multimedia installation, the TCC160 delivers unparalleled performance and reliability.

With its competitive pricing, robust feature set, and adherence to international standards, the TCC160 is poised to become a go-to solution for modern LED display projects. If you’re looking to elevate your LED display game, the Novastar TCC160 is undoubtedly worth considering.

For more information or to place an order, reach out to authorized distributors or visit NovaStar’s official website. Your next great LED project starts here!
