500x1000mm Rental LED Display - EA1000C6

EA1000C6 Indoor and Outdoor Rental LED Display

The main features of 500×1000mm EA1000C6 series LED rental screen are as follows:

✔ 500x1000mm die-cast aluminum cabinet
✔ 12mm stainless-steel quick locks
✔ Corner and base impact protection
✔ 3840Hz high refresh rate
✔ Positioning beads for fast alignment
✔ Curved and EA500C6 mixed splicing
✔ IP65 front and IP54 rear protection
✔ Over 1200KGF cabinet tensile strength
✔ 140° horizontal and vertical viewing angles

EA1000C6 Indoor&Outdoor Rental LED Display

EA1000C6 rental LED screen features a convenient quick-lock design to allow you to make a curved installation. The LED cabinet is made of sturdy die-cast aluminum and all screws and quick locks are made of stainless steel, which improves overall robustness and durability.

Die-Cast Aluminum Rental LED Cabinet

The EA1000C6 uses a durable die-cast aluminum rental LED cabinet. Its aluminum handles, anti-collision base and stainless-steel fasteners help protect the LED modules during transportation, installation and repeated event use.

Detailed Design of EA1000C6 - EagerLED | Leading LED Screen Supplier - EagerLED | Leading LED Screen Supplier

Installation-Friendly Cabinet Details

Large positioning beads help align each 500x1000mm LED rental cabinet during installation. Silicone-filled aluminum handles improve grip and handling comfort, while the integrated test button allows technicians to check the cabinet quickly.

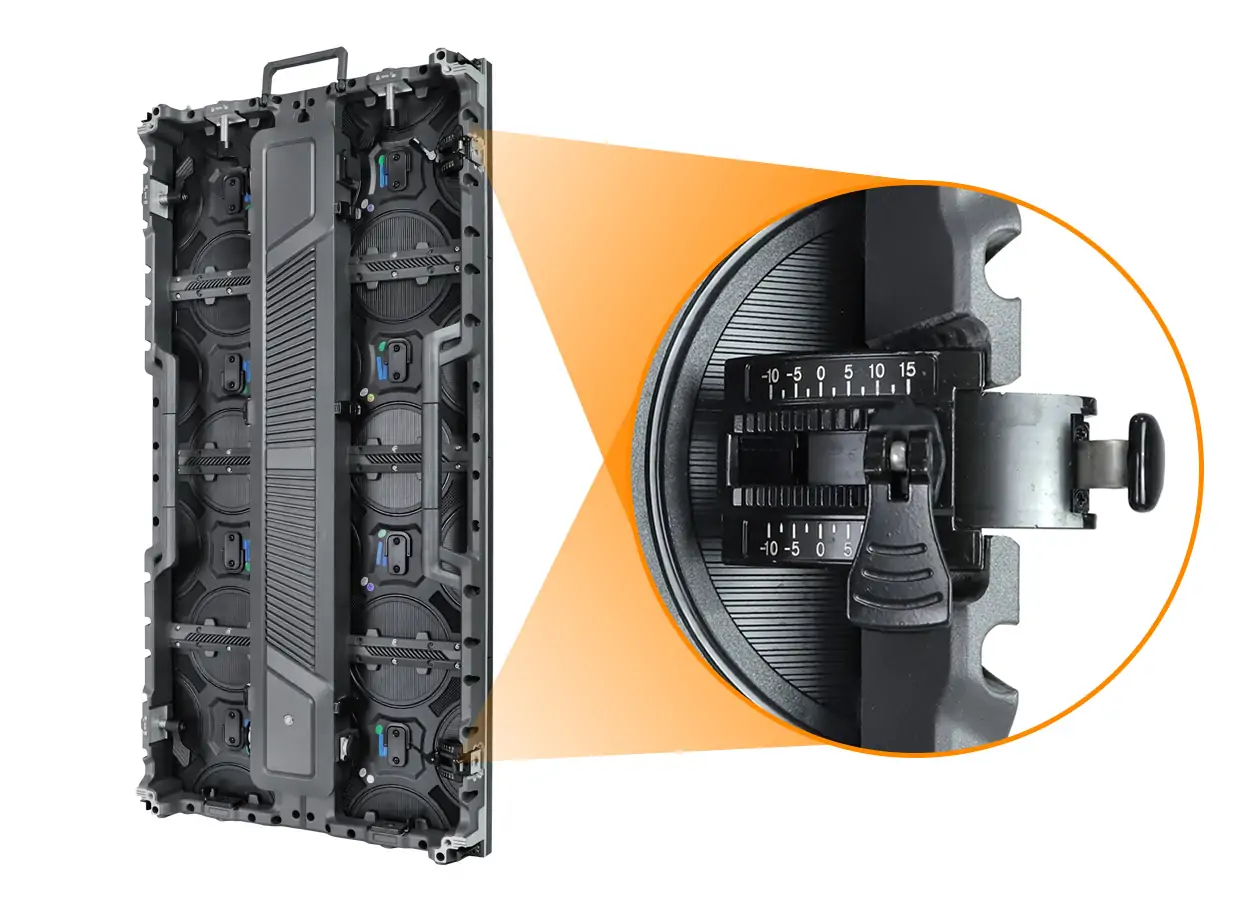

Quick-Lock Rental LED Screen Design

The EA1000C6 quick-lock rental LED screen uses 12mm stainless-steel locks on the top and side of the cabinet. This design speeds up assembly and helps maintain consistent alignment between adjoining cabinets.

Efficient Heat Dissipation and Cabinet Strength

The power supply is positioned close to the ventilated rear cover to support efficient heat dissipation. The die-cast aluminum cabinet is designed to resist deformation during repeated installation and transportation.

Corner Protection for Rental LED Modules

Corner protectors help prevent damage to the LED modules during transportation, installation and maintenance. Together with the anti-collision base, they provide additional protection for frequently handled rental LED cabinets.

Curved Rental LED Display Installation

The EA1000C6 curved rental LED display supports both concave and convex configurations. This allows event organizers and stage designers to create flat or curved LED walls for different venue layouts.

EA1000C6 and EA500C6 Mixed Splicing

EA1000C6 500x1000mm cabinets can be combined vertically with EA500C6 500x500mm cabinets. This mixed-splicing capability provides greater flexibility when configuring rental LED screens for stages and events.

3840Hz High-Refresh Rental LED Display

The EA1000C6 provides a refresh rate of at least 3840Hz, 14-bit grayscale and model-dependent brightness levels. These specifications support smooth video playback and clearer on-camera performance at concerts, exhibitions and broadcast events.

Outdoor Rental LED Display Protection

Outdoor EA1000C6 models provide IP65 protection on the front and IP54 protection on the rear. This helps protect the rental LED display from dust and moisture during suitable outdoor event applications. Indoor models are rated IP31.

140° Viewing Angle

The EA1000C6 provides horizontal and vertical viewing angles of up to 140°. This gives audiences a clear view of the rental LED display from a wider range of positions around the venue.

Rental LED Screen for Events and Stages

EA1000C6 rental LED screen is suitable for concerts, stage productions, exhibitions, corporate events, broadcast environments, sports venues, commercial displays and religious venues. Its quick-lock cabinet and mixed-splicing support make it suitable for repeated event installation.
