Is Novastar A5s Plus Worth It? Full Receiver Review

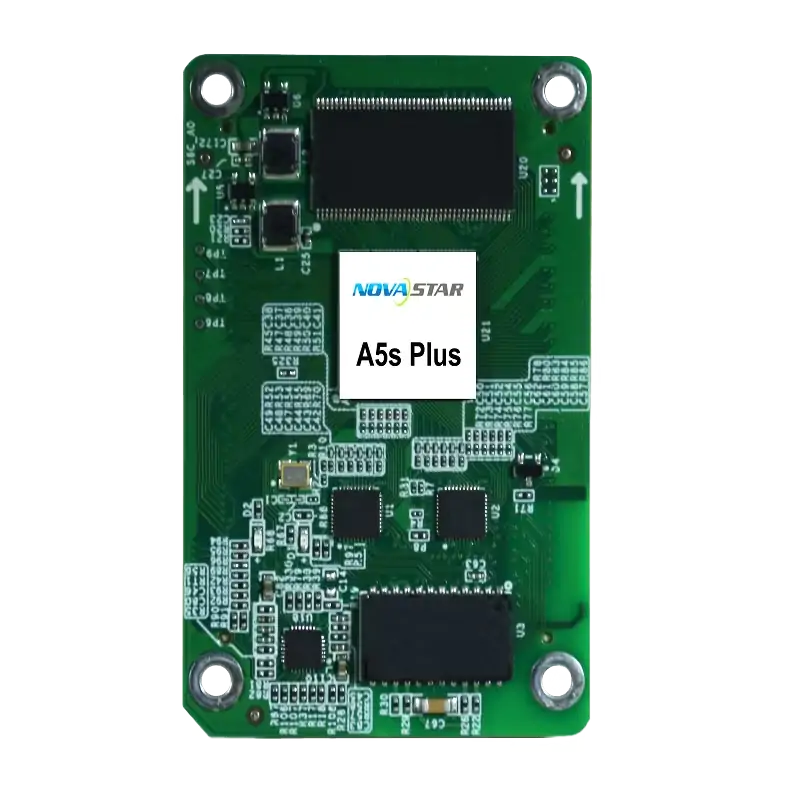

Novastar A5s Plus Receiving Card is a versatile and advanced LED display control solution developed by NovaStar. Designed for HD LED screens, this receiving card supports a wide range of pixel configurations and delivers exceptional image quality with minimal latency. Whether you’re managing indoor or outdoor displays, the A5s Plus ensures seamless communication, robust performance, and enhanced visual effects.

Key highlights of the A5s Plus LED Receiving Card include:

• Support for resolutions up to 512×384@60Hz for PWM driver ICs (8-bit video sources).
• Advanced calibration tools like Pixel Level Brightness and Chroma Calibration.
• Compatibility with multi-batch adjustment, enabling uniform brightness across modules or cabinets.
• Built-in features such as low latency mode and 90° image rotation.

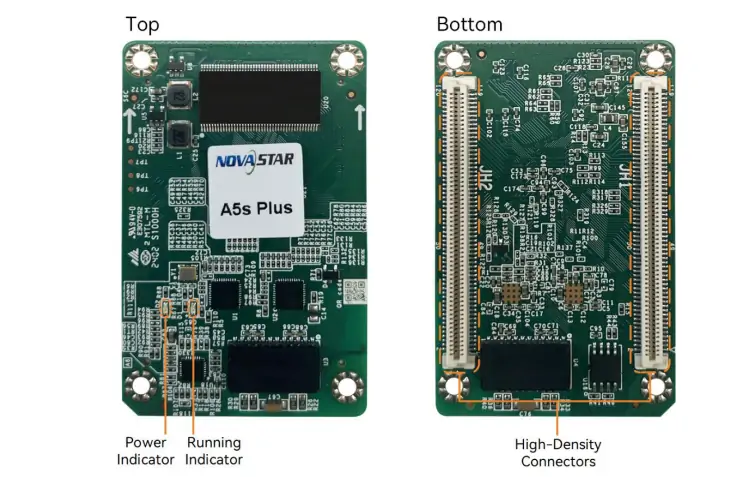

With its compact design and high-density connectors, the A5s Plus minimizes dust and vibration effects, ensuring stable operation in various environments. Its EMC Class B compliance further enhances electromagnetic compatibility, making it suitable for demanding on-site setups.

The A5s Plus Novastar Receiving Card boasts a plethora of features that set it apart from other receiving cards in the market. Let’s explore some of its standout capabilities:

One of the most significant advantages of the A5s Plus is its ability to support standard color gamuts such as Rec.709, DCI-P3, and Rec.2020, along with custom color options. This feature enables precise color reproduction, ensuring vibrant and accurate visuals on your LED screen.

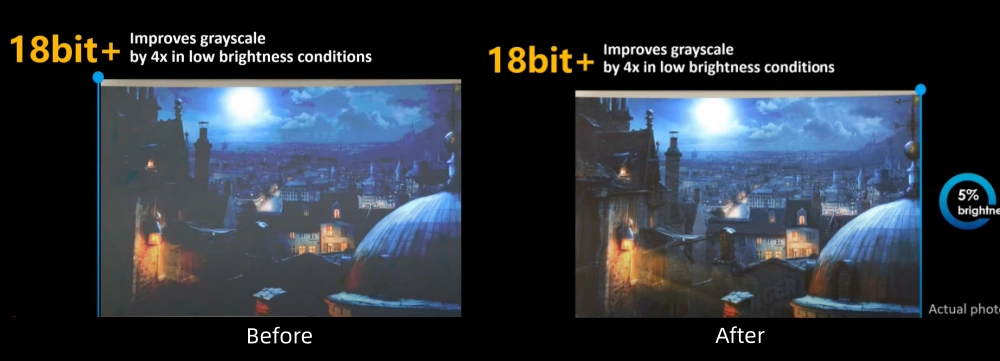

The A5s Plus LED Receiving Card improves grayscale levels by four times compared to traditional systems. This enhancement prevents grayscale loss at low brightness settings, resulting in smoother images and finer details.

Working seamlessly with NovaStar’s calibration system, the A5s Plus allows for pixel-level brightness and chroma calibration. This feature eliminates discrepancies between pixels, achieving unparalleled consistency in brightness and color accuracy.

Splicing modules or cabinets often leads to uneven brightness levels. The A5s Plus addresses this issue with its quick adjustment feature, which corrects dark or bright lines instantly, enhancing the overall visual experience.

For applications requiring real-time performance, the A5s Plus reduces video source latency to just 1 frame when using PWM driver ICs. This feature is particularly beneficial for live events, gaming displays, and interactive installations.

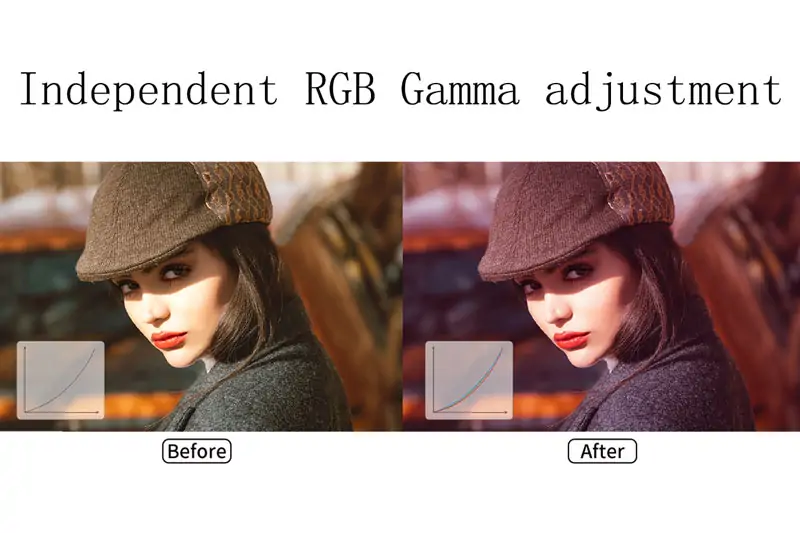

The A5s Plus supports individual gamma adjustments for red, green, and blue channels. When paired with NovaLCT software, this feature ensures uniformity under low grayscale conditions and minimizes white balance offsets, delivering lifelike images.

The A5s Plus integrates with smart modules to offer advanced functionalities like module ID management, storage of calibration coefficients, temperature monitoring, and error detection. These features simplify maintenance and improve system reliability.

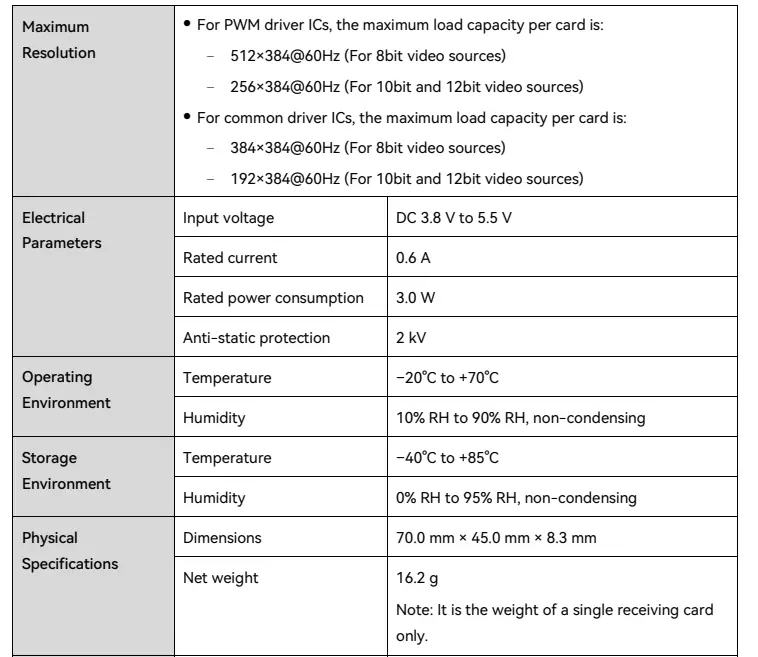

To better understand the technical prowess of the Novastar A5s Plus, let’s break down its key specifications:

• For PWM driver ICs:
  • 512×384@60Hz (8-bit video sources)
  • 256×384@60Hz (10-bit and 12-bit video sources)
• For common driver ICs:
  • 384×384@60Hz (8-bit video sources)
  • 192×384@60Hz (10-bit and 12-bit video sources)

• Input Voltage: DC 3.8 V to 5.5 V
• Rated Current: 0.6 A
• Power Consumption: 3.0 W
• Anti-static Protection: 2 kV

• Dimensions: 0 mm × 45.0 mm × 8.3 mm
• Net Weight: 2 g

• Operating Temperature: –20°C to +70°C
• Storage Temperature: –40°C to +85°C
• Humidity: 10% RH to 90% RH (non-condensing)

• RoHS Compliant
• EMC Class B Certified

These specifications underscore the A5s Plus’s adaptability and reliability in diverse environments, from retail spaces to large-scale outdoor displays.

Setting up the Novastar A5s Plus Receiving Card is straightforward, thanks to its user-friendly design and comprehensive documentation. Here’s a step-by-step guide to get you started:

1. Securely hold the A5s Plus from the sides near the center.
2. Press it firmly into the HUB board until the high-density connectors fit snugly together.
3. Ensure proper grounding by connecting the mounting holes to the chassis ground.

1. Download the latest firmware from NovaStar’s official website.
2. Use NovaLCT software to upload the firmware to the receiving card.
3. Verify that all settings match your specific application requirements.

1. Connect the A5s Plus to NovaStar’s calibration system.
2. Perform pixel-level brightness and chroma calibration.
3. Save the calibration coefficients for future use.

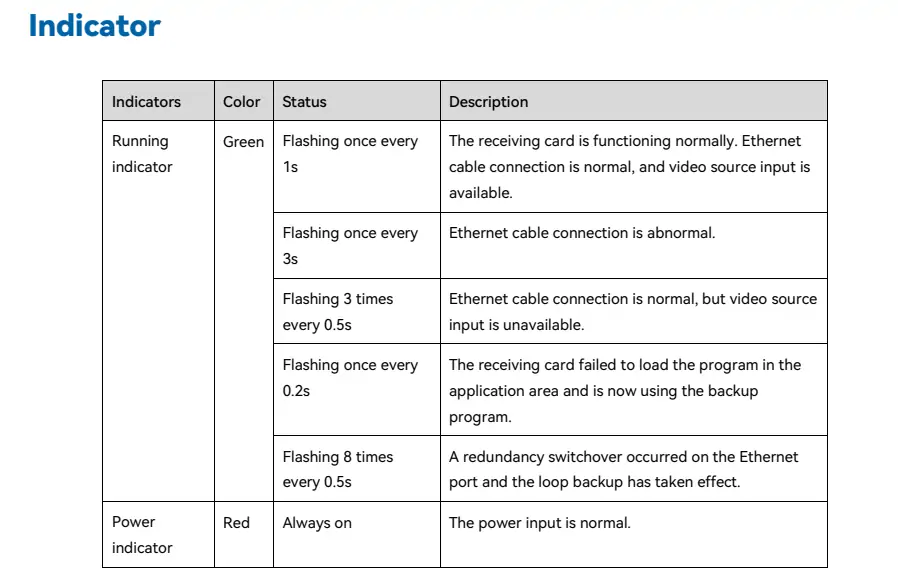

1. Power on the system and check the running indicator LED for normal operation.
2. Test basic functions like image rotation, gamma adjustment, and low latency mode.
3. Address any issues promptly using NovaLCT diagnostics.

By following these steps, you can ensure optimal performance and longevity of your A5s Plus LED Receiving Card.

The Novastar A5s Plus Receiving Card is highly compatible with a wide range of devices and systems, making it a versatile choice for LED display projects. Below are some key points regarding its compatibility:

The A5s Plus works seamlessly with popular driver ICs such as MBI5153, MBI5155, ICN2053, and TLC5958. This broad compatibility ensures flexibility in choosing components for your display setup.

It supports multiple video source formats, including HDMI, DVI, and LVDS, catering to different input requirements.

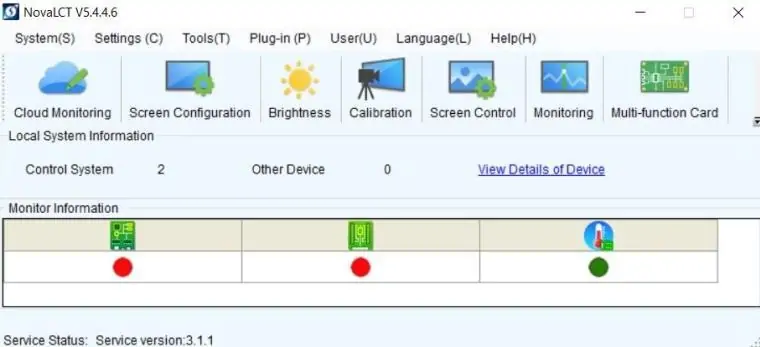

The A5s Plus integrates effortlessly with NovaStar’s proprietary software suite, including NovaLCT and NovaCLB. These tools provide advanced control over calibration, gamma adjustment, and mapping functions.

Thanks to its Gigabit Ethernet ports, the A5s Plus supports loop backup functionality, ensuring uninterrupted display even in case of line faults.

Pricing for the Novastar A5s Plus varies based on factors such as order volume, customization needs, and regional availability. Generally, it falls within the mid-to-high price range for professional-grade receiving cards. While slightly more expensive than entry-level models, the A5s Plus offers superior performance and reliability, making it a worthwhile investment for businesses seeking long-term value.

For accurate pricing, contact authorized distributors or visit NovaStar’s official website. Additionally, bulk orders may qualify for discounts, so consider your project scale before purchasing.

The Novastar A5s Plus Receiving Card is a top-tier solution for professionals seeking unmatched performance, reliability, and versatility in their LED display projects. With its advanced features like color management, 18bit+ grayscale enhancement, and low latency mode, the A5s Plus sets a new benchmark in the industry. While its price may be higher than entry-level alternatives, the benefits far outweigh the costs, especially for applications demanding high precision and durability.

Whether you’re managing indoor conference displays, outdoor billboards, or immersive multimedia installations, the A5s Plus LED Receiving Card proves to be a worthy investment. For more information or to place an order, reach out to NovaStar’s authorized dealers today!
