Huidu HD-B8H Control Card: Price, Setup & Buying Guide

The HD-B8H is an asynchronous multimedia control card in Huidu’s poster screen series, positioned as the highest-capacity model above the B8L and B6L. It is part of the HD-B8H LED Poster Screen Control System — the hardware and software stack that drives modern LED poster displays in retail stores, shopping malls, exhibition booths, and digital signage networks.

The defining feature of the B8H is its pixel loading capacity. A single card drives 2.6 million pixels — double the B6L’s 1.3 million. For very large or very fine-pitch poster displays that exceed even that, the HDMI cascade links up to 10 cards for a combined canvas of 8.8 million pixels with automatic resolution scaling across the chain. This matters because the industry trend toward P1.5 and finer pixel pitches means the same physical display area now contains far more pixels. A poster screen that used to need one B6L now needs more capacity. The B8H provides it.

Single-card loading of 2.6 million pixels is the headline upgrade. For a typical P1.86 poster display, this supports a panel of roughly 3,000 × 866 pixels — a large-format retail poster at close viewing distance. For a P2.5 display, the supported area is larger still. If your poster screen spec exceeds 1.3 million pixels, the B6L cannot drive it with a single card. The B8H can.

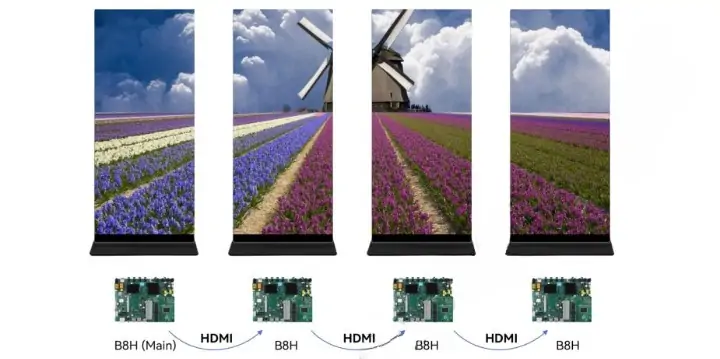

When a single B8H is not enough, the HDMI loop output links up to 10 cards in cascade. The total canvas reaches 8.8 million pixels. The cascade is plug-and-play: the sub-screens automatically inherit the main card’s basic parameters, connection topology, and brightness settings. You do not configure each card individually.

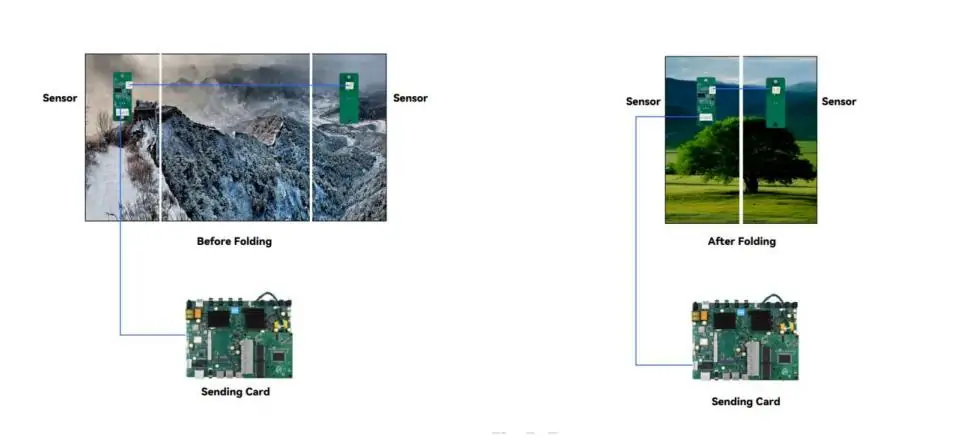

The B8H works with infrared sensors to detect whether a folding poster screen is open or closed, and switches the displayed content accordingly. A retail display that shows a full promotional video when the screen is unfolded, then switches to a low-power static logo when folded, uses this feature to extend panel life and reduce power consumption during off hours.

Connect a keyboard, mouse, and remote control directly to the B8H, and you can edit programs locally on the card itself — no computer required. For installations where sending a technician with a laptop is impractical, or where on-site staff need to make quick adjustments, this is a significant operational advantage over previous Huidu controllers that required HDPlayer on a Windows PC for any content change.

The B8H includes Bluetooth connectivity for voice commands. Basic operations — switching playlists, adjusting volume, turning the display on or off — can be triggered by voice through a paired device. This is useful in environments where the display is mounted in a difficult-to-reach location or where hands-free operation is preferred.

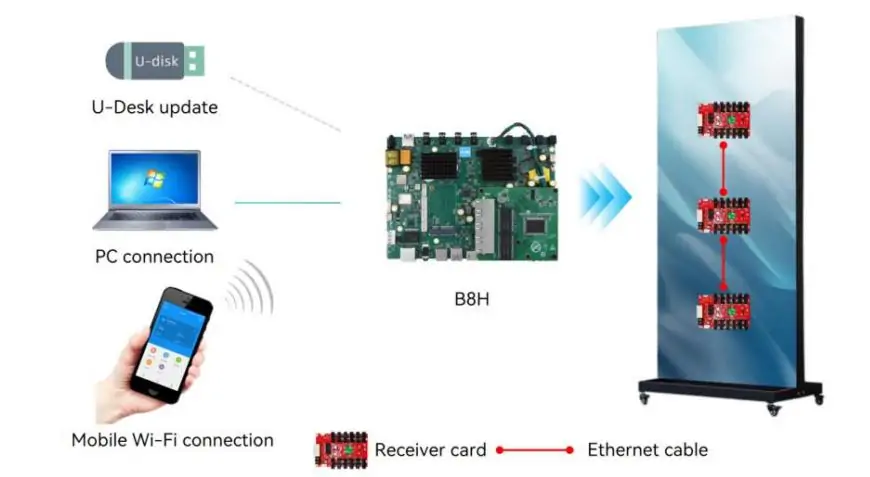

Like the B6L and B8L, the B8H includes 2.4 GHz Wi-Fi in AP and STA modes. The LedArt mobile app (Android, iOS, Harmony OS) handles wireless program publishing, brightness adjustment, and basic troubleshooting from a phone. Combined with the XiaoHui Cloud platform for browser-based fleet management, the B8H supports the same remote management workflow as the rest of Huidu’s current product line.

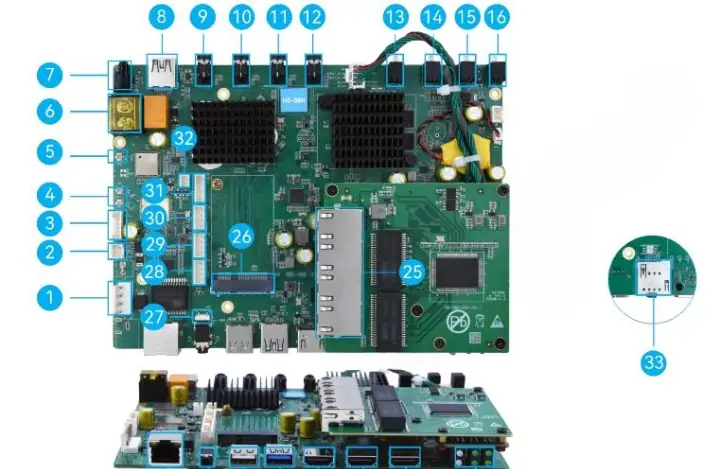

The B8H runs on Huidu’s latest Android-based system architecture with an FPGA co-processor for real-time image processing. The Android side manages content, scheduling, and networking. The FPGA handles pixel-level output to receiving cards.

The video decoding hardware handles multiple simultaneous streams. Supported codecs include H.264, H.265, MPEG-1/2/4, VP8, VP9, and MJPEG, with resolutions up to 4K at 60 fps. Still image formats supported include JPEG, BMP, GIF, PNG, and WEBP.

Mount the B8H inside the LED poster cabinet on standoffs. The form factor is identical to the B6L and B8L — 157 mm × 130 mm — so it drops into the same mounting position in existing cabinet designs. Connect the 5V DC power supply, the Gigabit Ethernet output to the first receiving card, and the Wi-Fi antenna. If using synchronous HDMI input mode, connect the source to the HDMI input port. If cascading multiple cards, connect the first card’s HDMI output to the second card’s HDMI input, and continue the chain.

Download HDPlayer from the Huidu website and install it on a Windows PC. Connect the computer to the same network as the B8H, or connect directly via the card’s Wi-Fi access point. HDPlayer will detect the card on the network. Configure the LED panel parameters — pixel pitch, module size, panel dimensions — so the card maps pixels correctly to the physical display layout.

Create a program in HDPlayer: set canvas size, add media layers, arrange the layout, and set the playback schedule. Publish to the card over the network. For deployments using the Xiaohui Cloud platform, publish through the browser interface instead.

Connect an infrared sensor to one of the B8H’s sensor ports. In HDPlayer, configure the folding screen detection settings: assign which program plays when the screen is open versus folded. The card switches automatically based on the sensor input.

Enable Bluetooth on the B8H through HDPlayer or the local settings menu. Pair a Bluetooth remote or voice-enabled device. Assign voice commands to specific actions — playlist switching, volume control, power toggle.

Connect a USB keyboard and mouse to the USB 3.0 port. Connect a display via HDMI output to see the editing interface. Programs can be created, edited, and saved directly on the card without a PC.

The Huidu B8H was released in July 2026, and pricing is still stabilising as distributors receive initial inventory. Based on Huidu’s product positioning and the price delta between the B6L ($160–$170) and B8L, the B8H is expected to retail in the $200 to $260 USD range through international LED controller distributors. Chinese marketplace pricing on Alibaba and similar platforms is estimated at ¥1,400 to ¥1,900 RMB depending on order volume.

Compared to the B6L at $160–$170 and the B8L at roughly $180–$220, the B8H commands a premium for its doubled pixel capacity and new smart features. Bulk pricing for orders of 20 units or more should land toward the lower end of the range.

Factors that affect the final price: shipping method and cost, whether the optional 4G module is included, whether accessories (Wi-Fi antenna, sensor cables, power supply) are bundled or sold separately, and distributor markup. A standard purchase from an authorised distributor includes the card itself, a Wi-Fi antenna, connection cables, and access to all software at no additional licence cost — HDPlayer, LedArt, and Xiaohui Cloud are all free with lifetime updates.

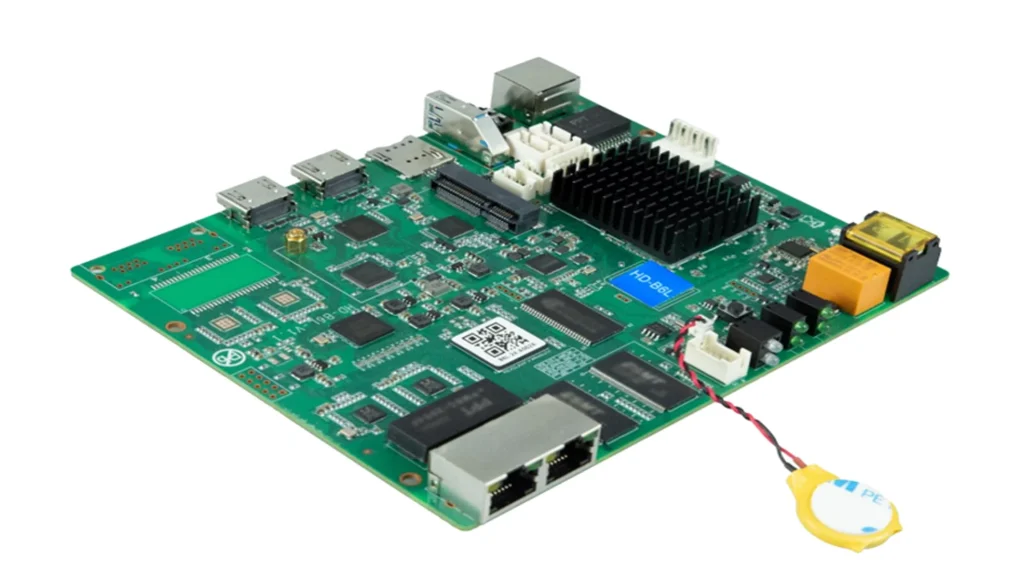

The B8L is Huidu’s mid-range poster controller, positioned between the entry-level B6L and the flagship B8H. The B8H takes the B8L’s foundation and adds significantly more pixel capacity plus several features the B8L does not offer.

The B8L is the right choice for standard poster screen deployments where 1.3 million pixels per card is sufficient and smart features like folding detection and voice control are not needed. The B8H is the right choice when pixel count exceeds 1.3 million, when the display is a folding unit, or when local editing without a PC provides operational savings.

Choose the HD-B8H if your deployment matches any of the following scenarios:

• Your poster screen exceeds 1.3 million pixels. This is the most common reason to upgrade. A fine-pitch P1.5 or P1.8 poster display at a standard size will exceed the B6L and B8L single-card limit. The B8H handles it with one card instead of two.
• You are cascading multiple cards and want plug-and-play sync. If your display requires more than one card, the B8H’s HDMI cascade with automatic parameter syncing simplifies setup and reduces configuration errors across the chain.
• You operate folding poster screens. The infrared sensor integration automates content switching between open and closed states, which saves power and extends panel life during idle periods.
• Field staff need to edit content without a laptop. The local editing capability means a store manager can update a promotion with a keyboard and mouse plugged directly into the display — no PC, no software installation, no network required.
• You want Bluetooth voice control for hands-free operation. In environments where touching the display or a controller is inconvenient — high-mounted screens, clean environments, busy retail counters — voice commands for basic operations add practical value.
• You are future-proofing a new deployment. Even if your current poster screen does not need 2.6 million pixels, your next one might. The B8H costs more upfront than a B8L, but the cost of replacing a controller later — hardware plus technician time — often exceeds the upfront savings.

Stick with the B6L or B8L if your poster screen is under 1.3 million pixels, you do not need folding detection or voice control, and you are comfortable doing all content updates from a PC with HDPlayer. For everything else, the B8H is the right card.

HDPlayer is the free Windows application for configuring the B8H and publishing content. Download the latest version from the official Huidu website or third-party mirrors:

Official download: huidu.cn/CnDownload

The official B8H specification sheet is available from the manufacturer’s product page:

Product page: Huidu B8H Specification

Connect the B8H to your computer via Wi-Fi or Ethernet. Open HDPlayer, navigate to Control → Firmware Update, enter password 168, and select the firmware file. HDPlayer can also download the correct firmware through Management → FPGA Download.

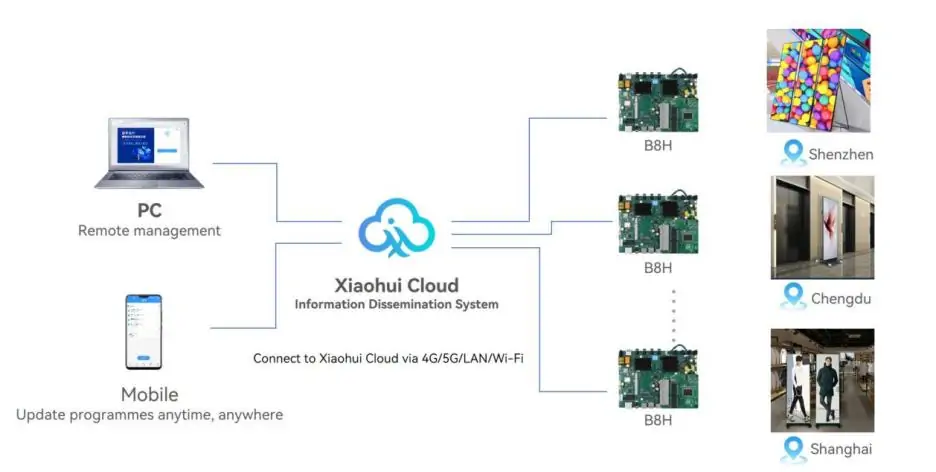

Xiaohui Cloud provides browser-based fleet management at no cost for the standard tier.

Huidu HD-B8H is the control card to choose when pixel count, smart automation, or local editing capability are the deciding factors. If your poster display exceeds 1.3 million pixels — and with the industry shift toward P1.5 and finer, more displays will — the B8H drives it with one card where the B6L or B8L would need two. The folding screen detection, Bluetooth voice control, and PC-free local editing are features that reduce operational overhead in the field, not just specs that look good on a datasheet.

At an expected $200 to $260, B8H costs more than the B8L or B6L. The question is whether the deployment needs the extra capacity or the smart features. If it does, the B8H is the right card. If it does not, the B8L or B6L still do the job at a lower price. The software for all three is the same, it is free, and it runs on the same Windows PC and cloud platform. The only decision is the hardware.
