Novastar ET1S-G Media Server: Everything You Need to Know

The ET1S-G supplies video to a display system; an LED installation still needs compatible downstream processing and control hardware. For example, a reception-desk LED display needs a complete signal chain, not just a media server.

Key Features of the Novastar ET1S-G

• Output: one 4K×2K@60Hz canvas, with DP and HDMI connections.
• Mapping: divide content into screen regions for creative layouts.
• Playback: organize video, images, audio and presentation files.
• Version matters: the original specification describes four layers plus audio with FX1. The V1.3.2 specification lists up to 20 layers with FX3 Pro Basic; that is not a promise of 20 simultaneous 4K videos.

For an exhibition stand, list every screen’s pixel dimensions and intended content first. Ask the integrator to demonstrate the complete program at the required frame rate.

Novastar ET1S-G hardware specs have changed. Match the following version details to the unit offered in your quotation.

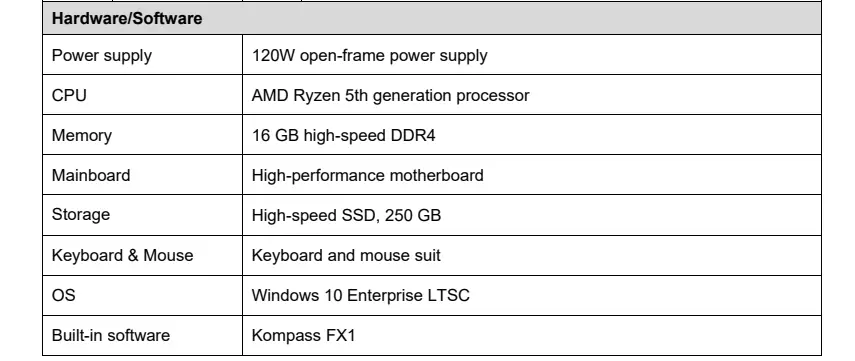

• Original V1.0.0: fifth-generation AMD Ryzen, 16 GB DDR4, 250 GB SSD and Kompass FX1.
• V1.3.2, September 7, 2026: Intel Core i3-1215U, 16 GB DDR4, 256 GB SSD and Kompass FX3 Pro Basic.
• Power: the 120 W supply rating differs from the specified 80 W maximum consumption.

Sources: original hardware specification and current hardware specification.

Panel diagram key: front 1 = power button; 2 = two USB 3.0 ports. Rear 1 = power switch; 2 = HDMI 2.0/1.3; 3 = CONTROL UI monitor; 4 = power inlet; 5 = DP 1.2; 6 = HDMI 1.3 group; 7 = Ethernet; 8 = audio; 9 = USB 2.0.

• Shared outputs: HDMI 2.0 mirrors DP content; the four HDMI 1.3 ports form a mosaic of that canvas. HDMI 2.0 mode disables HDMI 1.3 ports 2–4.
• Custom dimensions: V1.3.2 lists maximum width 7680 or height 4095 pixels. These are separate limits, not a supported 7680×4095 mode.
• Playback budget: NovaStar’s ET-series comparison lists one 4K2K@60fps or four 2K1K@60fps streams for ET1S-G.

Test the actual codec, bitrate, transitions and output timing together. Hardware decoding alone does not establish end-to-end latency.

Choose between ET1S-G and ET2S-G by canvas size, media workload and supplied software. The latest model specifications take priority over older comparison graphics.

Pros:

• Suited to a single 4K-class canvas.
• Compact rack installation.
• Existing FX1 projects have a documented playback workflow.

Cons:

• Connector count does not equal independent 4K outputs.
• Older FX1 layer limits differ from newer software licensing.

Pros:

• The ET2S-G V1.3.3 specification lists Kompass FX3 Pro Advanced and up to 40 layers.
• Its decoding specification allows one 8K×2K@60fps or two 4K×2K@60fps SDR videos.
• DP and two HDMI outputs support mosaic arrangements within the total loading limit.

Cons:

• More capability can mean unnecessary system cost for a simple loop.
• NovaStar’s comparison does not list frame-sync mosaic or device backup for either ET1S-G or ET2S-G.

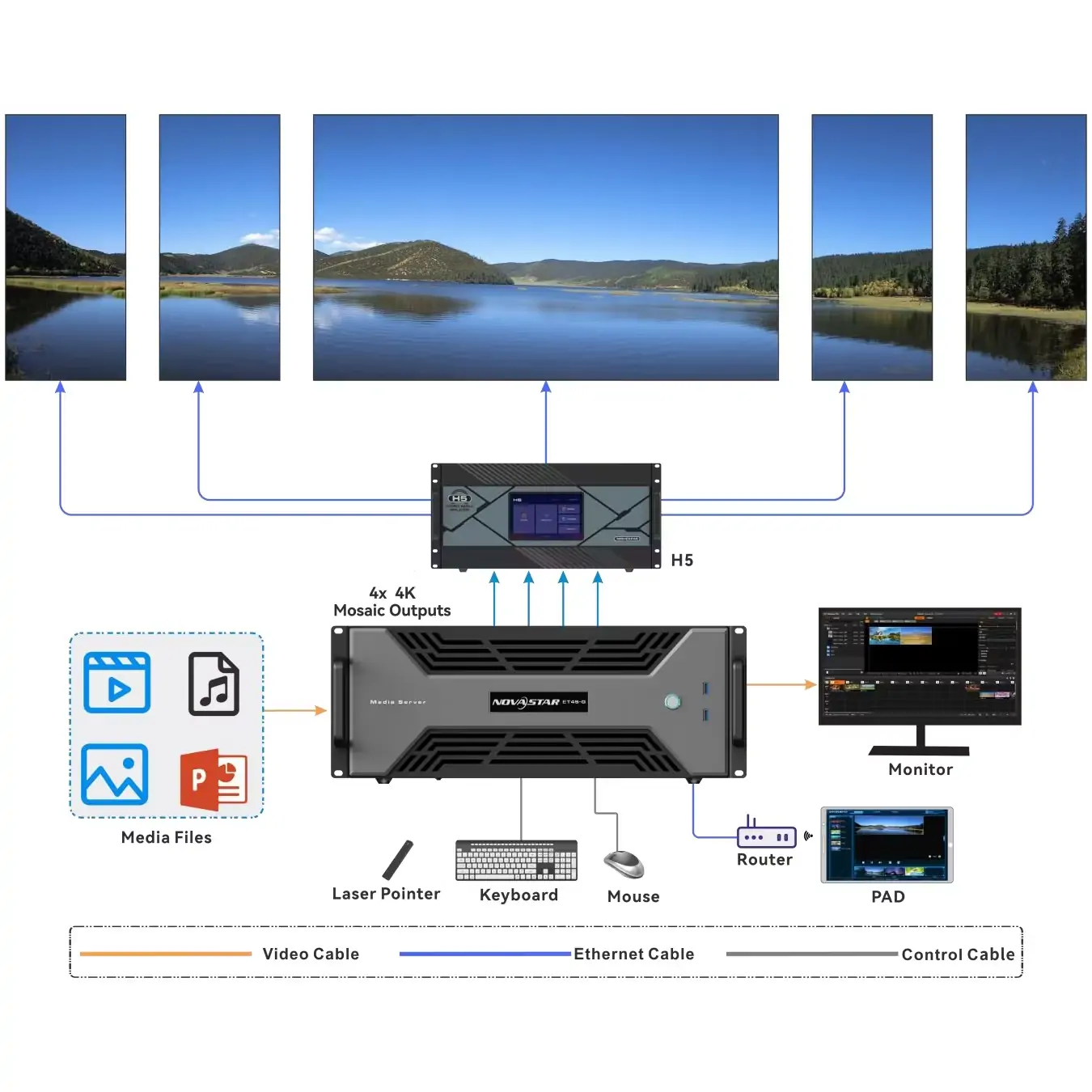

Diagram clarification: the retained illustration shows a media server feeding an H5 processor and multiple screens, labelled “4×4K”. It illustrates a broader system, not the ET2S-G’s verified output capacity. Use the linked specification for sizing.

Use the software edition supplied and licensed for your unit. The screenshots below show the older Kompass FX1 interface; newer units may use FX3 Pro Basic.

1. Start at NovaStar’s website and open the ET-series downloads.
2. Record your hardware revision, firmware and software version.
3. Choose FX1 only for a compatible installation; confirm upgrade entitlement with support.
4. Back up the project and media before installation.
5. Follow the matching manual and test playback before returning to service.

• NDI: network media sources require a working network path.
• Web and streaming sources: test the exact source; support does not guarantee every streaming service works.
• Text: use readable overlays for announcements.

The Kompass FX1 V3.13.0 manual covers licensing, media sources and playback. A download alone does not establish permanent activation.

Novastar ET1S-G price requires a current quotation. The previous $875 figure was not supported by a dated manufacturer price. Compare delivered cost for the same hardware revision, software licence, accessories, taxes and shipping.

Factors to consider before purchasing:

• Compliance: request documentation for the exact unit and destination.
• Warranty: get the duration, coverage, service contact and return costs in writing; do not assume a universal three-year term.
• Compatibility: confirm processor inputs, resolution, refresh rate and audio routing.

Verify the seller’s authorization with NovaStar. Send EagerLED your screen dimensions and playback requirements through the project enquiry form for a configuration review.

Before importing media, connect the control monitor to CONTROL UI and the video output to the display processor. Match the output timing to the downstream equipment. These steps follow the older FX1 workflow.

• Import files or folders into Media Library.
• Check each file on the target unit; an MP4 extension alone does not identify its codec.
• For PowerPoint, the original specification lists 1080p support.

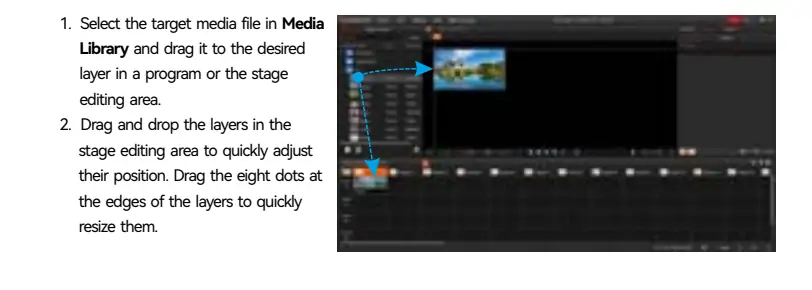

• Drag media onto stage layers; set position, size and stacking order.
• Preview cropping and masks against the real screen map before playback.

• Use play, pause and stop controls to check the program.
• Set crossfade timing and verify both sides of each transition.

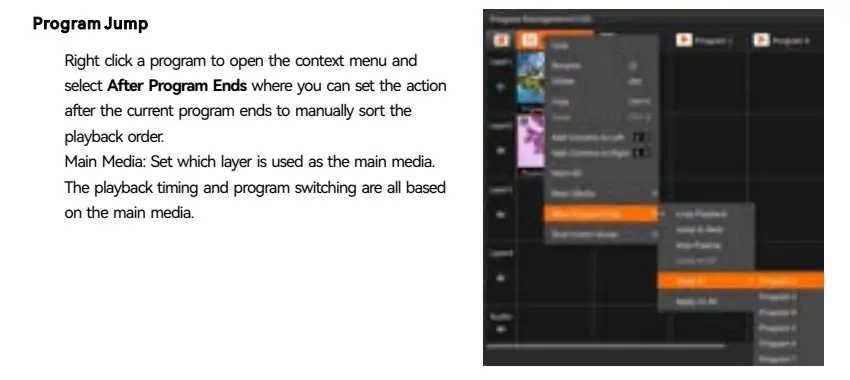

• Check automatic program jumps and the main program before enabling unattended playback.

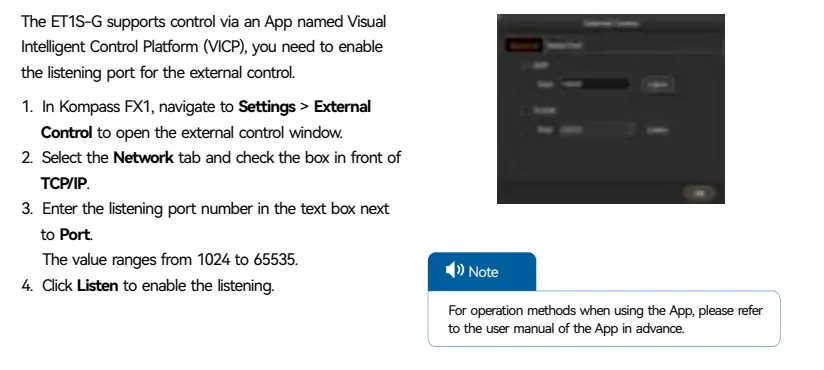

• For VICP app control, follow the matching manual’s External Control section.
• Match the server address and configured control port; test start and stop on the local network.

Save the project and package its media. Rehearse startup, audio and recovery after a power interruption. See the FX1 user manual for the pictured controls.

The Novastar ET1S-G can serve small-scale LED display projects when its canvas and playback limits match the design. Confirm the hardware revision, licensed software and complete signal chain before ordering.

For a useful quotation, provide screen pixel dimensions, sample media, required frame rate and daily operating schedule.
