NovaStar MRV570-1: Specs, Features & Compatibility Guide

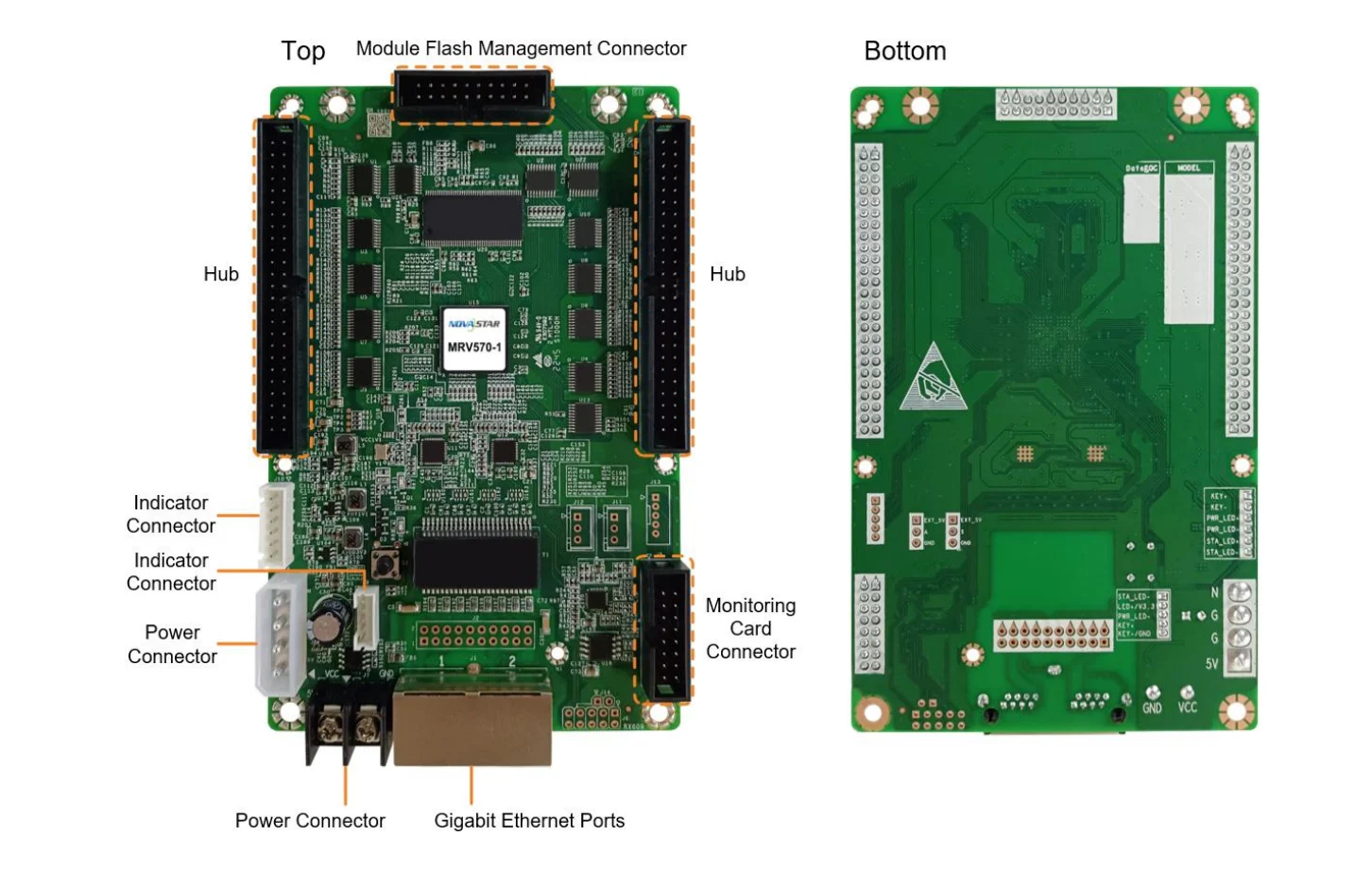

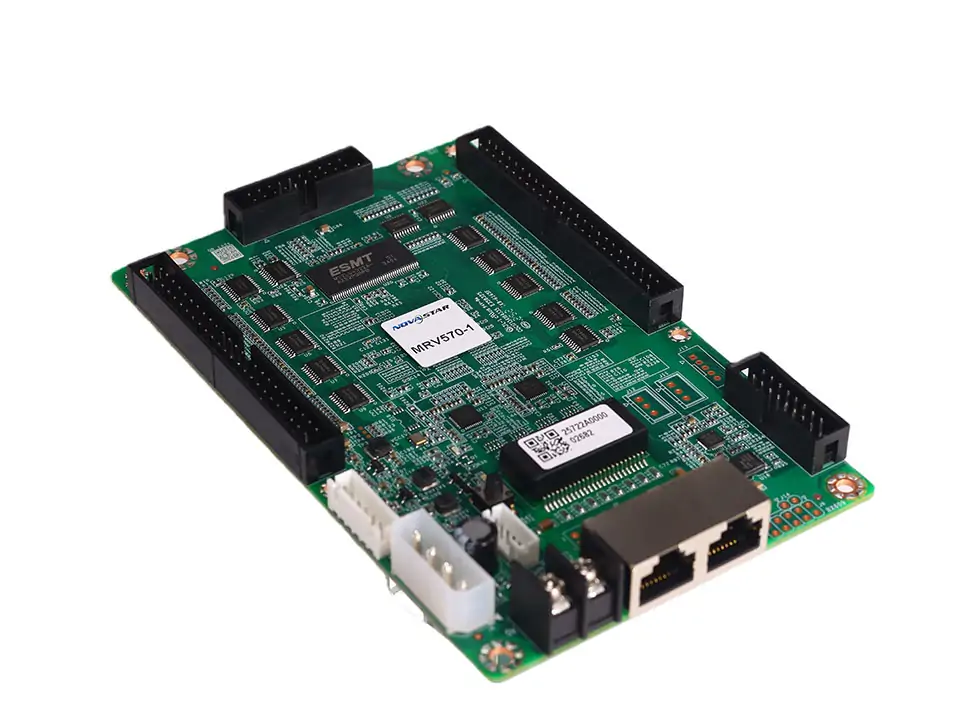

NovaStar MRV570-1 LED Receiving Card is a general-purpose receiving card developed by Xi’an NovaStar Tech Co., Ltd. Designed for both indoor and outdoor LED displays, it serves as a critical interface between LED controllers and display modules. The MRV570-1 supports resolutions up to 512×256@60Hz, making it ideal for a wide range of applications, including fixed installations, rental LED display screens, and creative LED setups.

Key highlights include:

• Pixel-level brightness and chroma calibration for superior image quality.
• Support for up to 20 groups of parallel RGB data or 64 groups of serial data.
• EMC Class B compliance for strong electromagnetic compatibility.
• Comprehensive monitoring capabilities, including temperature, power supply voltage, and Ethernet communication status.

With its reliable performance and user-friendly design, MRV570-1 LED Receiver Card is an excellent choice for professionals seeking seamless integration and high-quality visuals.

One of the standout features of NovaStar MRV570-1 Receiving Card is its ability to support resolutions up to 512×256@60Hz. This resolution ensures smooth video playback and sharp image quality, even in large-scale installations. Whether you’re working on indoor billboards or outdoor advertising screens, the MRV570-1 delivers consistent performance across diverse environments.

Additionally, the card’s pixel-level calibration enhances uniformity and color accuracy, eliminating inconsistencies that can detract from the viewing experience.

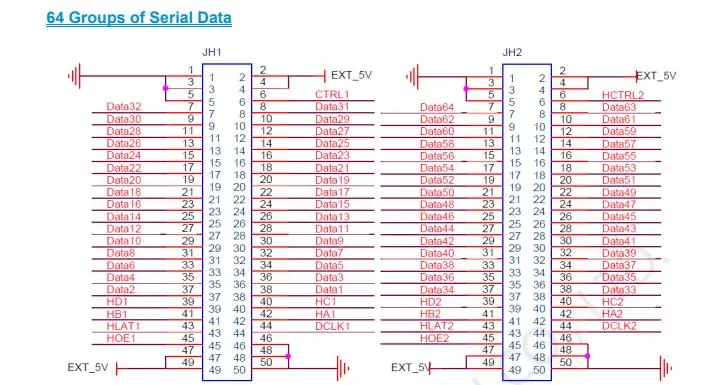

In serial mode, MRV570-1 LED Receiver Card supports up to 64 groups of serial data, each capable of driving one independent LED strip. For horizontal LED strips, Data1 drives the first row from the top, while Data64 drives the 64th row. Similarly, for vertical LED strips, Data1 drives the first column from the left, and Data64 drives the 64th column.

This flexibility makes the MRV570-1 suitable for fine-pitch LED panels and custom layouts, ensuring precise control over every aspect of your display.

The NovaStar MRV570-1 Receiving Card boasts a range of advanced features designed to enhance functionality and user experience:

• Module Flash Management: Store calibration coefficients and module information for quick access and optimal performance.
• Pixel-Level Brightness and Chroma Calibration: Adjust brightness and chroma at the pixel level for uniform and vibrant visuals.
• Stored Image Setting: Display a pre-set image directly from the receiving card, useful for diagnostics or backup purposes.
• Configuration Parameter Readback: Retrieve and verify settings for accurate configuration and streamlined troubleshooting.

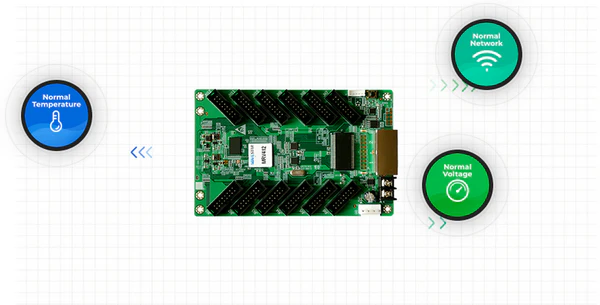

• Temperature Monitoring: Real-time monitoring of operating temperature to prevent overheating.
• Ethernet Cable Communication Status Monitoring: Ensure reliable data transmission and quickly identify connectivity issues.
• Power Supply Voltage Monitoring: Detect irregularities in voltage levels to safeguard system performance.
• Support for Monitoring Card Connection: Enhance system monitoring and control with a compatible monitoring card (e.g., MON300).

These features make the MRV570-1 a highly versatile and reliable choice for professional LED display systems.

Calibration is a critical aspect of achieving optimal display performance, and NovaStar MRV570-1 Receiving Card excels in this area. Its pixel-level brightness and chroma calibration capabilities ensure uniformity and consistency across the entire display surface.

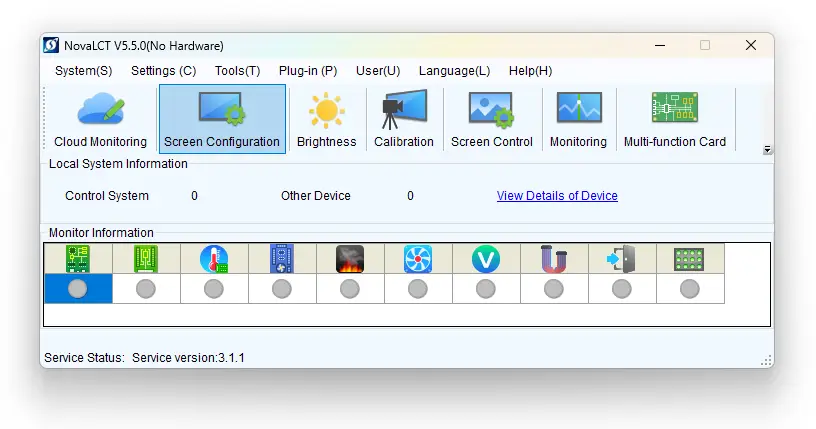

Using tools like NovaLCT and NovaCLB, users can calibrate the brightness and chroma of each light point, effectively eliminating color differences and improving overall image quality. Calibration coefficients are stored locally via Module Flash Management, ensuring consistent performance even after power cycles.

For installations requiring seamless transitions and uninterrupted visuals, the MRV570-1 also supports preset image settings, allowing users to display a specific image during startup or signal loss scenarios.

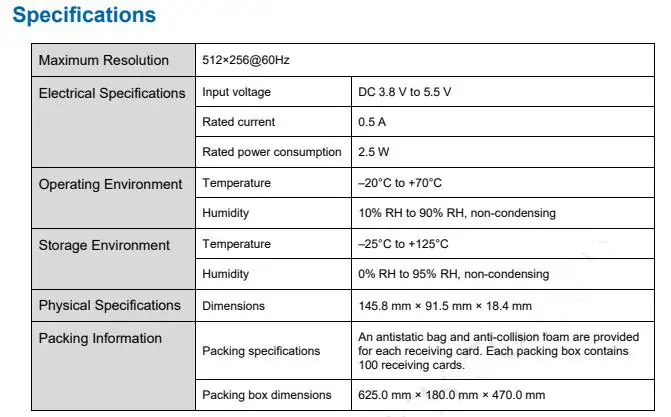

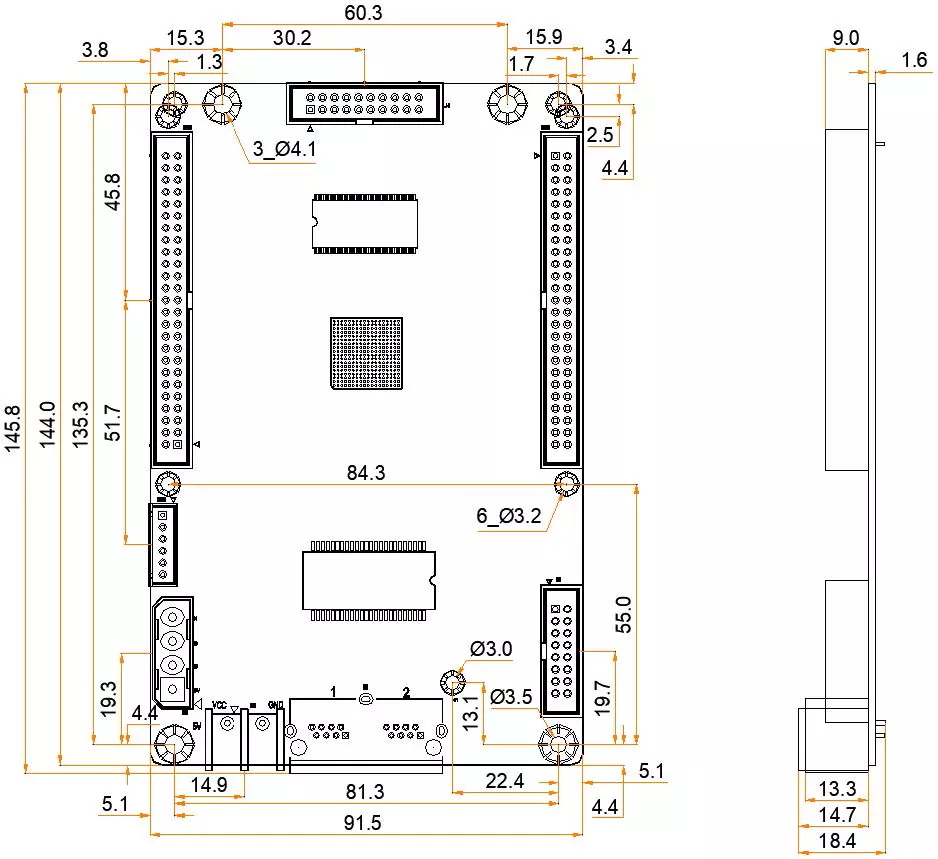

The MRV570-1 LED Receiver Card is compatible with a wide range of LED modules and pixel pitches, making it suitable for various applications. Here’s a quick compatibility guide:

• Input Ports: Ethernet
• Output Ports: Ethernet
• Supported Resolutions: Up to 512×256@60Hz
• Control Method: Network-based
• Operating Temperature: –20°C to +70°C
• Operating Humidity: 10% RH to 90% RH (non-condensing)

To ensure optimal performance, always use shielded network cables for stable data transmission and provide adequate ventilation for prolonged operation.

While the MRV570-1 LED Receiver Card is designed for reliability, occasional issues may arise. Here are some common troubleshooting tips:

• No Video Source Input: Check the Ethernet connection and ensure the source device is properly configured.
• Overheating: Monitor the temperature indicator and ensure proper ventilation around the card.
• Irregular Voltage Levels: Use the power supply voltage monitoring feature to detect and address irregularities.
• Communication Issues: Verify the Ethernet cable status and inspect for any physical damage.

For more complex issues, refer to the user manual or contact NovaStar’s technical support team.

NovaStar MRV570-1 LED Receiving Card is a powerful and versatile solution for professional LED display systems. With its support for high resolutions, advanced calibration features, and comprehensive monitoring capabilities, the MRV570-1 ensures exceptional image quality and reliable performance. Whether you’re working on fixed installations, rental displays, or creative LED setups, the MRV570-1 is a dependable choice that meets the demands of modern LED technology.

For more information, download the specifications PDF, user manual, or firmware ZIP file from NovaStar’s official website.
