Novastar VX1000 Pro: All-in-One LED Video Control Solution

The Novastar VX1000 Pro is an advanced LED video controller that combines video processing and control capabilities in a single device. Unlike traditional setups requiring multiple components, this all-in-one solution integrates everything needed to manage complex LED displays. With its 10 Gigabit Ethernet ports and support for three distinct working modes (Video Controller, Fiber Converter, and ByPass), the VX1000 Pro handles up to 6.5 million pixels with a maximum output resolution of 10,240×8,192 pixels.

As a Novastar VX1000 Pro LED Video Processor, it supports 4K×2K@60Hz video input, making it suitable for ultra-high-definition content playback. The device excels in environments where reliability and performance are critical, such as live events, broadcast studios, and premium digital signage installations. Its industrial-grade construction ensures stable operation even under demanding conditions, while its intuitive interface allows for quick setup and operation.

What truly sets the Novastar VX1000 Pro All-in-One-Video Processor apart is its versatility. Whether you’re managing a single screen or a complex multi-screen installation, this device adapts to your needs with minimal configuration. From input signal processing to output management, the VX1000 Pro handles every aspect of LED video control, eliminating the need for additional supporting equipment and simplifying your workflow.

The Novastar VX1000 Pro Video Processor delivers an impressive array of features designed to meet the most demanding LED display requirements:

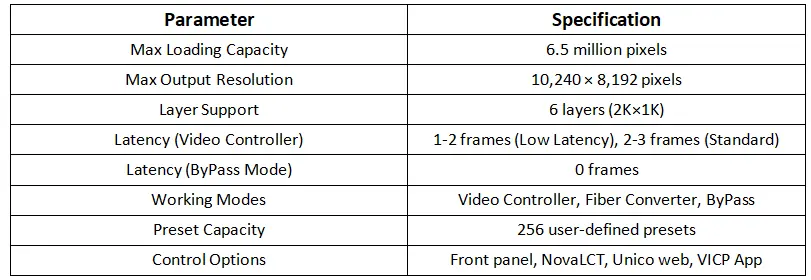

• Powerful Processing Engine: Capable of handling 6.5 million pixels with ultra-low latency (0 frames in ByPass mode), ensuring smooth, real-time video performance even for the most dynamic content.

• Multi-Layer Display: Supports up to 6 layers (2K×1K), allowing for complex visual compositions with adjustable size, position, priority, and aspect ratio. This flexibility enables sophisticated visual designs without compromising performance.

• Advanced Image Processing: Features SuperView III image processing technology for seamless scaling, pixel-perfect cropping, and exceptional image quality. The processor also supports pixel-level brightness and chroma calibration for consistent, professional-grade visuals.

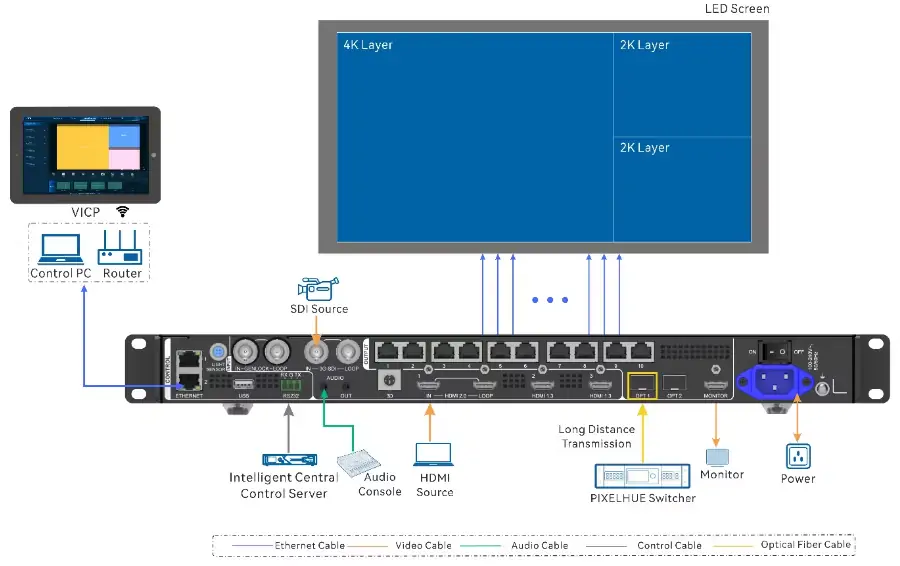

• Flexible Input/Output Options: The VX1000 Pro Input Output Ports include HDMI 2.0 (4K×2K@60Hz), HDMI 1.3, 3G-SDI, USB 3.0 for media playback, and self-adaptive optical fiber ports that can function as either input or output connectors.

• End-to-End Backup System: Comprehensive redundancy with backup between devices, input sources, Ethernet ports, and receiving cards ensures uninterrupted operation even in critical environments.

• OSD Functionality: Supports both text and image OSD with multiple customization options, including static text, dynamic scrolling text, weather displays, and time displays.

• 3D Capabilities: Connect third-party 3D emitters directly via the dedicated 3D connector for immersive visual experiences (note: 3D functionality reduces output capacity by 50% when using Side-by-Side or Top-and-Bottom formats).

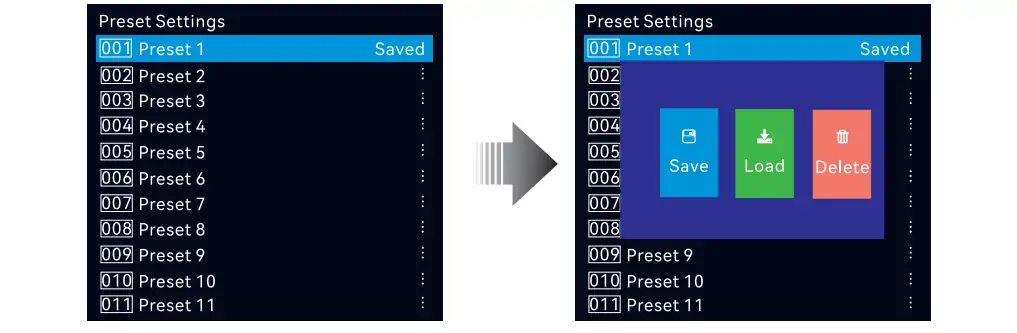

• 256 Preset Support: Save and recall complex configurations with one-button access, streamlining operation during live events where quick changes are essential.

These Novastar VX1000 Pro Features make it an ideal solution for applications requiring both high performance and operational simplicity.

The Novastar MCTRL300 “shines” as a premier choice in the LED display ecosystem not because of a single feature, but due to its masterful combination of performance, reliability, and user-centric design. It solves key challenges for integrators and rental companies alike. Here’s a breakdown of why the MCTRL300 stands out:

• HDMI 2.0: 4K×2K@60Hz (4096×2160), HDCP 2.2/1.4 support, 12-bit color depth
• HDMI 1.3: Dual ports supporting 1920×1080@60Hz
• 3G-SDI: 1920×1080@60Hz with SMPTE compliance
• USB 3.0: Media playback support for H.265 4K@60fps video and image formats (JPEG/PNG/BMP)
• Optical Fiber: Self-adaptive port (OPT 1) functioning as input or output

• Ethernet Ports: 10 Gigabit ports with 650,000 pixels per port capacity
• Fiber Outputs: 2×10G ports (OPT 1 transmits to Ethernet 1-10, OPT 2 provides copy/backup)
• Monitoring Output: HDMI 1.3 (1920×1080 fixed)
• 3D Sync Connector: For direct connection to 3D emitters

• Dimensions: 482.6 × 302.2 × 50.1 mm (1U rack-mountable)
• Weight: 3.9 kg (net), 6.5 kg (packaged)
• Power: 100-240V AC, 44W consumption
• Operating Temperature: 0°C to 50°C
• Certifications: CE, FCC, UL, RoHS, and others

This comprehensive technical profile makes the VX1000 Pro suitable for the most demanding LED display applications.

While the standard VX1000 offers solid performance, the VX1000 Pro delivers significant enhancements that justify the upgrade for professional applications:

The “Pro” designation isn’t just marketing—it represents substantial performance improvements. The VX1000 Pro’s doubled layer capacity and massively expanded preset storage (256 vs. 10) provide unparalleled flexibility for complex productions. The addition of USB 3.0 media playback eliminates the need for external media players, while the increased pixel capacity supports larger, more impressive displays.

For professionals working on high-end projects, the VX1000 Pro’s superior processing power, enhanced connectivity options, and advanced features like improved HDR support deliver tangible benefits that translate to better visuals and more reliable operation.

The Novastar VX1000 Pro Processor Price typically ranges from $1,500 to $2,000 USD in the current market. This price point reflects its position as a professional-grade solution for mid-to-high-end LED display applications.

Several factors can influence the final price:

• Regional pricing variations
• Sales channel (direct vs. distributor)
• Included accessories and software
• Tax considerations
• Bundle packages with additional equipment

While the VX1000 Pro represents a significant investment compared to entry-level controllers, its comprehensive feature set and industrial-grade reliability deliver excellent value for professional applications. When considering the total cost of ownership, the VX1000 Pro’s integration of multiple functions into a single device often results in overall system cost savings by eliminating the need for additional processing equipment.

For the most accurate pricing and potential volume discounts, we recommend contacting authorized Novastar dealers who can provide customized quotes based on your specific requirements.

To get the most from your Novastar VX1000 Pro, several valuable resources are available:

• Novastar VX1000 Pro Manual: Comprehensive user guide covering all features and operations
• Quick Start Guide: Step-by-step setup instructions for immediate deployment
• Unico Control Software: Web-based interface for remote management
• NovaLCT Software: Advanced configuration and monitoring tool
• Firmware Updates: Latest performance improvements and feature enhancements
• Technical Specifications Document: Detailed technical reference

These resources can typically be found on the official Novastar website or through authorized distributors. The Novastar VX1000 Pro Manual is particularly valuable for understanding the device’s full capabilities and troubleshooting common issues.

The Novastar VX1000 Pro represents the pinnacle of integrated LED video control solutions, combining exceptional processing power with remarkable versatility. As a true all-in-one video processor, it eliminates the complexity of traditional multi-component systems while delivering professional-grade performance for the most demanding applications. Its ability to handle up to 6.5 million pixels, support multiple working modes, and provide comprehensive backup solutions makes it an indispensable tool for professionals in the LED display industry.
