The NovaStar MX6000 Pro is a revolutionary 8K LED display controller designed for large-scale, high-performance LED installations. As part of the COEX control system series, it combines cutting-edge technology with unparalleled flexibility to deliver an unmatched visual experience. Whether you’re managing rental setups, xR/VP studios, or TV production environments, this controller redefines what’s possible in LED display management. Let’s dive into why the MX6000 Pro LED Wall Controller is a game-changer in the industry.
1. What is NovaStar MX6000 Pro LED Wall Controller?
The Novastar MX6000 Pro is a professional-grade, modular LED display controller engineered for next-generation LED displays. With its compact 6U design, it supports up to 32×4K@60Hz, 16×8K@30Hz, or 8×8K@60Hz video inputs, making it ideal for massive screen configurations. Its modular card-based architecture allows users to configure input and output cards flexibly, ensuring stability and ease of maintenance.
Key highlights include:
- 12-bit color depth: For true-to-life color fidelity.
- 480 Hz capability: Delivering ultra-smooth visuals for high-speed applications.
- HDR supportability: Compliant with SMPTE ST 2084 and ST 2086 standards, including HDR10 and HLG.
- Zero-frame latency: Achieving less than 1 ms processing delay without compromising load capacity.
With advanced features like real-time multi-screen scaling, seamless backup mechanisms, and compatibility with VMP software, the MX6000 Pro LED Video Processor is a versatile solution for demanding applications.
2. Key Features of the NovaStar MX6000 Pro LED Video Processor

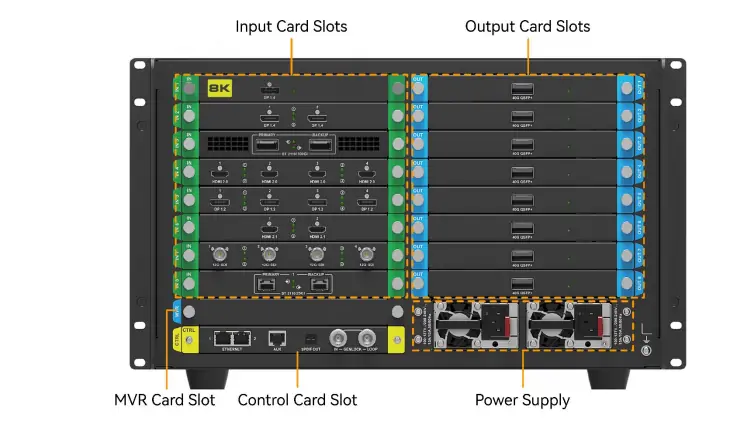

2.1 Input and Output Flexibility
- Input Cards: Up to 10 different types, including HDMI 2.0, DP 1.2, HDMI 2.1, DP 1.4, 12G-SDI, and VoIP (ST 2110).

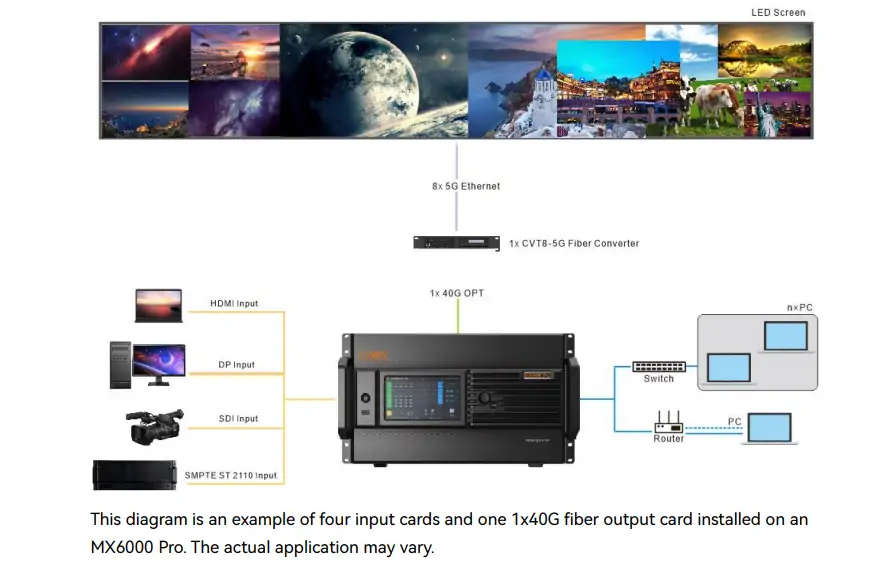

- Output Cards: Two primary types—4x10G fiberand 1x40G fiber—allow flexible bandwidth configurations (1G or 5G solutions).
2.2 Advanced Screen Management
- Card-Based Screens: Each output card can be customized for unique resolutions, catering to irregular screen shapes.
- Frame Synchronization: Ensures smooth playback without tearing or noticeable cut lines.
- Preset Management: Save up to 128 customizable presets for quick adjustments across scenarios.
2.3 Cutting-Edge Features
- Multi-Layer Support: A single output card supports up to 4 layers, while the entire controller handles 32×4K layers.
- Color Processing: Includes 14-channel color correction, color curves, and 3D LUT (.cube)files for precise color adjustments.
- Full-Grayscale Calibration: Works with NovaStar’s CC3 calibration system for uniformity across all grayscales.
- 3D Viewing Experience: Compatible with 3D emitters and glasses for immersive visuals.
2.4 Device Control and Monitoring
- Touchscreen Interface: A responsive 7-inch IPS touchscreen simplifies operation.
- VMP Software Integration: Enables smart device management and centralized control.
- Automated Alerts: Monitors fan speed, temperature, voltage, and operational status in real time.
3. Novastar MX6000 Pro vs Novastar MX2000 Pro
To better understand the differences between the MX6000 Pro and MX2000 Pro, let’s compare their key specifications in detail:
| Feature | MX6000 Pro | MX2000 Pro |
|---|---|---|
| Maximum Inputs | 32×4K@60Hz, 16×8K@30Hz, 8×8K@60Hz | 16×4K@60Hz, 8×8K@30Hz |
| Output Bandwidth | Supports both 1G and 5G solutions | Limited to 1G solutions |
| Frame Rate | Up to 480 Hz | Up to 360 Hz |
| HDR Support | HDR10, HLG (SMPTE ST 2084/2086) | HDR10, HLG |
| Ethernet Load Capacity | Higher pixel load per port (e.g., 5G: 2,951,200 pixels@60Hz) | Lower pixel load per port (e.g., 1G: 659,722 pixels@60Hz) |
| Backup Mechanisms | Hot backup for devices, cards, and Ethernet ports | Limited backup options |
| Applications | Suitable for large-scale events, xR/VP studios, TV production | Ideal for smaller installations and events |
The MX6000 Pro clearly outperforms the MX2000 Pro in terms of scalability, performance, and versatility, making it the preferred choice for high-end applications.
4. Applications of the MX6000 Pro LED Controller
The MX6000 Pro LED Display Controller is widely used in industries that demand exceptional image quality and reliability:
- Rental Services: Perfect for large events requiring dynamic, high-resolution displays.
- xR/VP Studios: Delivers camera-friendly features like Shutter Fitand Frame Multiplication.
- TV Production: Ensures precise color reproduction and low latency for live broadcasts.
- E-Sports Events: Handles high frame rates and fast-paced visuals seamlessly.
- Exhibition Halls: Supports massive pixel loads for immersive installations.
Its ability to adapt to various scenarios makes it a versatile tool for professionals.
5. Technical Specifications Overview
1. Electrical Specifications
- Power Supply: 100–127V~/200–240V~, 15A/10A, 50/60Hz.
- Max Power Consumption: 820W (varies based on configuration).
2. Environmental Conditions
- Operating Temperature: –5°C to +45°C.
- Storage Temperature: –30°C to +80°C.
3. Physical Dimensions
- Size: 482.6 mm × 282.9 mm × 538.8 mm (including foot pads).
- Weight: Net weight of 21.5 kg (chassis only).

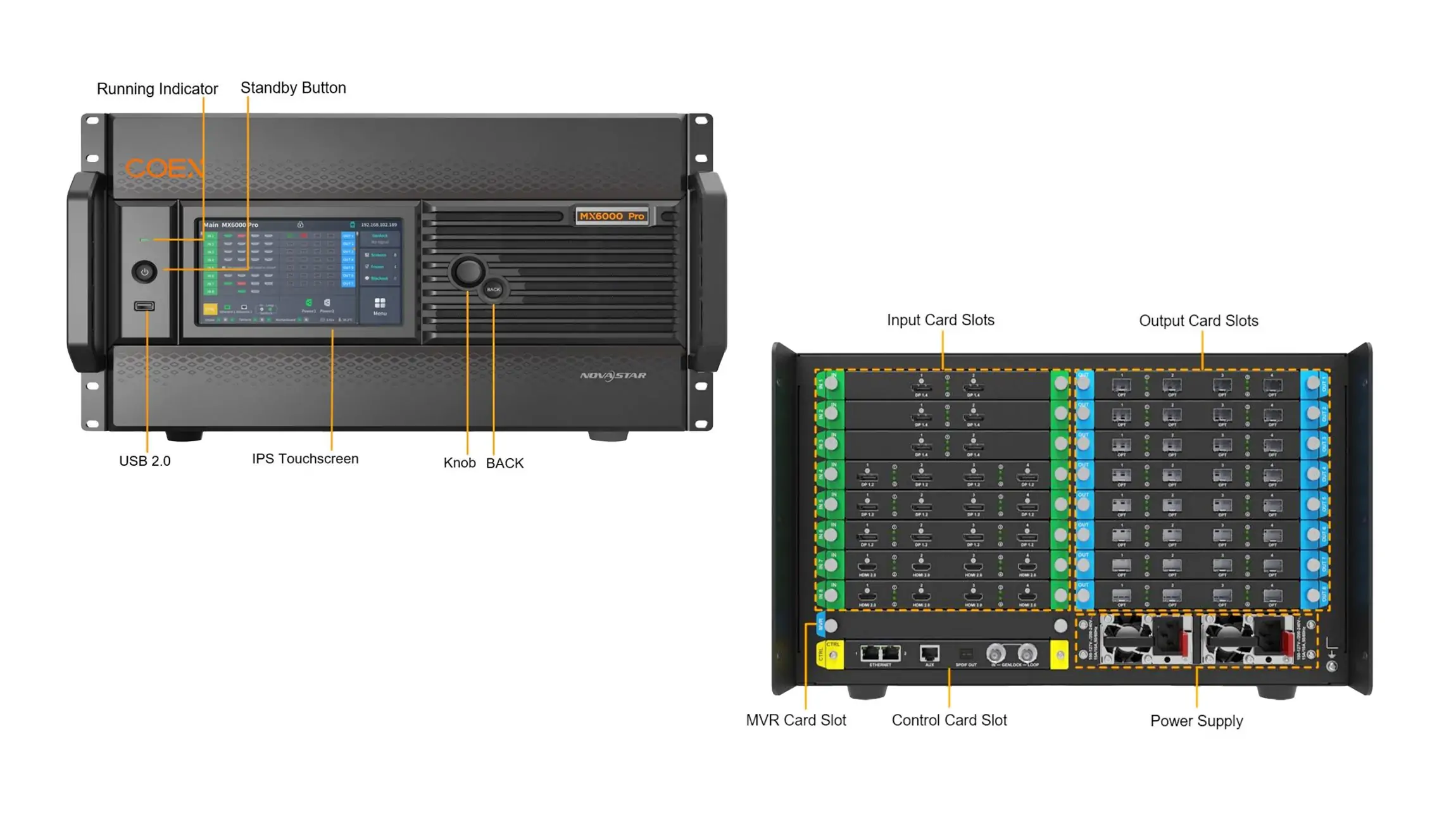

4. Input and Output Ports
The MX6000 Pro Input Output Ports include:
- Input Cards: HDMI 2.0, HDMI 2.1, DP 1.2, DP 1.4, 12G-SDI, and VoIP (ST 2110).
- Output Cards: 4x10G fiber and 1x40G fiber options.
For more details, refer to the MX6000 Pro Manual available on NovaStar’s official website.
6. Why Choose the NovaStar MX6000 Pro?
The MX6000 Pro LED Wall Controller stands out due to its:
- Highly Integrated Design: Compact yet powerful, supporting up to 141 million pixels.
- Premium Image Quality: Authentic 12-bit video input ensures vibrant, lifelike visuals.
- Seamless Redundancy: Automatic switching between devices, cards, and Ethernet ports ensures uninterrupted operation.
- User-Friendly Interface: Equipped with a 7-inch touchscreen and VMP software integration for effortless control.
These features make it an indispensable tool for professionals seeking reliability and performance.
7. Novastar MX6000 Pro Price
While the exact Novastar MX6000 Pro pricevaries depending on configuration and region, it is competitively priced for its capabilities. Given its robust feature set—including 8K support, modular design, and advanced color processing—the investment pays off in long-term usability and performance. For detailed pricing, contact authorized NovaStar distributors or visit their website.
8. FAQs
7. Conclusion
NovaStar MX6000 Pro is a groundbreaking addition to the world of LED display controllers. With its 8K resolution support, 12-bit color depth, and zero-frame latency, it sets a new standard for premium image quality and performance. Its modular design, extensive input/output options, and advanced features like HDR, 3D LUT, and Frame Multiplication make it an invaluable asset for professionals in rental services, xR/VP studios, TV production, and beyond.
For those seeking the ultimate LED display solution, the MX6000 Pro LED Video Processor is a clear winner. Explore the Novastar MX6000 Pro specs and pricing today to elevate your projects to the next level.
