Novastar CVT8-5GM Price, Specs, and Full Technical Breakdown

The CVT8-5GM converts optical and electrical signals between a compatible sending device and LED receiving cards. It extends the display-data path; it does not accept HDMI directly or replace the controller’s video processing.

Check the complete system before ordering. NovaStar’s 5G solution guide pairs CVT8-5G converters with compatible 40G outputs and 5G receiving cards, including CA50E and XA50 Pro. A matching connector alone does not establish compatibility with an existing 1G system.

The “M” version uses multimode fiber: OM3 supports up to 100 m and OM4 up to 150 m. Select the cable for the actual routed distance, including patching, rather than the straight-line distance. For longer routes, compare the single-mode CVT8-5GS and its matching optics. See NovaStar’s CVT8-5G specifications.

The compact enclosure supports three installation arrangements:

• Horizontal: Place it on a suitable stable surface.
• Suspended: Use the specified mounting hardware and support.
• Rack: Combine two units, or one unit and a connecting piece, for a standard 19-inch rack assembly.

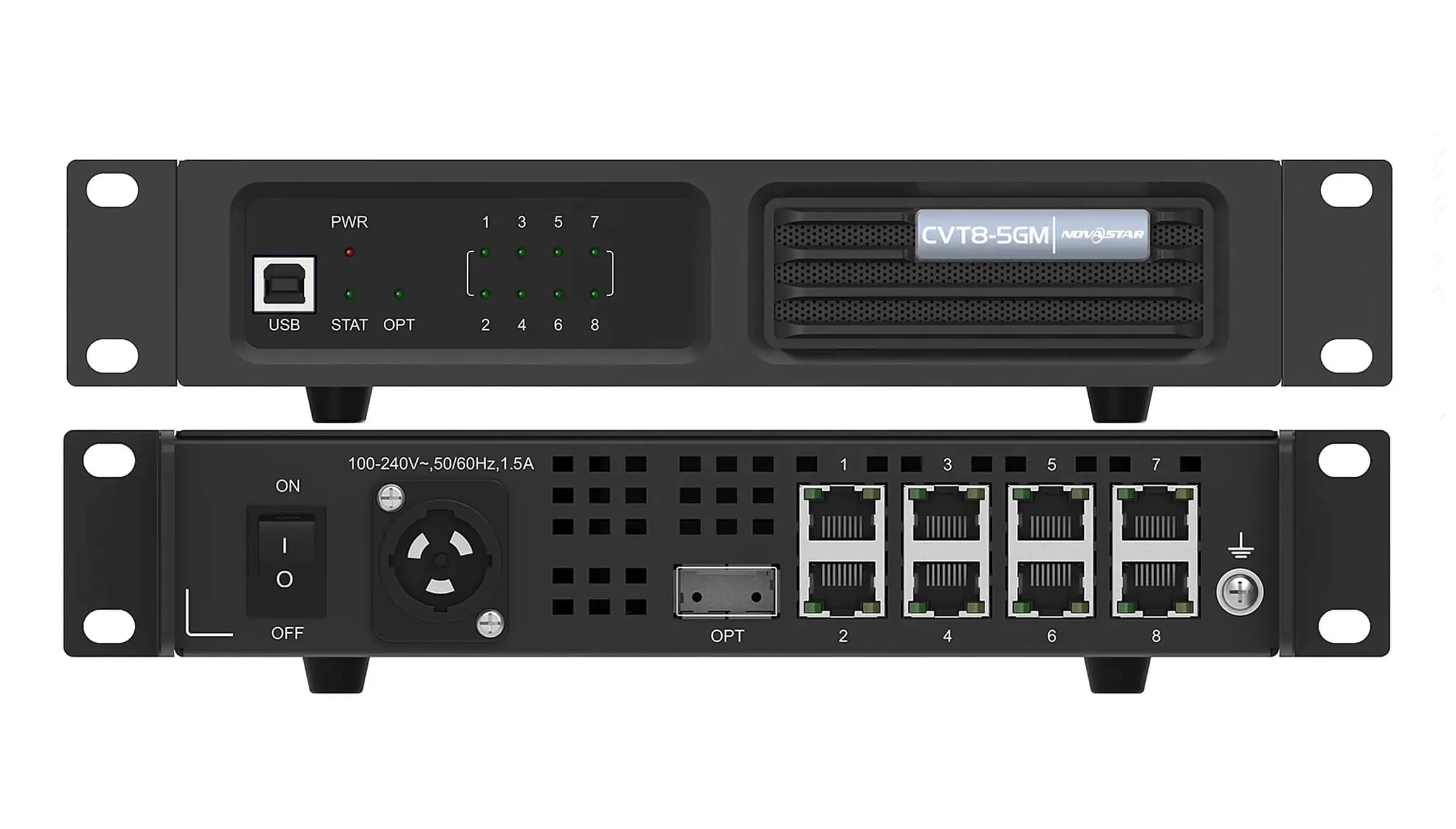

The front-panel labels provide a quick status check:

• USB Type-B: Firmware connection to NovaLCT V5.4.0 or later; not a cascading port.
• PWR: Steady light indicates normal power.
• STAT: Flashing indicates normal operation.
• OPT1: Steady light indicates a normal optical connection.
• 1–8: Steady lights indicate Ethernet connections.

The family illustration below carries a CVT8-5GS label; select the CVT8-5GM model and multimode optics when ordering.

The rear panel provides:

• Power input: 100–240 V AC, 50/60 Hz, 1.5 A. Do not connect or disconnect the PowerCON connector while energized.
• OPT: One 40G optical port with a replaceable module.
• Ports 1–8: Eight 5G BaseT connections. Solid green indicates a connection; flashing yellow indicates data activity.

Operate within −20°C to +45°C and 10–80% RH, without condensation. These limits do not establish weatherproofing. For outdoor-screen projects, protect the converter from rain and moisture and provide ventilation. NovaStar’s installation guidance also requires a restricted-access location.

• The optical link supports up to 40 Gbit/s; each Ethernet port supports up to 5 Gbit/s.
• The optical module is hot-swappable, but removing it interrupts that signal path. Plan maintenance or system redundancy before a live event.

• Use 850 nm optics with 50/125 μm, eight-core OM3/OM4 multimode fiber and MPO connectors.
• NovaStar specifies insertion loss ≤0.1 dB and return loss ≥50 dB. Confirm the complete cable assembly with the supplier and keep connector end faces clean.

• Use compatible 5G receiving hardware and verify port mapping before commissioning.
• NovaStar’s current 5G cable guidance specifies CAT6A S/FTP with compatible shielded connectors. Test installed runs; do not assume any CAT6 cable will deliver reliable 5G operation.

• Connect the computer through USB Type-B for converter firmware maintenance.
• Check power, optical-link and Ethernet indicators separately when diagnosing a blank screen. A link light alone does not confirm correct screen mapping or video input.

• The connecting piece shown above can fit on either side of the converter.
• NovaStar specifies four M5 rack-fixing screws and a rack capable of supporting at least four times the assembly’s weight. Allow access to cables and ventilation.

The diagram below shows the signal path in text: compatible sending device → optical fiber → CVT8-5GM → Ethernet cables → LED receiving cards/display.

• Outdoor displays: Place conversion equipment in a protected equipment area and check the full cable route.
• Indoor high-resolution screens: Verify receiving-card compatibility and controller loading capacity.
• Video walls: Configure mapping and synchronization in the control system; the converter alone does not synchronize content.
• Events: Test the complete signal chain before the show and plan recovery from cable or device failure.

For a church LED screen project, select the converter after confirming the controller and cabinet hardware.

Novastar CVT8-5GM pricing requires a current supplier quote. No current manufacturer list price was verified for this guide. Compare delivered quotations for the same model, optical modules and accessories.

Buying considerations:

• System fit: Supply the controller/output-card model, receiving cards, cable type and route length.
• Compliance: Confirm the certifications needed for the installation region.
• Package: NovaStar lists two 40G optical modules, one for the controller, plus power/USB cables and mounting parts. Confirm the seller’s exact bundle.
• Total cost: Include fiber, tested Ethernet cabling, shipping, taxes and any required spares.
• Support: Obtain written warranty terms, lead time and firmware-support arrangements.

Ask for a dated, itemized quotation before comparing suppliers.

The Novastar CVT8-5GM fits compatible 5G LED systems that need a multimode optical link within the specified OM3/OM4 reach. Its value depends on system compatibility, cable quality and installation conditions, rather than a general promise of better picture quality.

Before purchase, confirm the controller output, receiving cards, optics, routed distances and complete supplied package. Before handover, test every used port with the intended display configuration and record the working firmware and cable layout for future maintenance.
