Novastar MX40 Pro: Key Features and Real-World Applications

The Novastar MX40 Pro is a flagship all-in-one LED display controller designed for advanced video processing and seamless control. It combines cutting-edge hardware with NovaStar’s proprietary Vision Management Platform (VMP) software to deliver exceptional performance in demanding environments.

With20 Ethernet ports and 4x 10G optical ports, the MX40 Pro supports up to 9 million pixels, making it ideal for large-scale LED installations. Its robust feature set includes support for HDR, 3D functionality, low-latency processing, and precise color calibration, ensuring that every pixel on your LED display is optimized for clarity and vibrancy.

Whether you’re working in live events, film production, or immersive xR environments, the MX40 Pro All-in-One Controller offers the tools you need to create stunning visuals with ease.

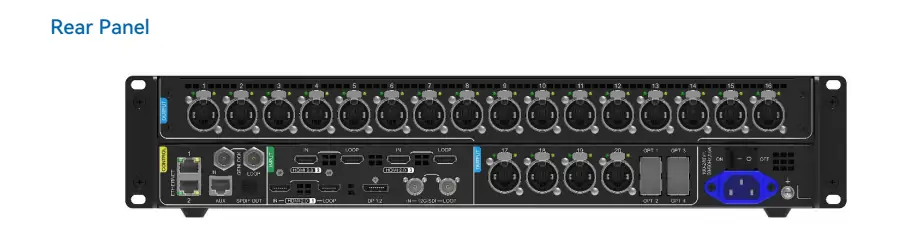

The Novastar MX40 Pro boasts a sleek and functional design, with a front panel featuring a 3.5-inch TFT screen, intuitive knob controls, and LED indicators for real-time status monitoring. On the rear panel, you’ll find an impressive array of inputs and outputs:

• 3x HDMI 2.0(with loop-through): Supports resolutions up to 4096×2160@60Hz.
• 1x DP 1.2: Delivers high-quality video input with support for 8K resolution.
• 1x 12G-SDI: Ideal for broadcast-grade video with frame rates up to 60Hz.

• 20x Gigabit Ethernet ports: Each port supports up to 659,722 pixels at 8-bit/60Hz.
• 4x 10G optical ports: Enable long-distance transmission with synchronous output.
• 1x SPDIF digital audio output: Allows seamless audio integration.

• 2x Ethernet control ports: Facilitate cascading and centralized management via VMP.
• Genlock signal input: Ensures frame synchronization for multi-device setups.
• Auxiliary port: Connects to central control systems for enhanced functionality.

The MX40 Pro’s robust build quality and versatile connectivity options make it a reliable choice for professionals seeking a future-proof solution.

The Novastar MX40 Pro is packed with advanced features that cater to the needs of modern LED display professionals. Let’s break down some of its standout capabilities:

Achieve unparalleled uniformity with pixel-level brightness and color calibration. The MX40 Pro works seamlessly with NovaStar’s CC3 calibration software and scientific-grade cameras like the C3200 to ensure every LED performs optimally.

Supports up to 4 independent 4K layers, each with customizable scaling modes: Custom, Pixel-to-Pixel, Snap to Canvas, and Fill Screen. Adjust layer priorities in Z-order for dynamic visual compositions.

The MX40 Pro supports HDR10 and HLG, delivering stunning contrast and vibrant colors. Its 14-channel color correction and 3D LUT (.cube) file support allow for precise adjustments, while the Dynamic Booster enhances image details and reduces power consumption.

With 0-frame latency in Send-Only Controller mode, the MX40 Pro ensures real-time responsiveness. Pair it with compatible 3D glasses and emitters to create immersive stereoscopic effects.

Automatically adapts to frame rates ranging from 23.98 Hz to 240 Hz, ensuring consistent brightness and smooth motion. The Shutter Fit feature adjusts driver IC parameters for xR camera shooting scenarios.

Save up to 128 customizable presets for quick access to frequently used display settings. This feature is invaluable for live events and multi-scene productions.

Here’s a detailed breakdown of the Novastar MX40 Pro specs:

Electrical Specifications:

• Power Input:100-240V~, 50/60Hz
• Max Power Consumption:95W

Video Source Compatibility:

• HDMI 2.0:Up to 4096×2160@60Hz
• DP 1.2:Up to 8192×1080@60Hz
• 12G-SDI:Up to 4096×2160@60Hz

Load Capacity:

• Max Device Load:9 million pixels
• Max Output Resolution:16,384 × 16,384 pixels

Ethernet Port Load:

• 8-bit@60Hz:659,722 pixels
• 10-bit@60Hz:494,791 pixels
• 12-bit@60Hz:329,861 pixels

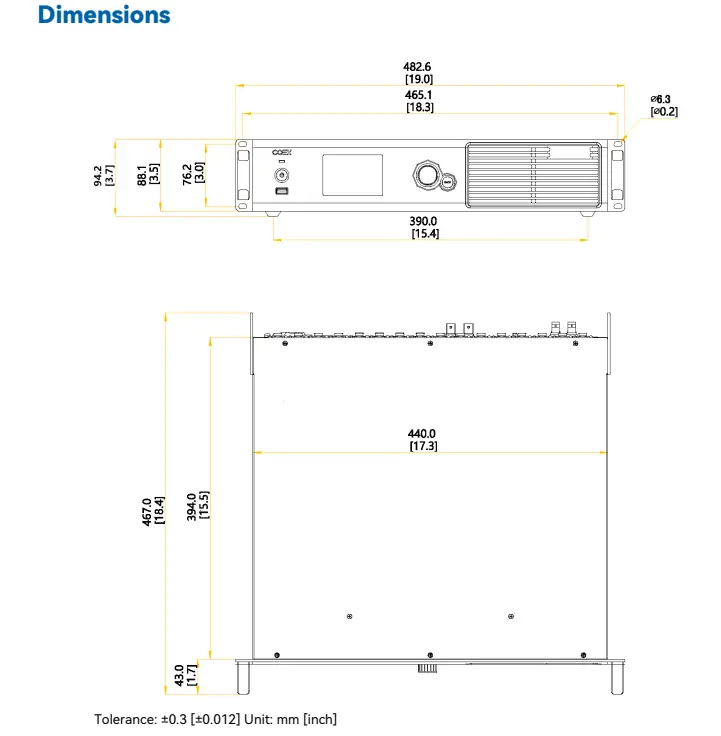

Physical Dimensions:

• Dimensions:6 mm × 94.2 mm × 467.0 mm
• Weight:5 kg (net), 10.5 kg (gross)

Certifications:
Compliant with CCC, CE, RoHS, FCC, IC, UL, CB, KC, EAC standards.

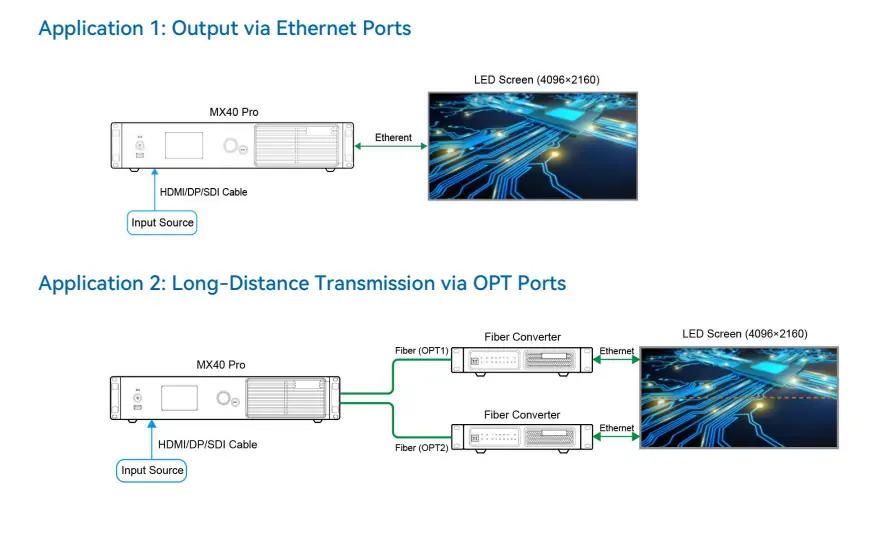

The versatility of the Novastar MX40 Pro makes it suitable for a wide range of applications:

Enhance the visual impact of live performances with vibrant, high-resolution displays. The MX40 Pro’s low latency and multi-layer support ensure smooth playback, even in fast-paced environments.

Achieve cinematic-quality visuals with ultra-high frame rates and precise color calibration. The MX40 Pro eliminates flickering and artifacts, making it perfect for xR stages and green-screen setups.

Create immersive fan experiences with massive LED screens. The MX40 Pro’s robust load capacity and Genlock synchronization ensure flawless operation during high-stakes broadcasts.

Bring exhibits to life with 3D effects and dynamic content. The MX40 Pro’s ability to handle irregularly shaped screens adds a creative edge to museum installations.

The Novastar MX40 Pro price typically starts at around $6,925 USD, depending on configuration and region. While this may seem steep compared to entry-level controllers, the MX40 Pro’s advanced features, scalability, and reliability justify the investment.

For professionals who demand uncompromising performance, the MX40 Pro offers exceptional value. Its compatibility with NovaStar’s ecosystem of receiver cards and VMP software further enhances its capabilities, making it a future-proof solution for years to come.

The Novastar MX40 Pro redefines what’s possible in LED display control. With its advanced features, robust build quality, and versatile connectivity options, it’s the ultimate choice for professionals seeking precision and performance. Whether you’re managing live events, virtual productions, or large-scale installations, the MX40 Pro delivers the tools you need to create unforgettable visual experiences.

Investing in the Novastar MX40 Pro LED Controller is not just about purchasing a device—it’s about unlocking limitless creative potential. Explore its capabilities today and elevate your projects to new heights!
