Novastar BR460-1 Pro: Full Specs and Key Features Guide

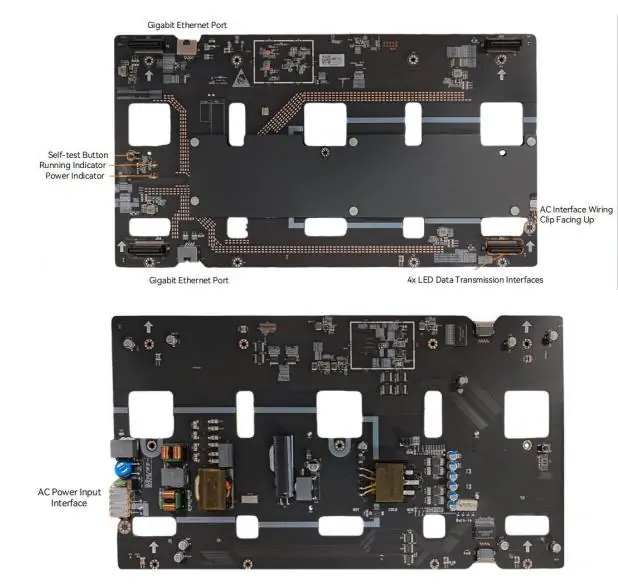

Novastar BR460-1 Pro is a revolutionary LED display control board developed by NovaStar Tech Co., Ltd. It combines a power module and receiving card into one compact package, making it an all-in-one solution for powering and controlling LED modules. Designed for professional-grade LED displays, the BR460-1 Pro supports a wide input voltage range of 90 VAC to 264 VAC, which is converted to direct current (DC) to directly power screen modules.

This product is particularly notable for its advanced safety mechanisms, including undervoltage, overvoltage, overcurrent, overpower, and short-circuit protections. These features ensure reliable operation and extend the lifespan of your LED display system. Additionally, the BR460-1 Pro is optimized for PWM driver ICs, offering impressive load capacities such as 512×512@60Hz for 8-bit video sources and 512×384@60Hz for 10-bit and 12-bit video sources.

The BR460-1 Pro is ideal for applications requiring high precision, vibrant colors, and seamless performance, such as digital signage, large-scale events, and commercial advertising. Its integration of power and control functions simplifies installation and reduces wiring complexity, making it a top choice for professionals in the industry.

The NovaStar BR460 Pro Receiving Card stands out due to its extensive feature set, which enhances both functionality and user experience. Below are some of its standout features:

One of the most significant innovations of the BR460-1 Pro is its integrated power module. This eliminates the need for external power supplies, streamlining the setup process. The card supports input voltages ranging from 90 VAC to 264 VAC and converts them to DC to directly power LED modules.

The BR460-1 Pro incorporates Image Booster, a suite of technologies that enhance image quality:

• Color Management: Supports standard color gamuts like Rec.709, DCI-P3, and Rec.2020, as well as custom gamuts for precise color reproduction.
• Precise Grayscale: Corrects 65,536 levels of grayscale (16-bit) to eliminate issues like brightness spikes, dips, and mottling at low grayscale levels.
• 22bit+ Grayscale Enhancement: Improves grayscale by 64 times, ensuring smooth images with rich details in dark areas.

The BR460-1 Pro supports HDR10 and complies with SMPTE ST 2084 and ST 2086 standards. It also supports HLG, delivering exceptional contrast and vibrant visuals.

Working with NovaStar’s high-precision calibration system, the BR460-1 Pro collects thermal distribution data and generates unique compensation data for each pixel. This effectively eliminates cabinet-level artifacts caused by uneven heat distribution.

The BR460-1 Pro enables pixel-level brightness and chroma calibration, ensuring consistent and uniform display performance across the entire screen.

With support for modules featuring driver ICs with built-in RAM, the BR460-1 Pro reduces video source latency to just 1 frame. It also supports 3D output when paired with compatible controllers.

The BR460-1 Pro works seamlessly with smart modules, enabling features like module ID management, storage of calibration coefficients, and real-time monitoring of temperature, voltage, and communication status.

For added reliability, the BR460-1 Pro includes loop backup and dual program backup systems. These ensure uninterrupted operation even during hardware or network failures.

The BR460 LED Receiving Card boasts impressive technical specifications that make it suitable for demanding applications. Below are the key details:

• Input Voltage: 90 VAC to 264 VAC
• Nominal Input: 100 VAC to 240 VAC
• Output Voltage: Adjustable (3.8 V/4.0 V/4.2 V)
• Output Current: 32 A (rated)

• For 8-bit video sources: 512×512@60Hz
• For 10-bit and 12-bit video sources: 512×384@60Hz

• Temperature: –20°C to +70°C
• Humidity: 10% RH to 90% RH (non-condensing)
• Altitude: -60 m to +5000 m

• Undervoltage protection: Engages above 70 VAC, disengages below 65 VAC
• Overvoltage protection: < 6.5 V, self-recovery
• Overcurrent and overpower protection: Triggered at 1.3 to 1.6 times rated current

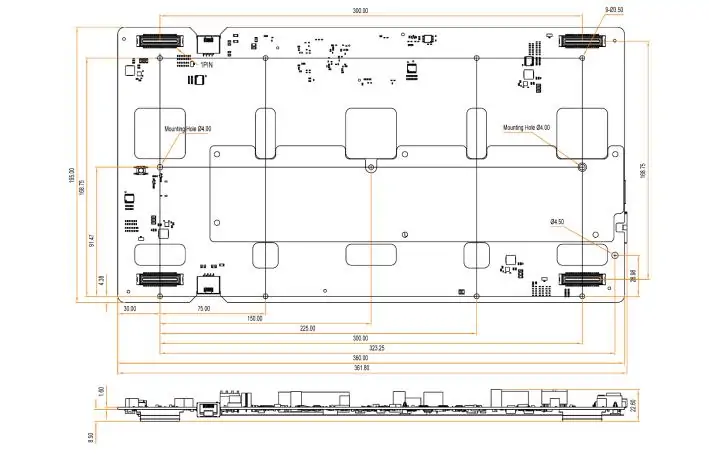

• Size: 361.8 mm × 195.0 mm × 22.6 mm
• Weight: 365.0 g

When compared to other NovaStar receiving cards, the BR460-1 Pro offers several distinct advantages:

Unlike traditional receiving cards, the BR460-1 Pro integrates a power module, reducing the need for additional components and simplifying installations.

The BR460-1 Pro’s Image Booster technology and HDR support surpass the capabilities of older models, delivering superior image quality.

With features like loop backup, dual program backup, and robust protection mechanisms, the BR460-1 Pro ensures higher reliability than its predecessors.

The price of the NovaStar BR460 Pro Receiving Card varies depending on factors such as quantity, region, and distributor. While specific pricing information may not be publicly available, contacting authorized NovaStar dealers or distributors can provide accurate quotes tailored to your needs.

Given its advanced features and performance, the BR460-1 Pro represents excellent value for professionals seeking a premium LED display control solution.

Novastar BR460-1 Pro is a game-changing LED display control board that combines power management, advanced image processing, and robust safety features into a single package. Its ability to deliver high-resolution visuals, precise calibration, and reliable performance makes it an ideal choice for professionals in the LED display industry.

Whether you’re setting up a small indoor display or a large-scale outdoor installation, the NovaStar BR460 Pro Receiving Card offers the tools and features needed to achieve outstanding results. With its innovative design and comprehensive feature set, the BR460-1 Pro sets a new standard for LED display control boards.

Investing in the BR460 LED Receiving Card ensures that your LED display system is equipped with state-of-the-art technology, ready to meet the demands of today’s dynamic visual environments.
