A bar LED display takes the space nothing else uses — the shelf edge, the counter lip, the narrow strip above a bar back, the aisle header — and turns it into a digital sign. It is the long, slim screen that replaces a paper price tag with full-motion video, or the menu board behind a bar that updates drink specials from a phone. The format is unusual. The applications are everywhere once you start looking.
This guide covers bar LED displays: what distinguishes them from standard screens, the types available, what they cost, and how to choose the right one for your space.
1. What is a Bar LED Display?
A bar LED display is an ultra-wide, narrow-format digital screen built from LED modules arranged in an elongated aspect ratio — typically 16:3, 32:9, or fully custom. Unlike a standard 16:9 screen that looks out of proportion when mounted on a shelf edge or bar counter, a bar LED display is purpose-built for spaces where height is limited but width is available.
Two distinct technologies share the “bar display” label. LED bar displays use direct-view LED modules in a strip form factor, offering the high brightness and seamless design of LED technology in a compact package. Stretched bar LCDs use custom-cut LCD panels in similar ultra-wide formats, trading some brightness and ruggedness for lower cost and finer pixel density. Both serve the same function — digital signage in narrow spaces — but the right choice depends on the environment and budget.
The defining characteristic of a bar LED display is the form factor. A typical shelf-edge unit measures 300 to 1,200 millimeters wide by 60 to 100 millimeters tall. A bar-back display might span 2 meters wide by 200 millimeters tall. These are not repurposed television panels with the top and bottom masked off. They are engineered from the panel level up to fit a specific spatial constraint.
2. Types of Bar LED Displays

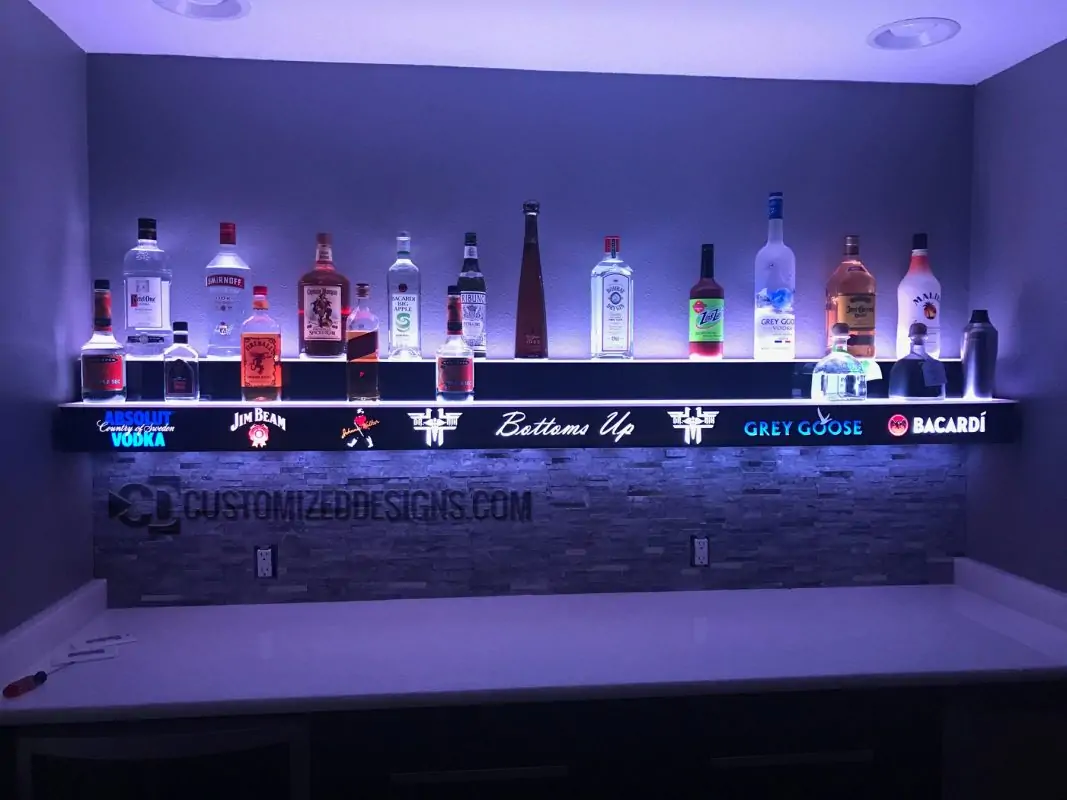

2.1 Shelf-edge LED bar displays
Shelf-edge LED bars are the narrowest form factor in the category. Standard dimensions run 300 to 600 millimeters wide by 60 millimeters tall, with a depth of 20 to 30 millimeters. They mount to standard retail shelving rails using magnetic brackets or clip-on fixtures. Brightness ranges from 600 to 1,200 nits for indoor aisles, and they typically run content from an embedded Android media player managed through a cloud CMS. These are the displays that show dynamic pricing, promotional videos, and product information at the point of purchase. Retailers report 10 to 30 percent sales uplift on promoted SKUs when replacing static shelf labels with video displays.

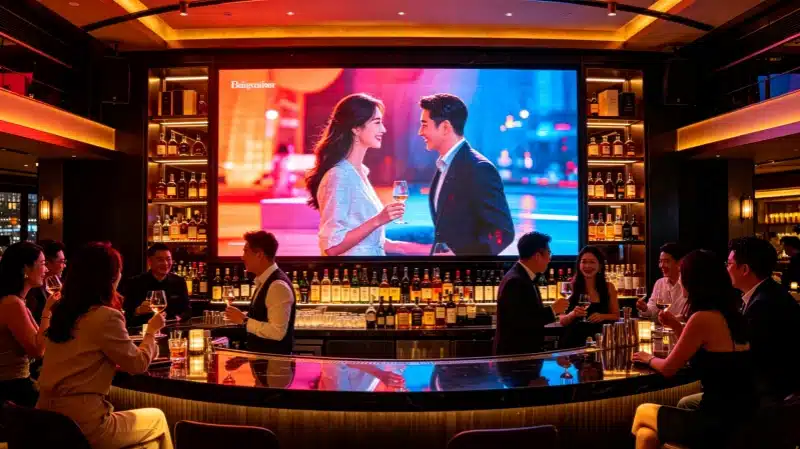

2.2 Bar counter and back-bar LED screens
Larger format bar LED displays are designed for hospitality environments — the back bar, the counter facade, the overhead menu zone above a service counter. Typical dimensions range from 1 to 3 meters wide by 150 to 300 millimeters tall. Pixel pitches of P1.5 to P2.5 are standard for viewing distances of 2 to 4 meters. These displays handle drink menus, promotional content, sports broadcasts, and ambient visuals. In nightclubs and cocktail bars, higher brightness models at 1,500 to 3,000 nits can compete with the venue’s lighting rig without washing out.
2.3 Free-standing and portable bar LED displays
Portable bar LED displays come in self-contained floor-standing units, often on casters. They serve event spaces, pop-up bars, trade show booths, and temporary retail activations where permanent installation is not an option. These are typically rental-friendly units with quick-connect panels, integrated media players, and tool-less assembly. Rental rates run $100 to $300 per day depending on size and pixel pitch.
2.4 Curved and creative bar LED displays
Flexible LED modules enable bar displays that curve around a counter, wrap a column, or form a wave along a back-bar wall. The LED modules are mounted on bendable substrates with custom framing behind them. Curved installations carry a 20 to 40 percent premium over equivalent flat displays due to the custom engineering and more complex content mapping. The visual impact justifies the premium in flagship hospitality venues where the display is part of the interior design rather than a screen added to it.
2.5 Transparent bar LED displays
Transparent LED bars mount to glass partitions, window fronts, or glass shelving. The open-structure LED grid allows light and visibility to pass through while displaying content on the surface. Pixel pitches run P3 to P5, with brightness of 1,500 to 2,500 nits to compete with ambient daylight. These are used in high-end retail windows, hotel lobby bars with glass partitions, and premium liquor displays where the product behind the screen should remain visible.
3. Key Features of Bar LED Screens
3.1 Pixel pitch and viewing distance
Bar LED displays are viewed up close. A shelf-edge display at a supermarket is only 30 to 50 centimeters from the shopper’s eyes. A back-bar display in a restaurant is 2 to 4 meters from the customer at the counter. Pixel pitch must match the closest viewing position.
| Viewing distance | Recommended pixel pitch | Typical application |
|---|---|---|
| 0.3–1 m | P1.2–P1.5 | Shelf-edge displays, display cases |
| 1–3 m | P1.5–P2.0 | Bar counters, retail counter displays |
| 2–4 m | P2.0–P2.5 | Back-bar menus, restaurant menu boards |
| 4–8 m | P2.5–P3.9 | Overhead aisle displays, storefront banners |
The most expensive mistake with bar LED displays is over-specifying pitch for a display mounted high behind a bar where nobody gets within 3 meters. P1.5 and P2.5 are indistinguishable at 4 meters, but P1.5 costs roughly 50 percent more.
3.2 Brightness for the environment
A shelf-edge display in a supermarket aisle with fluorescent lighting needs 600 to 800 nits. A back-bar display in a dimly lit cocktail lounge needs only 500 to 700 nits. A window-facing bar display in a street-front café needs 1,500 to 2,500 nits. An outdoor patio display in direct sun needs 4,000 to 5,000 nits and IP65 weather sealing. Match the brightness to the ambient light. Over-specifying wastes power and money. Under-specifying means the display is invisible during the hours that matter.
3.3 Refresh rate and camera compatibility
Bar LED displays appear in the background of countless social media photos and videos every night. A refresh rate of 3,840 Hz or higher eliminates scan lines and flicker when the display is photographed or filmed. For any bar, restaurant, or retail environment where customers take pictures, this is a one-time hardware cost that protects the brand every time someone posts a photo.
3.4 Content management
A bar LED display without an easy way to update content becomes a static sign within weeks. Most bar LED displays run on an embedded Android system with cloud-based content management. The user uploads images or video, arranges them in a playlist, and schedules when each piece of content plays. For retail shelf-edge systems, the CMS should integrate with the store’s POS or ERP system to push price updates automatically. For hospitality, the CMS should allow staff to update a menu from a phone or tablet without touching the display hardware.
3.5 Connectivity and control
Standard connectivity includes Wi-Fi, Ethernet, HDMI input, and USB. For multi-display installations — a row of shelf-edge displays along an aisle, or a back-bar display split across multiple panels — the displays should support synchronized playback from a single controller. Daisy-chain power and data connections minimize cable clutter at the installation point.
4. Where Can Bar LED Display Be Used?
There are several factors involved in calculating the price of an LED video wall rental, including screen size, rental term, the type of rental LED video wall, and additional services such as installation and technical support. Below is a guide on how to calculate LED screen rental prices:
| Application | Typical size | Pixel pitch | Brightness | Content type |
|---|---|---|---|---|
| Supermarket shelf edge | 300–600 × 60 mm | P1.2–P1.5 | 600–800 nits | Dynamic pricing, promos |
| Bar counter menu | 1–2 m × 150–200 mm | P1.5–P2.0 | 600–800 nits | Drink menus, specials |
| Back-bar display | 2–4 m × 200–300 mm | P2.0–P2.5 | 800–1,500 nits | Brand content, sports, menus |
| Retail counter display | 600–1,200 × 60–100 mm | P1.2–P1.5 | 700–1,000 nits | Promos, product info |
| Nightclub bar facade | 2–5 m × 200–400 mm | P2.0–P3.0 | 1,500–3,000 nits | Ambient visuals, DJ sync |
| Café menu board | 1–2 m × 200–300 mm | P1.5–P2.0 | 700–1,000 nits | Menu, daily specials |
| Storefront window strip | 2–4 m × 100–200 mm | P2.0–P3.0 | 1,500–3,000 nits | Branding, promotions |
| Trade show booth | 1–3 m × 150–300 mm | P2.0–P2.5 | 1,000–1,500 nits | Brand content, demos |
The application dictates the form factor, and the form factor dictates the display specification. A shelf edge is about price communication. A back bar is about brand and atmosphere. A nightclub facade is about visual impact that reads in photos. Start with what the display is supposed to do for the business, then choose the format that delivers it.
5. How to Install Bar LED Display?
5.1 Mounting options
Bar LED displays use mounting hardware specific to the installation surface. Shelf-edge units use magnetic brackets, rail clips, or mini VESA mounts that attach to standard retail shelving. Wall-mounted back-bar displays use a lightweight aluminum frame anchored to the wall structure. Counter-mounted units sit in a recessed channel or attach to the counter edge with a bracket. Free-standing portable units require no installation beyond placement and power.
The structural load is modest — a 2-meter bar LED display weighs 15 to 30 kilograms including the mounting frame — but wall-mounted installations above customer areas should still be anchored to studs or structural backing, not drywall alone.
5.2 Power and cable management
Bar LED displays run on low-voltage DC power, typically 12 to 24 volts. Multiple units can daisy-chain from a single power supply, which simplifies cable routing in shelf-edge installations where dozens of displays run along a single aisle. For back-bar and counter displays, power and data cables should be routed through the wall or through a cable channel that matches the display housing. Visible cables undermine the premium look that a bar LED display is supposed to deliver.
5.3 Content setup and testing
Before the installation is signed off, run the display at full brightness for a 24-hour burn-in period. Load the initial content playlist and verify that every display in a multi-unit installation is synchronized. Test the CMS — can staff update a menu item or change a price from their phone? If the answer is no, the installation is not complete.
6. What is the Price of Bar LED Displays?
6.1 Hardware costs
| Display type | Price range |
|---|---|
| Shelf-edge LED bar (300–600 mm) | $100–$400 per unit |
| Bar counter LED display (1–2 m) | $500–$1,500 per unit |
| Back-bar LED display (2–4 m) | $1,000–$3,000 per unit |
| Curved or custom LED bar | Add 20–40% to flat equivalent |
| Transparent LED bar | $1,500–$2,500 per m² |
| Portable/rental LED bar | $100–$300 per day rental |
6.2 Additional costs
| Cost category | Share of hardware cost |
|---|---|
| Mounting hardware and brackets | 5–10% |
| Installation labour | 10–20% |
| Content management system (annual) | $100–$500 per year |
| Content creation (initial) | $500–$2,000 |
| Extended warranty (per year) | 5–10% of hardware |
For budgeting, a single back-bar LED display in a restaurant — 2 meters wide, P2.0, with mounting hardware, installation, and a year of CMS licensing — will run $1,800 to $4,500 fully installed. A supermarket aisle with 50 shelf-edge LED bars, a centralized CMS, and integration with the store’s POS system will run $12,000 to $25,000 for the full deployment.
These are indicative figures. Prices vary by manufacturer, pixel pitch, order volume, and installation complexity. Request itemised quotes from at least three suppliers.
7. How to Choose the Right Bar LED Display
7.1 Measure the space
The available width and height at the mounting location determine the display dimensions. A shelf edge with 55 millimeters of clearance cannot fit a 60-millimeter-tall display. A back-bar span of 2.4 meters needs either a single custom-length display or multiple standard units butted together. Measure first, then shop for displays that fit the measurements.
7.2 Match pixel pitch to viewing distance
If customers stand within a meter of the display — shelf edges, counter displays, display cases — P1.2 to P1.5 is appropriate. If the closest viewer is 2 to 3 meters away — back-bar displays, overhead menus — P2.0 to P2.5 is sufficient. Do not pay for resolution nobody can see.
7.3 Choose LED or LCD based on environment
LED bar displays offer higher brightness, longer lifespan, and a seamless surface at any length. LCD bar displays offer finer pixel density at a lower price point and wider viewing angles from IPS panels. For bright environments with ambient light — storefront windows, outdoor patios, sunlit atriums — LED is the correct choice. For indoor shelf edges with controlled lighting and budget sensitivity, LCD is worth evaluating alongside LED.
7.4 Verify the content management workflow
Who updates the display and how? If a bar manager needs to change the drink menu daily, the CMS must work from a phone or tablet with minimal training. If a supermarket needs to sync prices across 200 shelf-edge displays from the ERP system, the CMS must support API integration. Buy the CMS that matches the operational workflow, not the one with the most features on the datasheet.
7.5 Budget for installation, not just hardware
A $3,000 back-bar display with messy visible cables looks worse than a $1,500 display with a clean, recessed installation. Factor cable management, mounting hardware, and professional installation into the budget before comparing hardware prices. The cheapest display with the best installation often delivers a better result than the best display with a rushed install.
8. Bar LED Display FAQs
9. Conclusion
A bar LED display earns its place by fitting where a standard screen cannot. It slides onto a shelf edge, mounts behind a bar, wraps around a counter, or sits in a storefront window — and every one of those locations was wasted space before the display went in.
The specification decisions are straightforward. Measure the space. Match pixel pitch to how close people get. Match brightness to the ambient light. Choose LED for bright environments, long life, and seamless construction. Choose LCD for budget-sensitive indoor applications with tight viewing distances. And before you order hardware, confirm that the content management workflow matches how your staff actually works — because a display nobody updates is just an expensive strip of light.
