EagerLED EA960SP5 Stadium LED Display
Key features of the EA960SP5 stadium LED display:
✔ 960×960 mm stadium perimeter cabinet
✔ P5, P6.67, P8 and P10 pixel pitch options
✔ 60°–90° adjustable rear support
✔ Soft top cushion and flexible LED mask
✔ Rear maintenance access
✔ IP65 front / IP54 rear protection
✔ ≥3,840 Hz refresh rate
✔ 5,500–6,000 cd/m² brightness by configuration

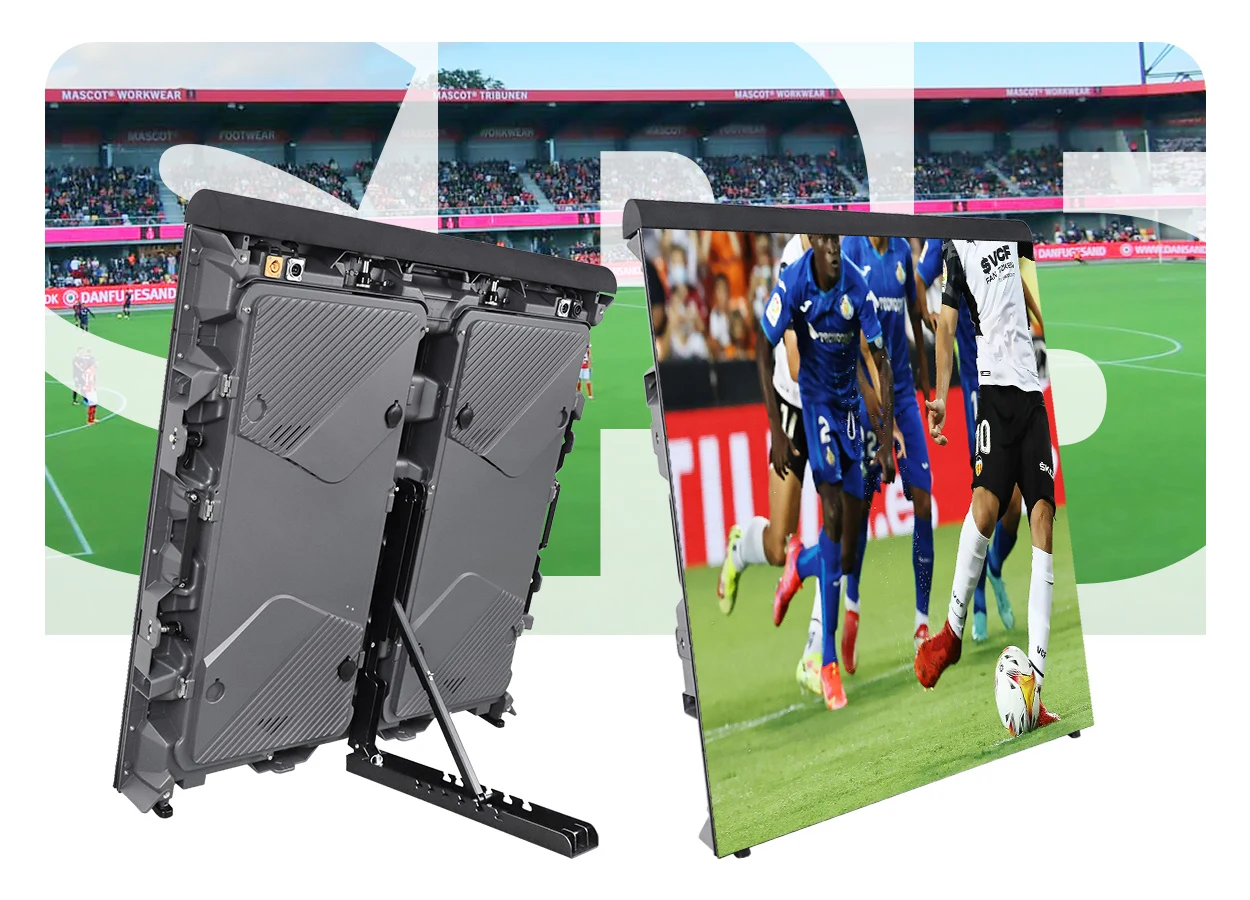

EA960SP5 Stadium LED Display
The EA960SP5 stadium LED display uses 960×960 mm cabinets for pitch-side advertising. Select P5, P6.67, P8 or P10 to match spectator distance and your budget. Explore our sports LED display range for other venue formats.

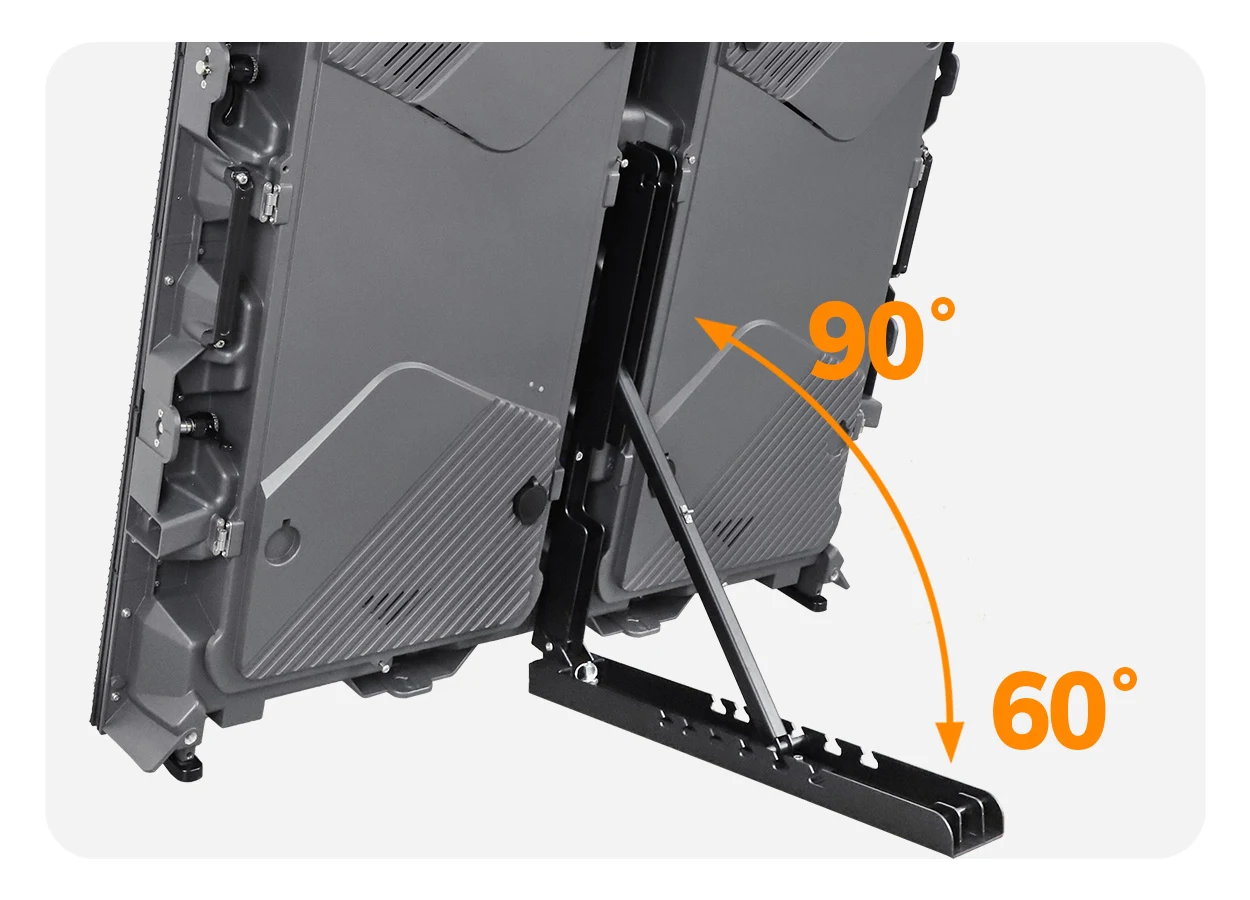

60°–90° Adjustable Support
Each cabinet has an adjustable rear bracket to set the screen angle from 60° to 90°. Position individual panels along the pitch boundary to suit the venue layout.

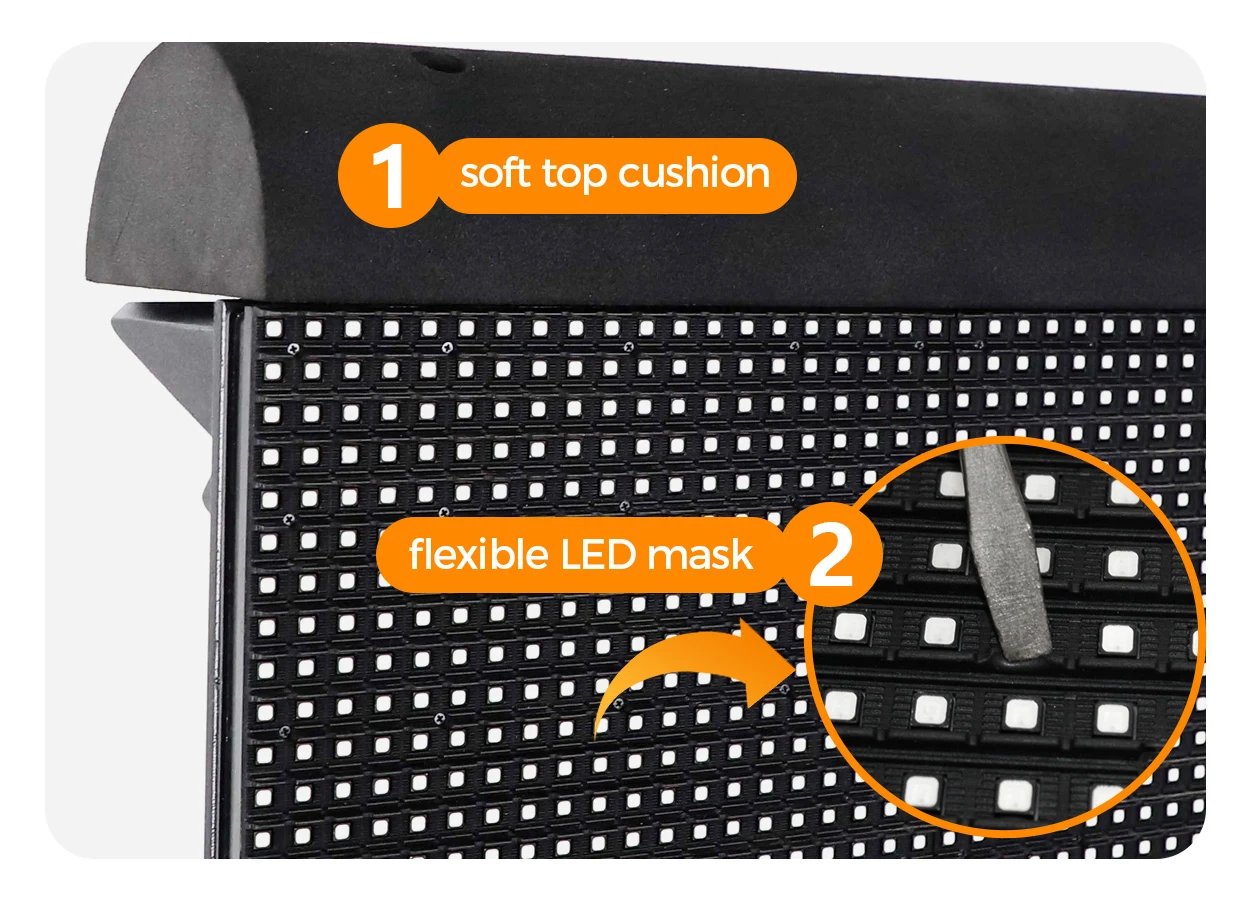

Soft Cushion and Flexible Mask
A soft top cushion and flexible LED mask help cushion accidental contact at the pitch boundary. The mask also helps protect LED lamps from direct impact.

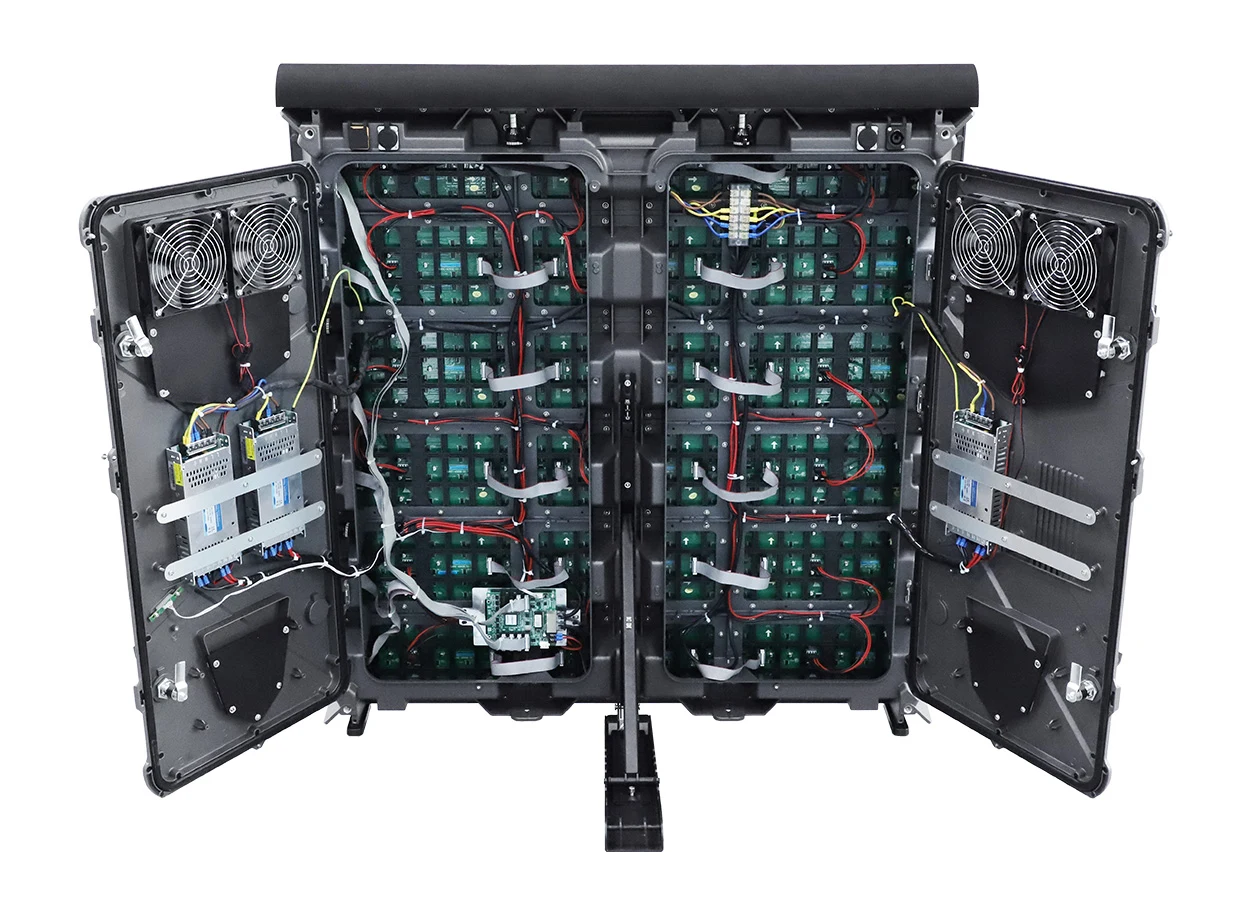

Rear Maintenance Access
Open the rear covers to reach internal components for inspection and servicing. Leave space behind the LED perimeter boards so technicians can work without removing the front display surface.

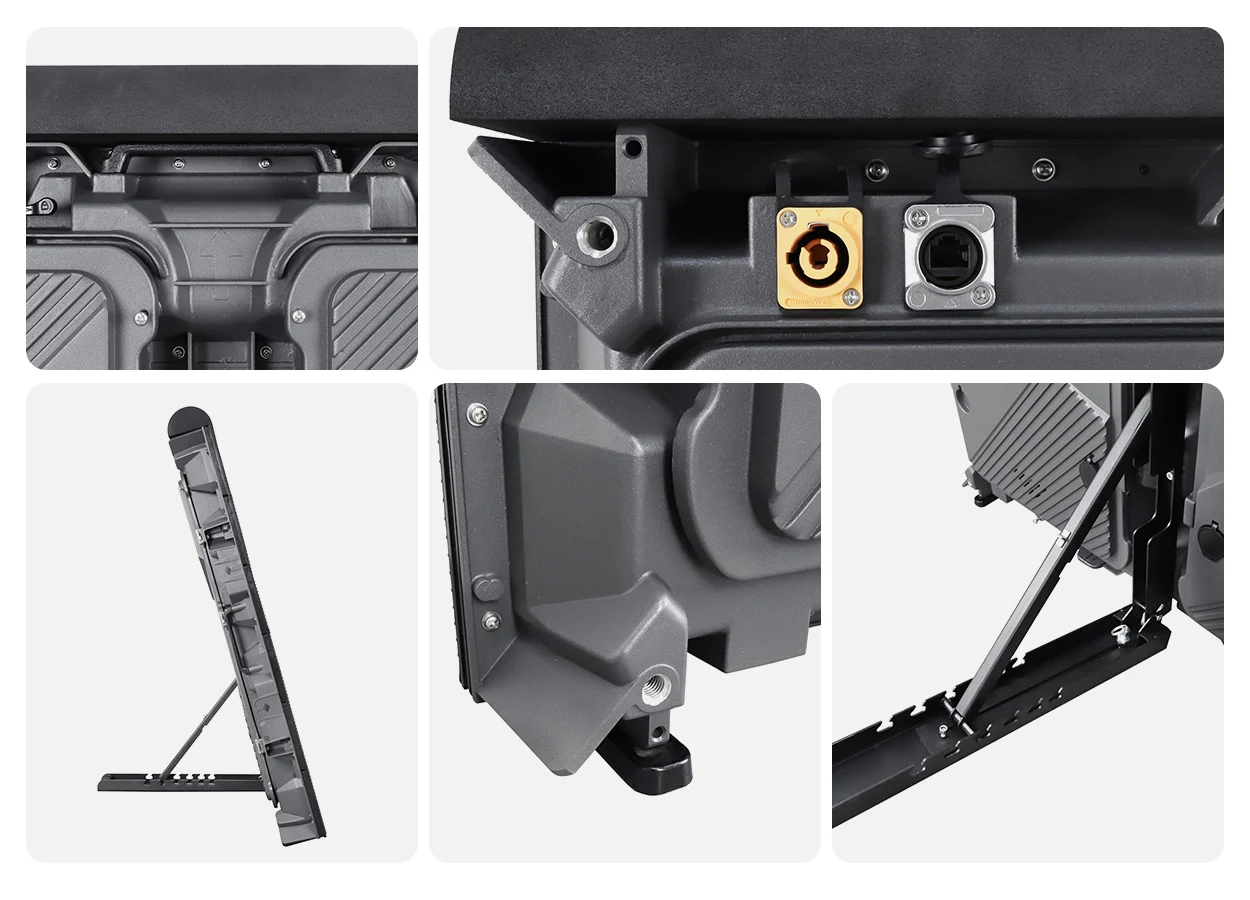

Practical Cabinet Details
Integrated handles help installers grip and position each 28 kg cabinet. The modular 960×960 mm format and 320×160 mm LED modules support consistent perimeter screen layouts.

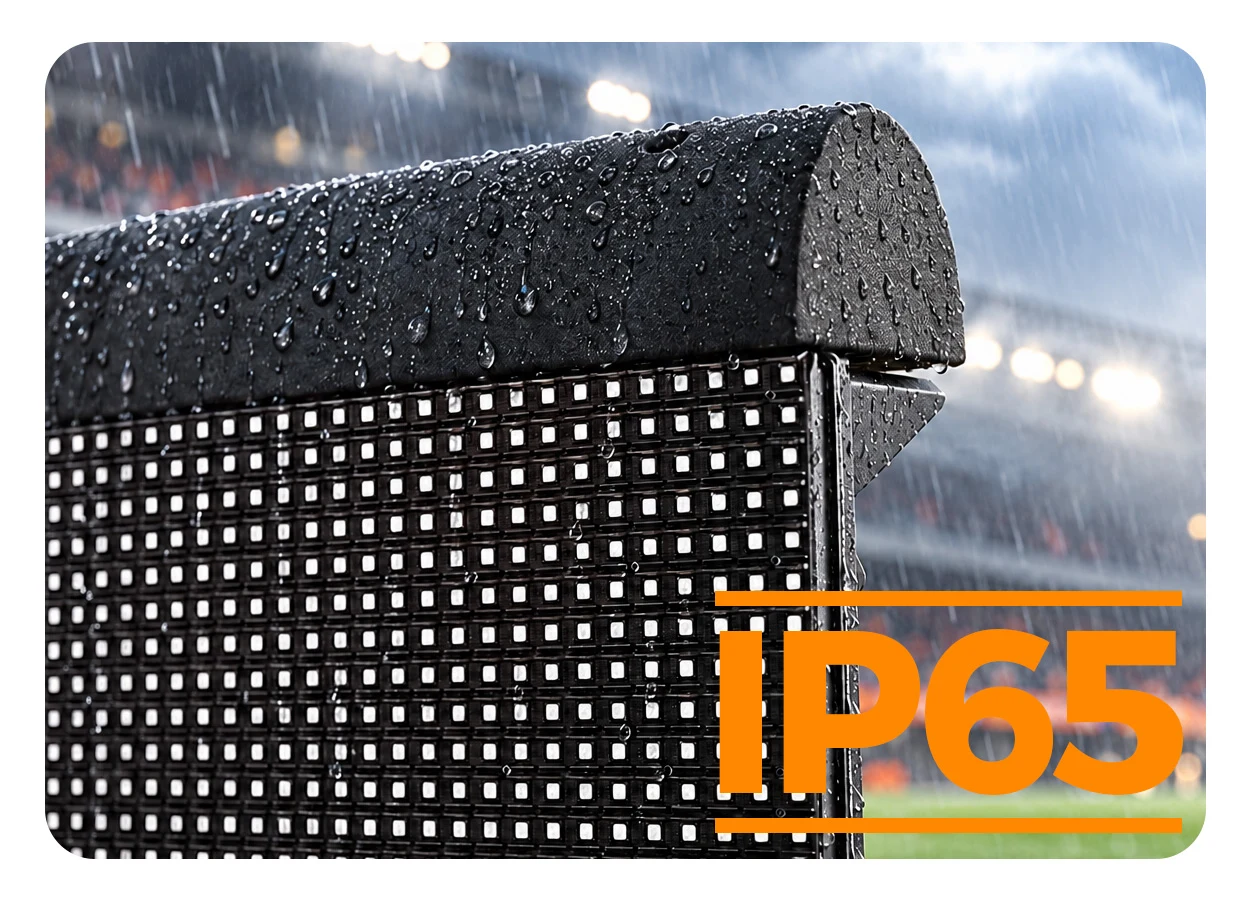

Outdoor Protection
The cabinet is rated IP65 at the front and IP54 at the rear. Plan installation and cable routing around these different protection levels for outdoor stadium use.
Clear Stadium Advertising
Configuration-specific brightness ranges from 5,500 to 6,000 cd/m². A refresh rate of at least 3,840 Hz helps reduce camera flicker, while the 140° viewing angle supports visibility from different spectator positions.
EA960SP5 Stadium LED Display Parameters
