EA960R5 Outdoor LED Billboard

EagerLED EA960R5 Outdoor LED Billboard

Key features of the EA960R5 outdoor LED billboard:

✔ 960×960 mm magnesium alloy cabinet
✔ P2.5–P10 pixel pitch options
✔ Rear maintenance access
✔ Three handles and four quick locks
✔ Concealed power and signal cabling
✔ IP65 dust and water protection
✔ Four cooling fans per cabinet
✔ ≥3840 Hz refresh rate and 140° viewing angle

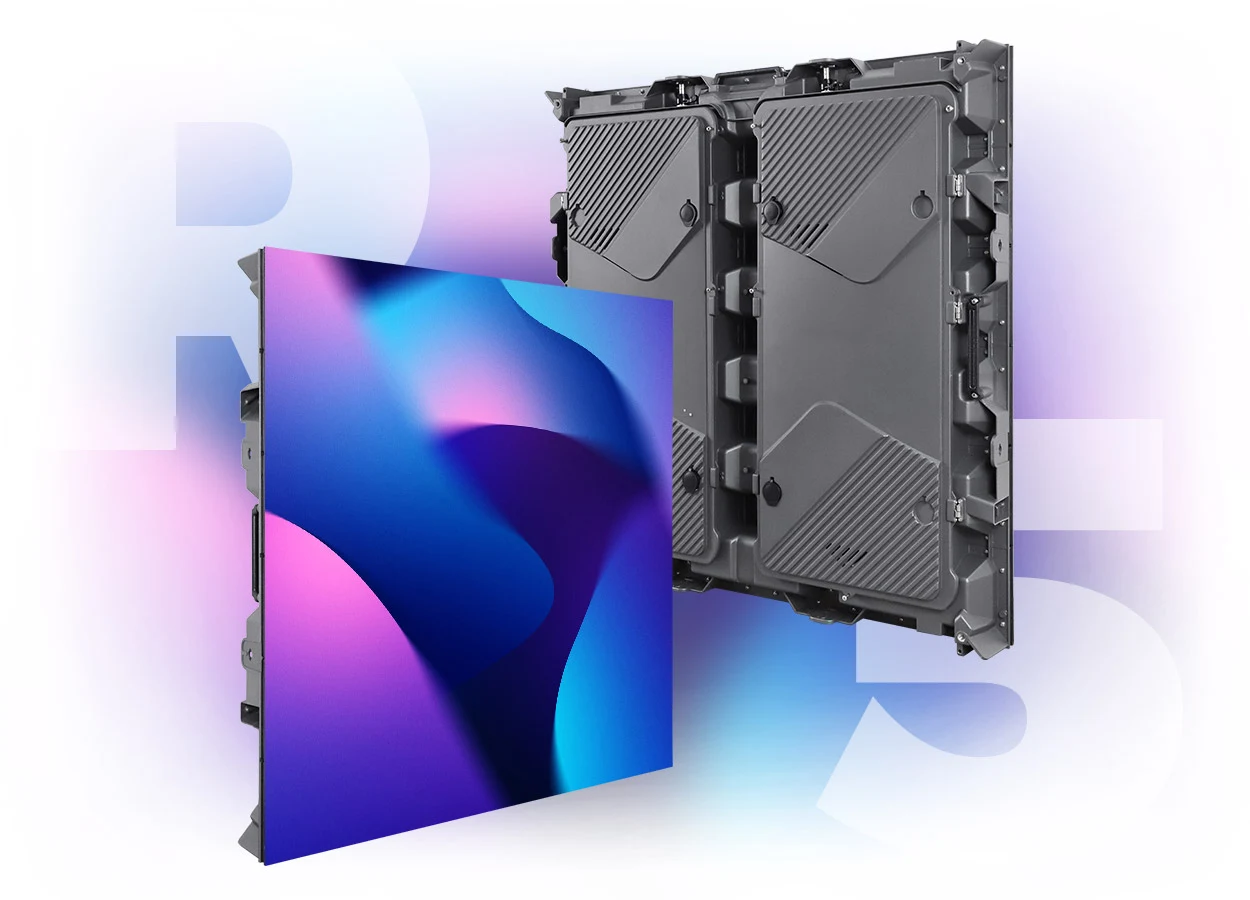

EA960R5 Outdoor LED Billboard

The EA960R5 outdoor LED billboard uses 960×960 mm die-cast magnesium cabinets for modular outdoor advertising screens. Choose from P2.5–P10 configurations to suit your viewing distance and project requirements.

Cabinet Handles and Quick Locks

Each 23 kg cabinet includes three handles and four quick locks for convenient handling and cabinet connection. The 960×960 mm format uses standard 320×160 mm LED modules.

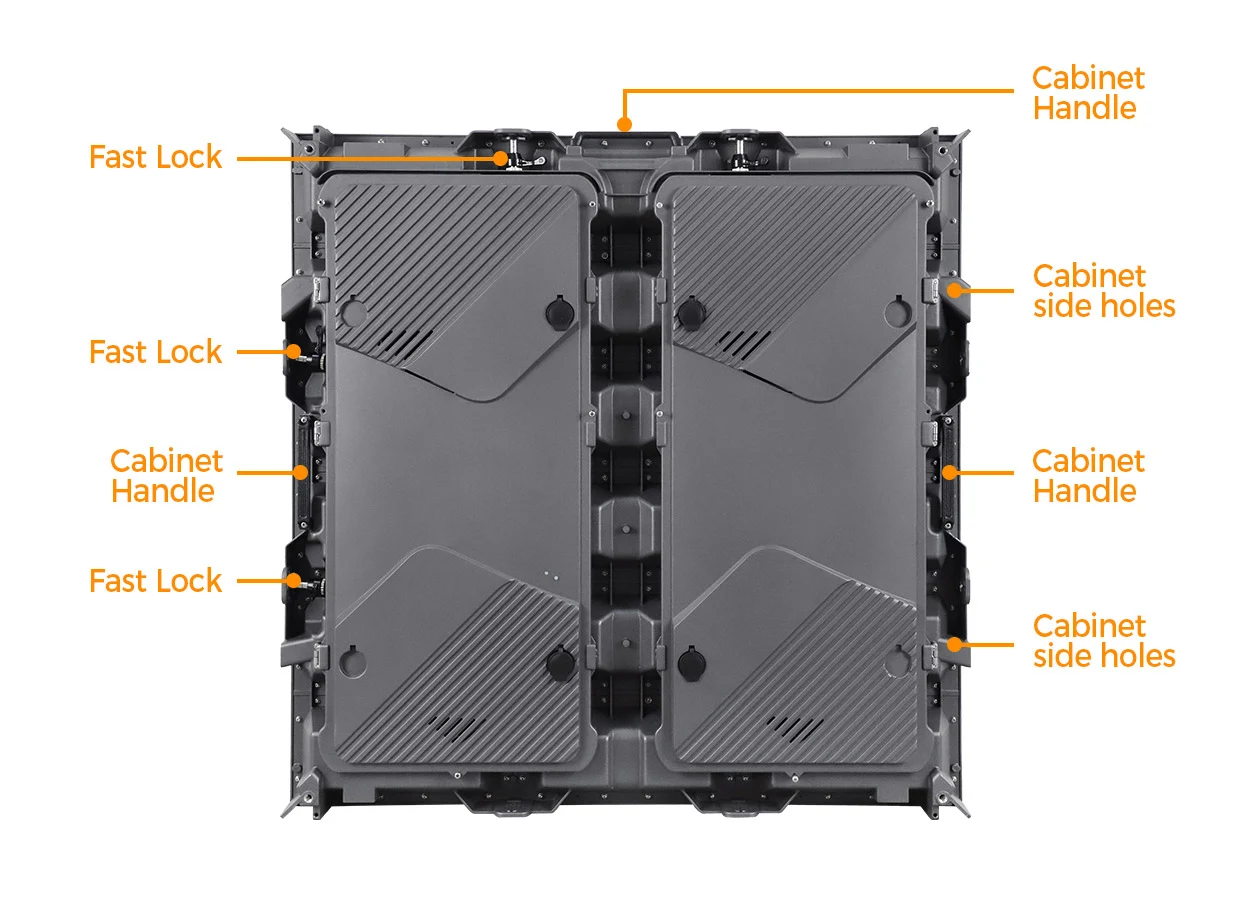

EA960R5 960 by 960 mm cabinet with labeled handles and quick locks

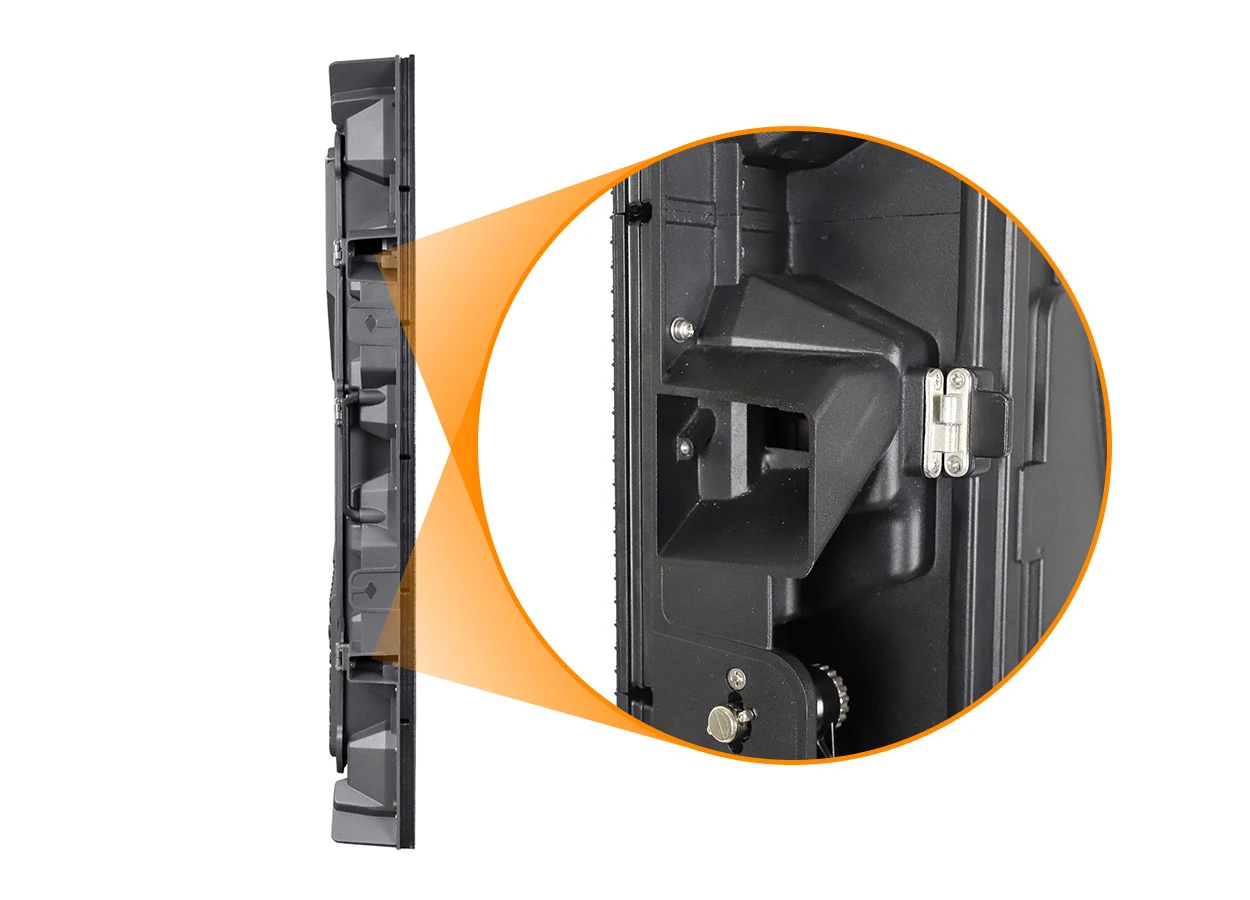

Concealed Cable Design

Side openings route power and signal cables between adjacent cabinets. Concealed connections keep the rear of the LED billboard neat and simplify cable organization.

Rear Maintenance Access

The opening rear cover provides access to internal components for inspection and servicing. Allow sufficient space behind the screen for maintenance.

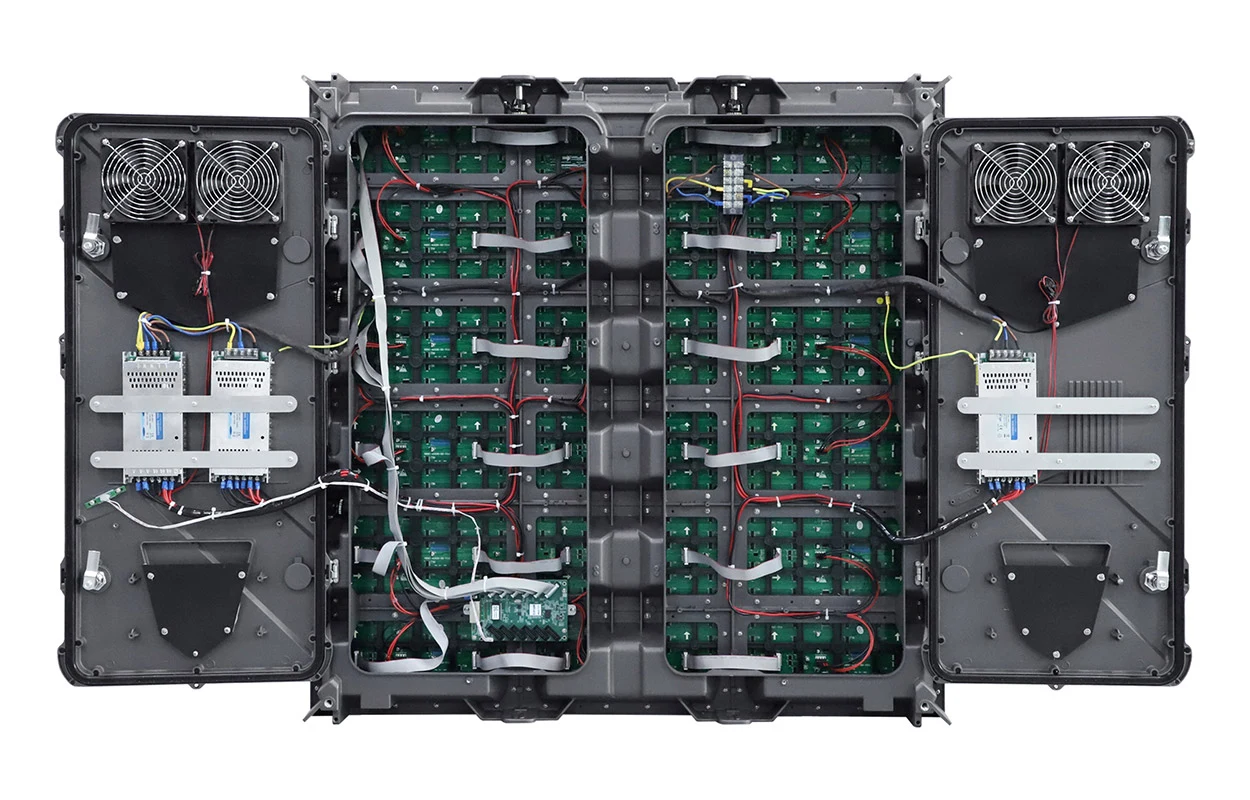

Open rear doors of the EA960R5 cabinet showing internal components

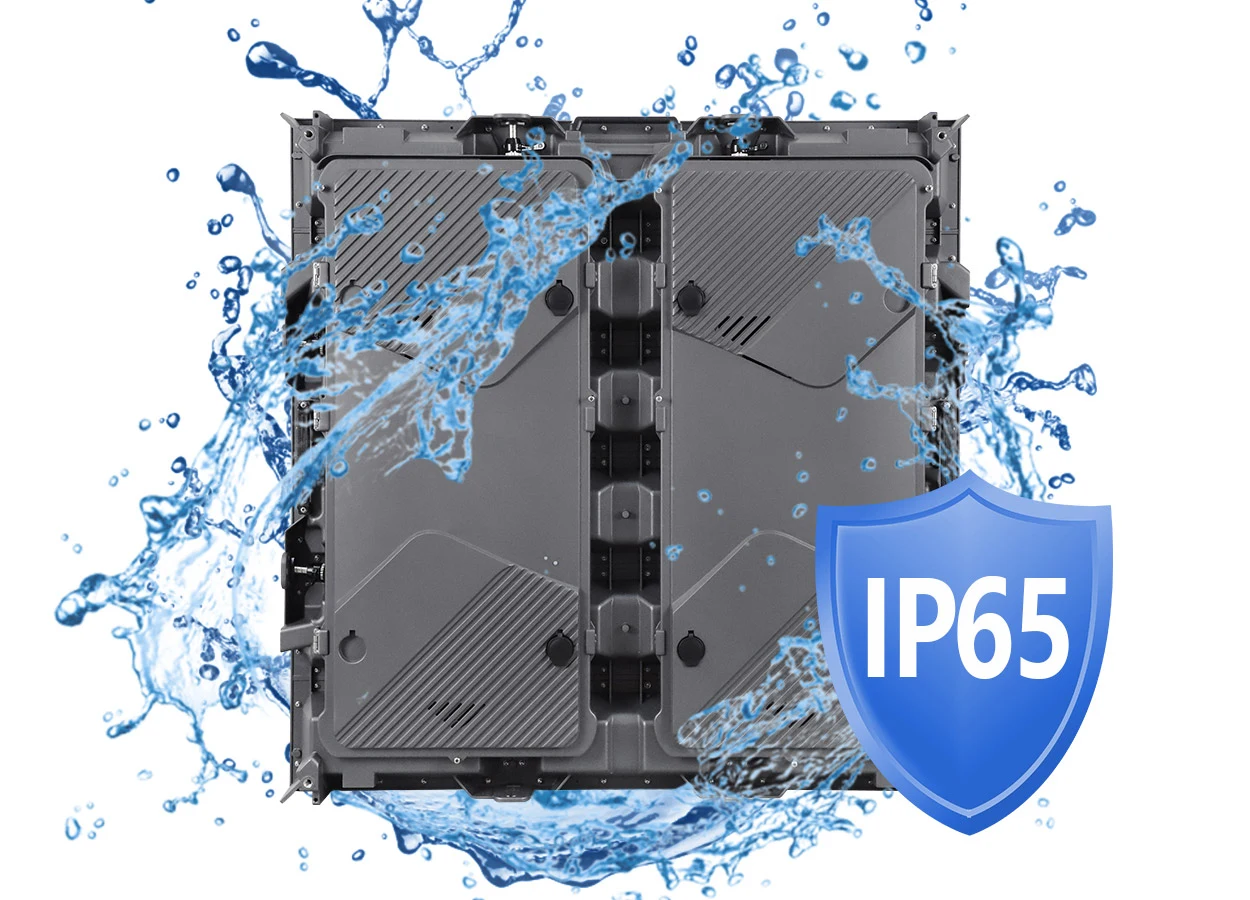

IP65 Outdoor Protection

The EA960R5 cabinet has an IP65 protection rating against dust and water jets. It is designed for outdoor advertising installations exposed to changing weather.

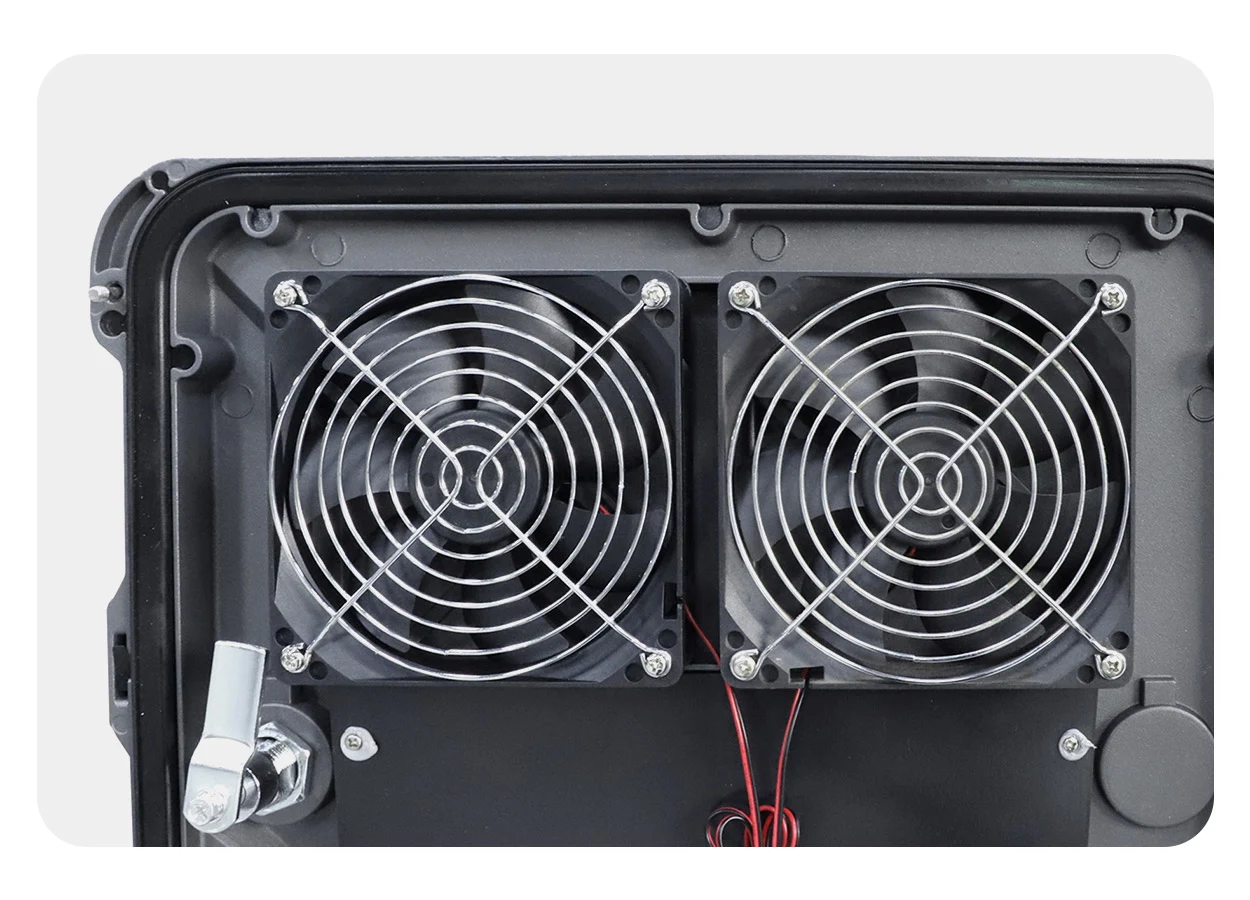

Efficient Heat Dissipation

Four cooling fans in the rear cover help remove heat from the cabinet. The display supports a refresh rate of at least 3840 Hz and a 140° viewing angle.
