The main features of EA1000F1 outdoor LED video walls are as follows:

• 5 Cabinet Sizes for Choice
• 90° Right Angle Splicing and Arc Splicing
• 6000 CD/㎡ High Brightness
• Front and Rear Service
• Hard Connection Design
• 3840Hz High Refresh Rate
• Low Power consumption

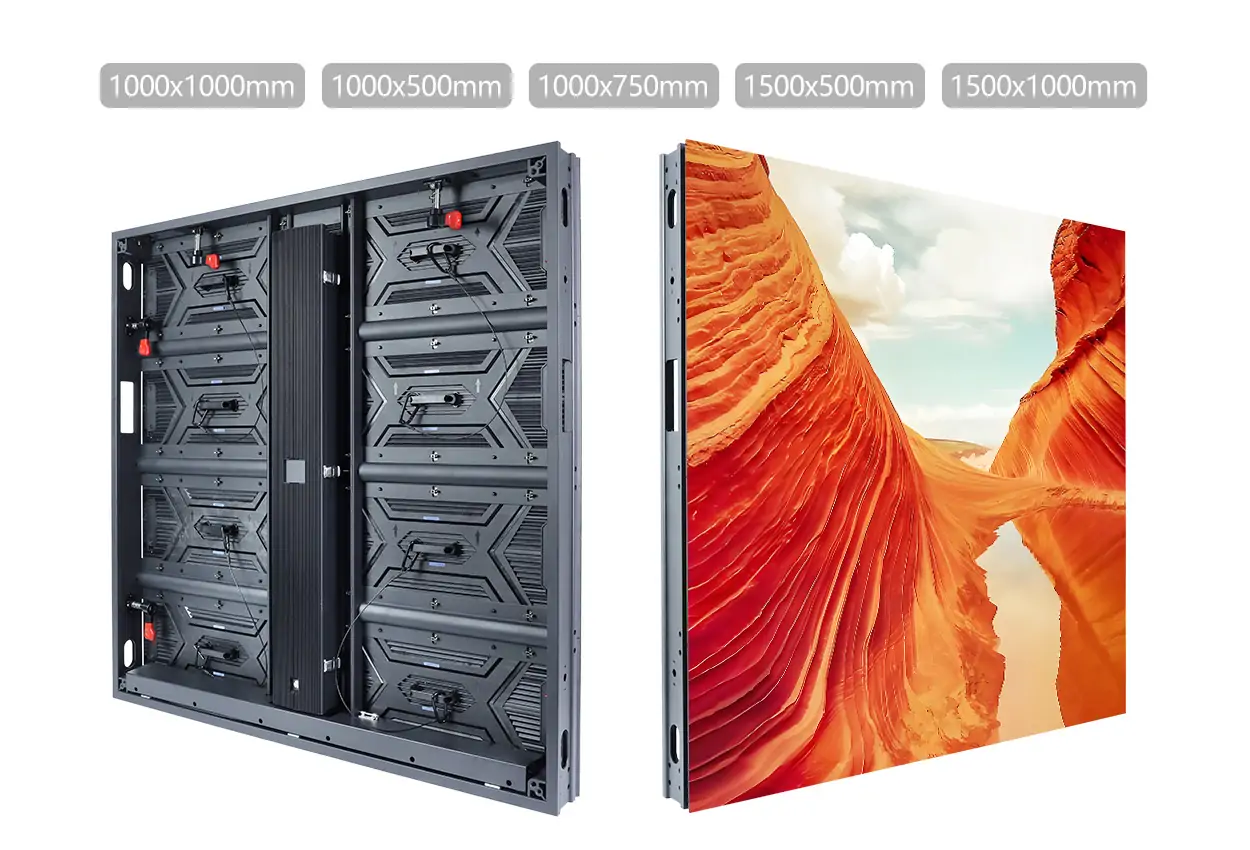

There are 5 cabinet sizes for choice including 1000x1000mm, 1000x500mm, 1000x750mm, 1500x500mm, 1500x1000mm. EA1000F1 outdoor led display screen supports a dual-service design, 90° seamless splicing design, hard connection design, and multiple pixel pitches from P2.97 to P10.42.

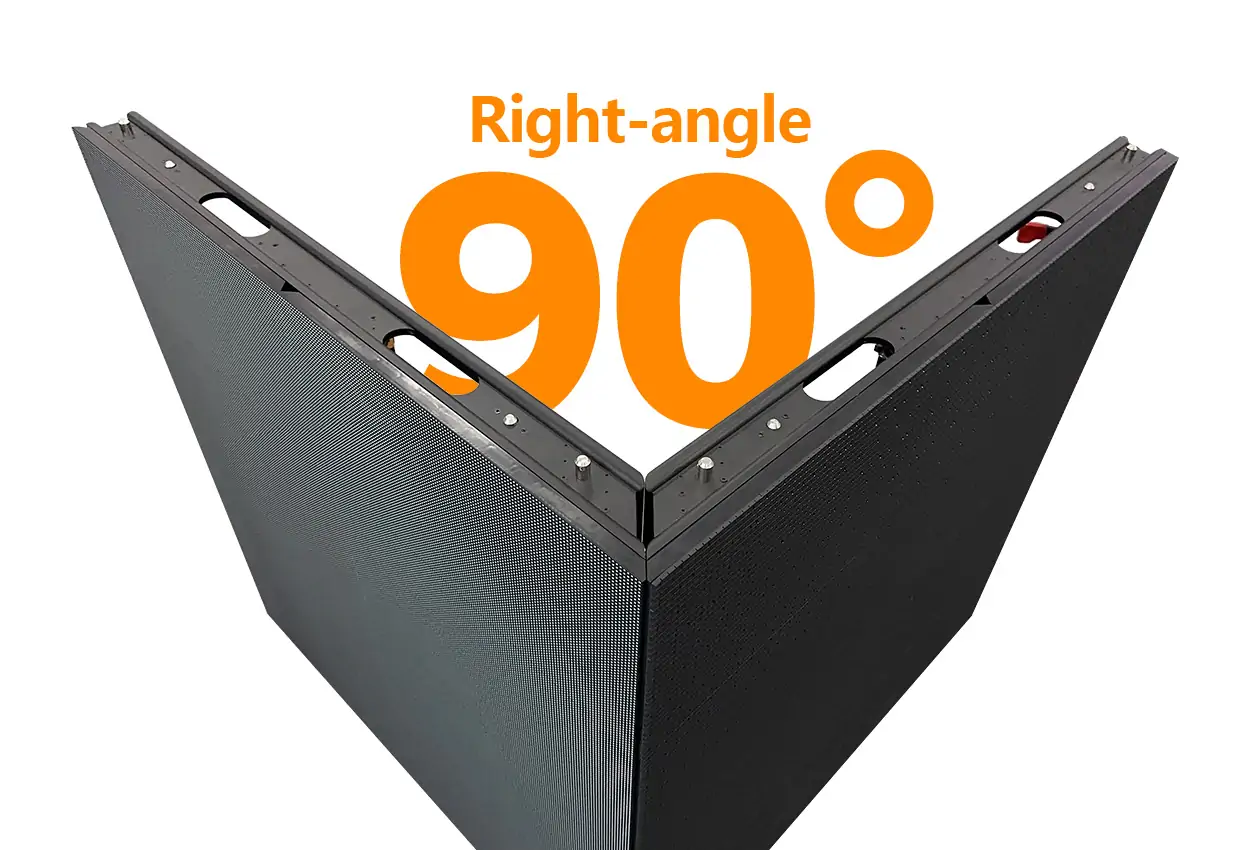

The 45° beveled box design enables seamless splicing at 90° right angles, ensuring high flatness and sealed edge assembly. It is ideal for irregularities and maintains a smooth and clear display.

The EA1000F1 outdoor LED cabinet can be seamlessly spliced onto 90° curved LED displays to create outstanding 3D visuals to engage your event attendees.

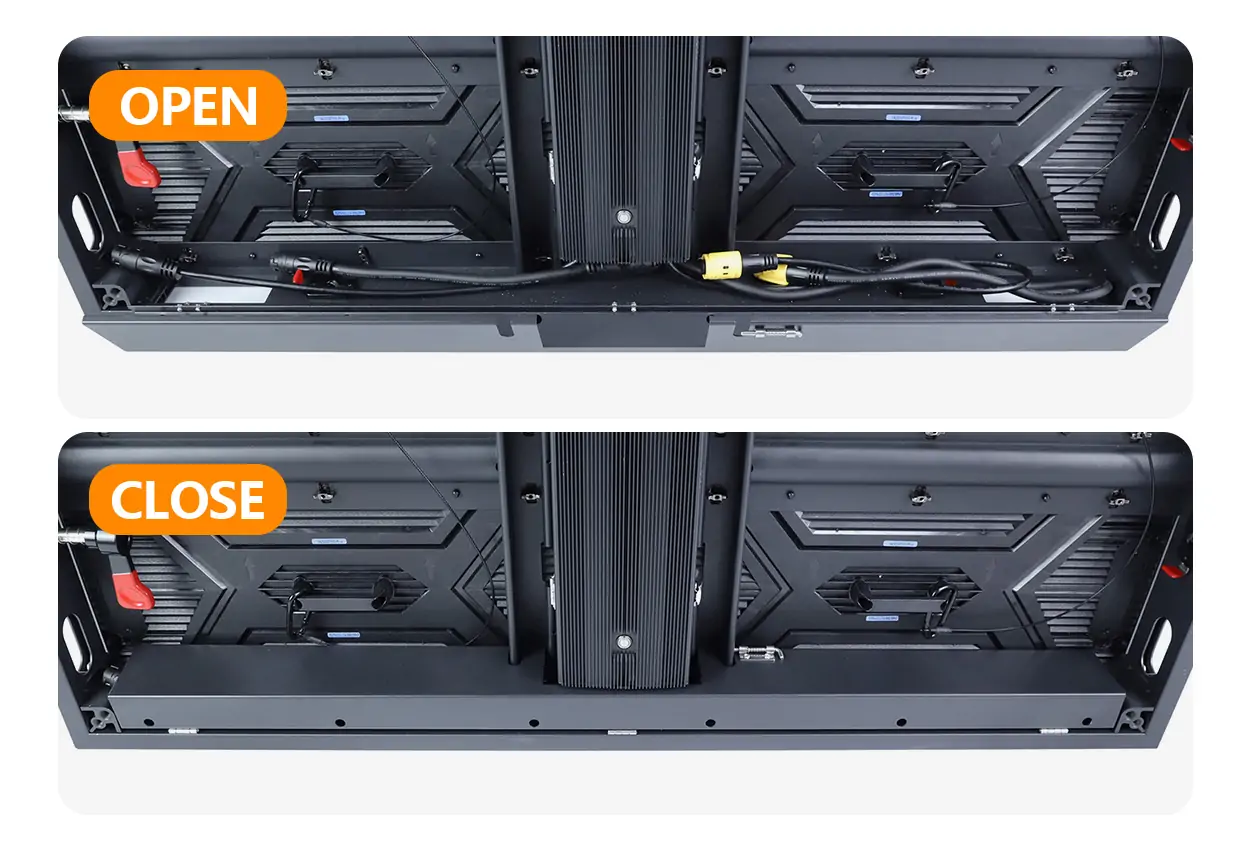

The EA1000F1 outdoor advertising LED screen utilizes a hardwired design where all power and data cables are integrated into the LED cabinet, greatly enhancing the overall aesthetics. Compared with traditional wired connections, it has only two ports for connection, simplifying the installation procedure.

Featuring 6000CD/㎡ high brightness and 3840Hz high refresh rate, EA1000F1 outdoor LED display board, with pixel pitch varying from P2.97 to P10.42, provides high contrast, high gray scale, and superior image quality in outdoor settings.

The EA1000F1 outdoor LED video wall features 4 stainless steel quick locks that allow you to quickly assemble the LED enclosure directly, saving installation time while maintaining overall stability and screen flatness.

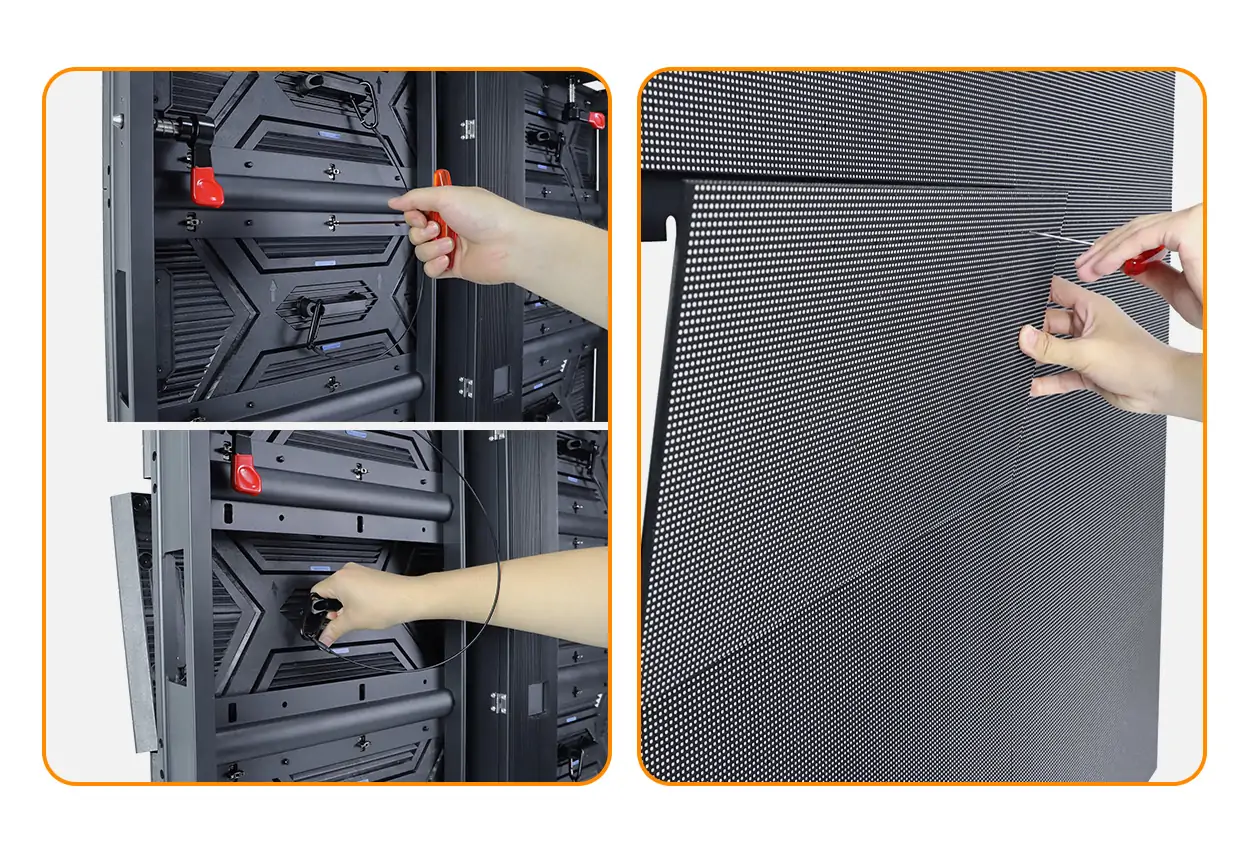

The EA1000F1 LED module is designed for front and back service and can be easily removed from the front or back using a vacuum chuck. This is an easy solution that saves time and labor costs.

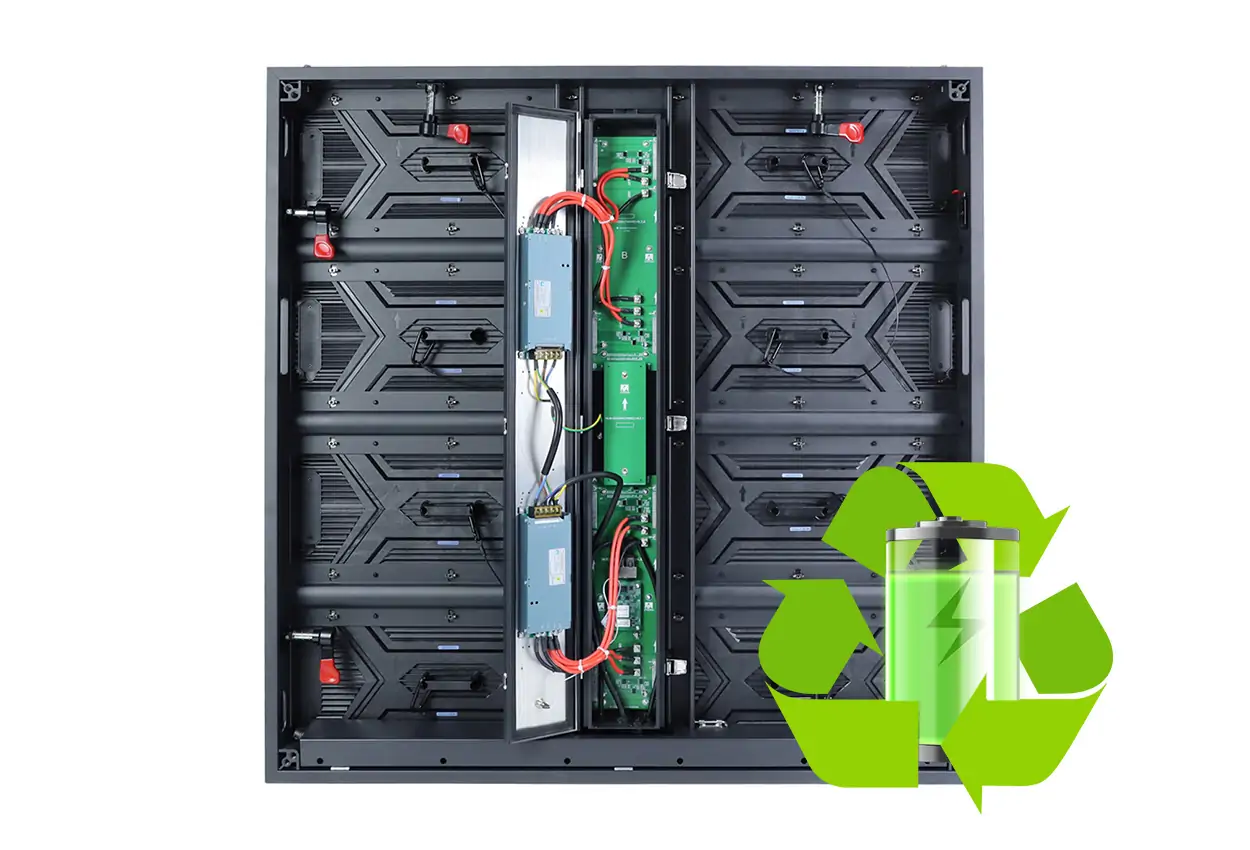

The EA1000F1 outdoor LED video wall uses common cathode technology to further optimize the power supply and reduce heat dissipation. Energy savings of up to 30%-50% can be achieved. This is in line with the concept of environmental protection.

EA1000F1 outdoor LED video wall is an ideal LED display solution for commercial complexes, landmark buildings, and outdoor advertising events, enhancing business value, promoting advertising corporations, and attracting more customers.
